2Pcs Hinge Drilling Locator – Cabinet Door Template Jig
2Pcs Hinge Drilling Locator – Cabinet Door Template Jig
Install Cabinet Hinges Perfectly — Every Time

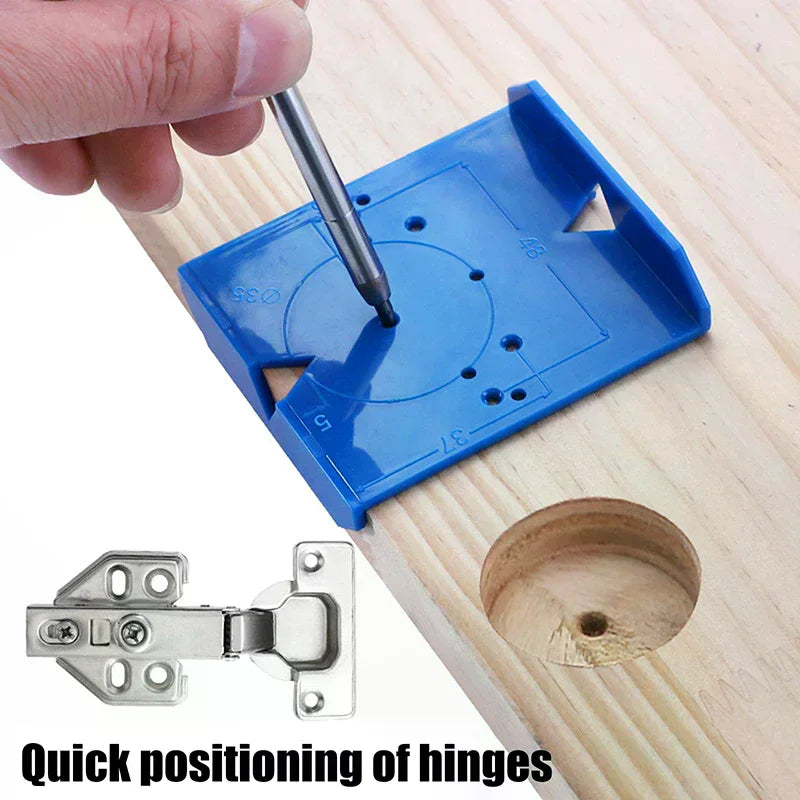

Say goodbye to misaligned cabinet doors. This 2-piece Hinge Drilling Locator Set is the must-have woodworking jig for DIYers and professionals who want fast, accurate hinge hole placement on furniture doors and cabinet panels. Made from durable ABS plastic, each guide is lightweight, easy to handle, and built to last through countless projects.
Why You'll Love This Hinge Hole Guide
- Precise Positioning: Built-in specification markings let you locate and mark base screw hole positions accurately every single time — no measuring tape gymnastics required.

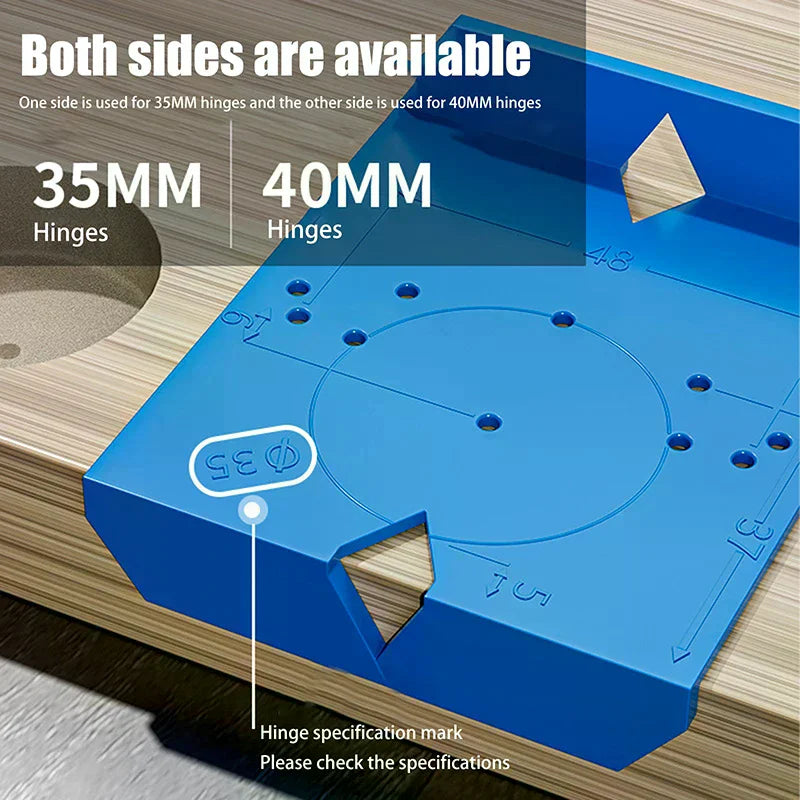

- Compatible with Standard Bits: Designed to work with 35 mm and 40 mm drill bits, covering the most common hinge cup sizes used in furniture and cabinetry.

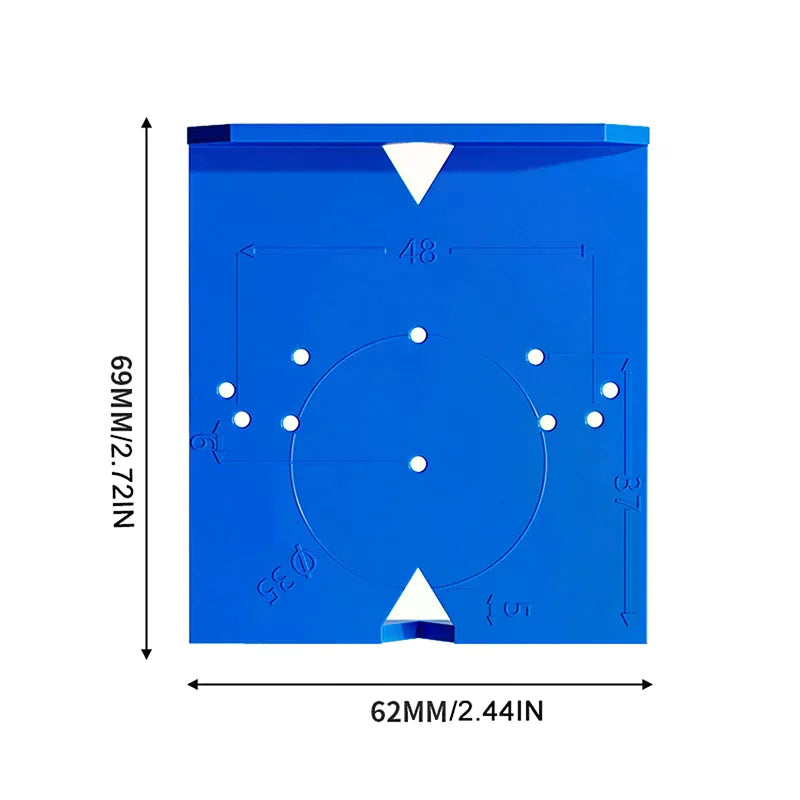

- Lightweight & Portable: Compact size (62 × 69 mm / 2.44 × 2.72 in) slips easily into a tool belt or toolbox — ready whenever you need it.
- ABS Plastic Construction: Tough, impact-resistant material that holds its shape under repeated use without cracking or warping.
- Great for Home DIY: Perfect for fitting kitchen cabinet doors, wardrobe panels, bathroom vanity cabinets, and more.
- Pack of 2: Two locators included so you can mark both boards simultaneously and speed up your workflow.
How to Use
- Determine the hinge position on the door and cabinet panel, then draw the centre connecting line across both boards.

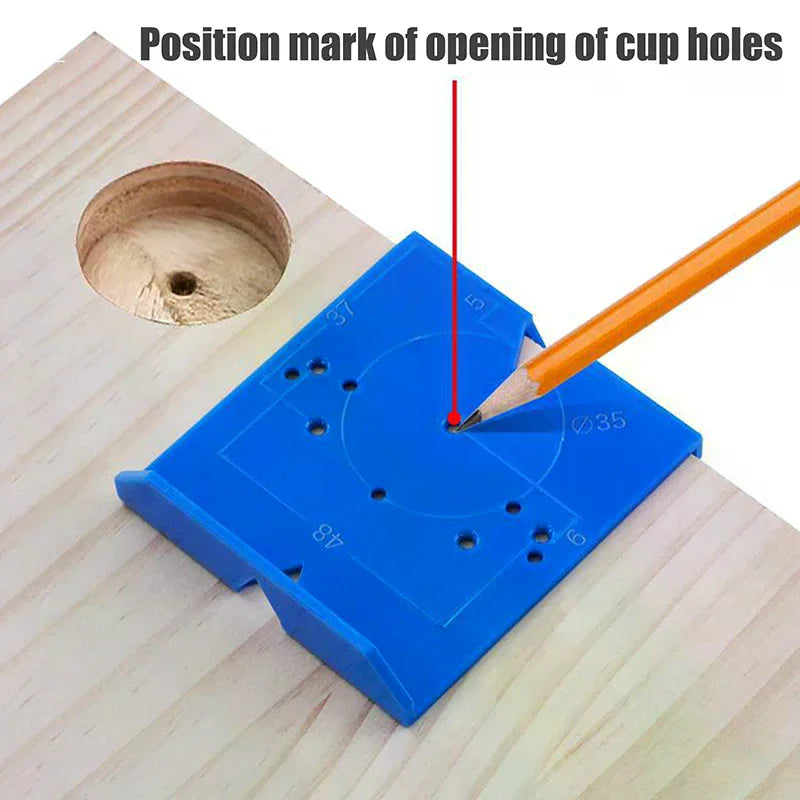

- Align the hinge locator to the line using the specification markings to identify base-screw hole positions and mark them clearly.
- Repeat on the cabinet panel board, marking all hole positions to match.
- Drill at the marked positions using a 35 mm or 40 mm drill bit, then install your hinges.
Specifications
| Material | ABS Plastic |
| Colour | Blue |
| Compatible Drill Bit Diameter | 35 mm / 40 mm |
| Dimensions | 62 × 69 mm (2.44 × 2.72 in) |
| Package Contents | 2 × Hinge Hole Drilling Locators |
| Country of Origin | Made in China |
Related Tools You May Like
- 3PCS Silicone Sealant Scraper Set – Multi-Functional Caulking & Grout Tools
- 1PC Multi-Use Faucet Bubbler Wrenches – 6 Sizes Sink Repair Spanner
- 4PCS Self-Adhesive Cabinet Door & Window Auxiliary Handles
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What drill bit sizes are compatible with this hinge drilling locator?
A: This hinge hole drilling guide is designed to work with standard 35 mm and 40 mm drill bits — the two most common sizes used for European-style concealed cabinet hinges.
Q: Can beginners use this hinge punching positioning ruler?
A: Absolutely! The built-in markings make it straightforward for DIY beginners and experienced woodworkers alike. Simply align the template, mark the hole positions, and drill — no advanced skills needed.
Q: Is this locator suitable for both cabinet doors and wardrobe panels?
A: Yes. The hinge drilling locator works with any furniture panel where a standard concealed hinge cup needs to be fitted, including kitchen cabinets, wardrobes, bathroom vanities, and more.
Q: Does the set include drill bits?
A: The package includes 2 × Hinge Hole Drilling Locator templates only. Compatible 35 mm or 40 mm drill bits are sold separately.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
