5.8G Dual Antenna RX5808 Receiver Module for SKYZONE FPV

$373.32 $458.41

5.8G Dual Antenna RX5808 Receiver Module for SKYZONE FPV Goggles

Upgrade your FPV flying experience with this compact 5.8GHz Dual Antenna RX5808 Receiver Module, purpose-built for SKYZONE FPV goggles. Featuring an intuitive menu-driven interface, spectrum scanning across a wide frequency range, and automatic channel search, this receiver module delivers reliable video signal performance in a sturdy metal housing.

Key Features

Dual Antenna Design: Improved signal diversity reception for a more stable FPV video feed.
Wide Spectrum Scanning: Scans 5.3G–5.9G or 4.9G–6.1G frequency ranges, displaying channel strength in colour-coded charts for quick channel selection.

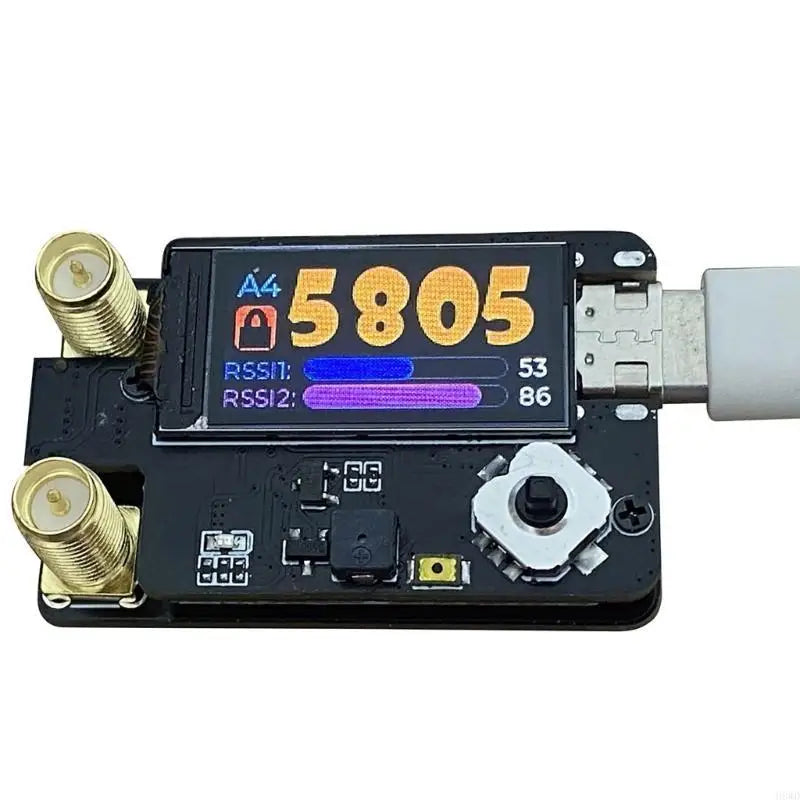

Automatic Channel Search: Channel scan automatically locks onto the strongest available frequency and displays it in the upper-right corner of the interface.
Manual Channel Lock: Long-press the OK button on the main interface to lock/unlock manual channel selection; use directional buttons to fine-tune frequency.
Three-Section Menu: Receiver, Settings, and About — easily navigate with up/down buttons; press OK to enter submenus and left to return.
RSSI Signal Calibration: Built-in signal calibration utility to fine-tune RSSI accuracy; results are saved automatically upon successful calibration.

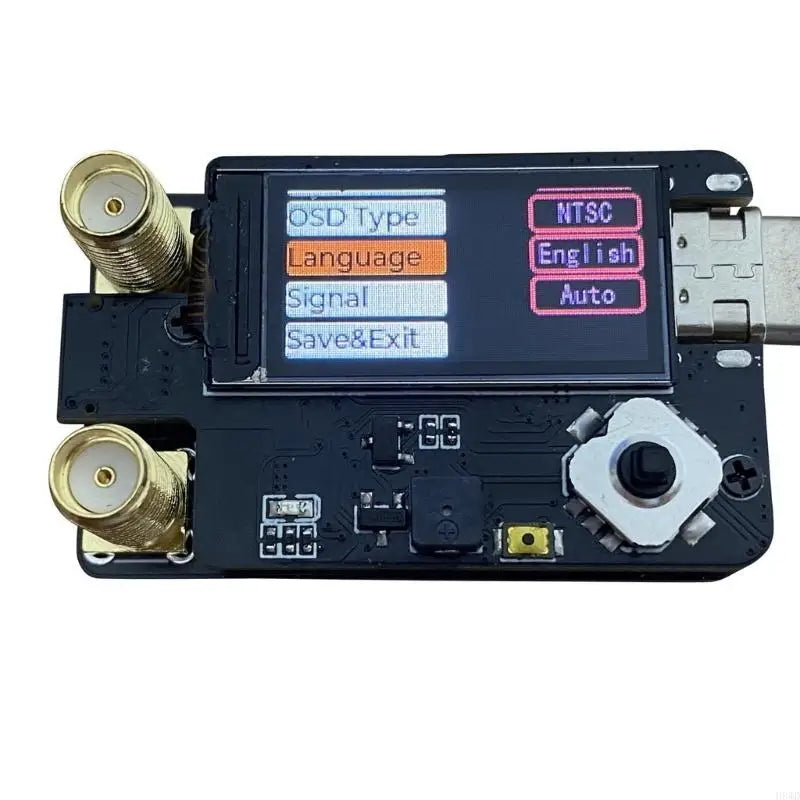

Customisable Settings: Adjust backlight intensity, fan speed, startup animations, buzzer on/off, OSD format, system language, and output source directly from the settings menu.
Firmware Upgradeable: Update firmware conveniently via the Type-C USB interface for ongoing compatibility and improvements.

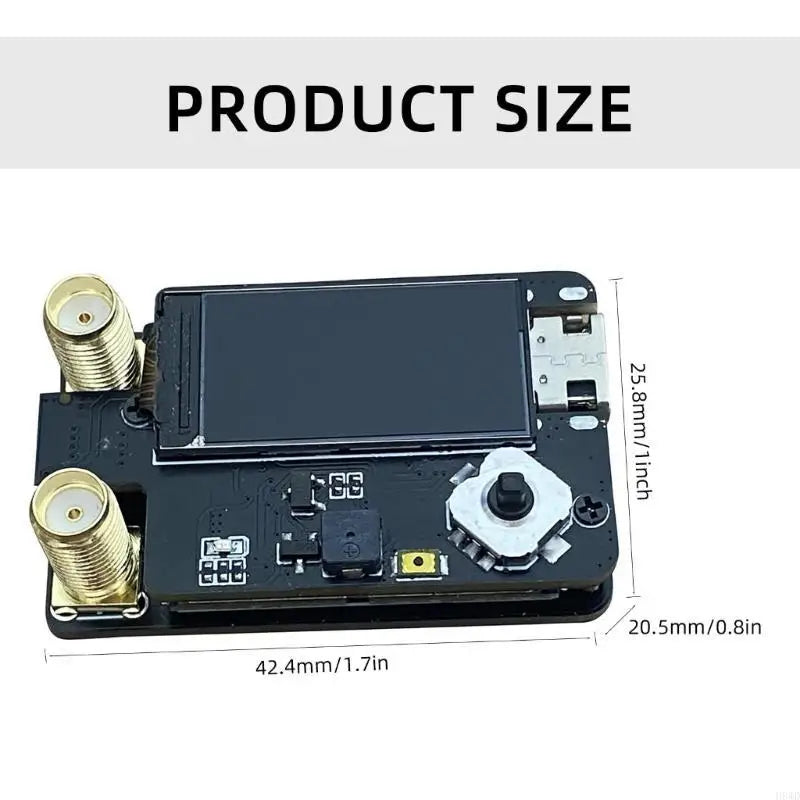

Compact Metal Build: Rugged metal construction measuring approximately 42.4 × 25.8 × 20.5 mm — lightweight yet durable for FPV goggle integration.
Made in Mainland China.

Specifications

Frequency	5.8 GHz
Model	RX5808 Dual Antenna Receiver Module
Material	Metal
Dimensions	Approx. 42.4 × 25.8 × 20.5 mm / 1.67 × 1.02 × 0.81 inch
Firmware Update	Type-C USB Interface

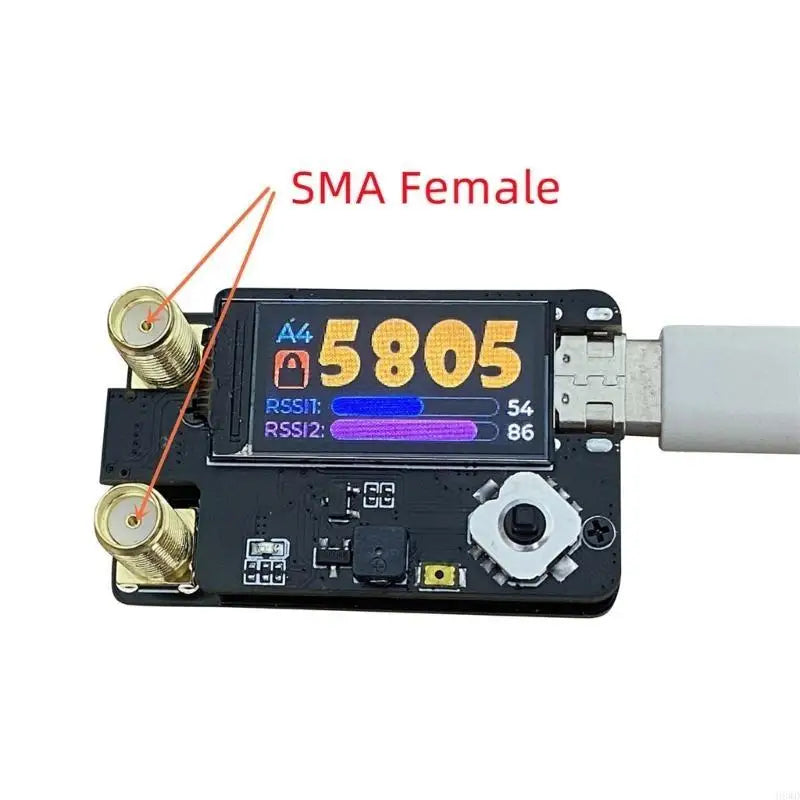

Connector Options	RP-SMA Female (Package A) / SMA Female (Package B)

Package Contents

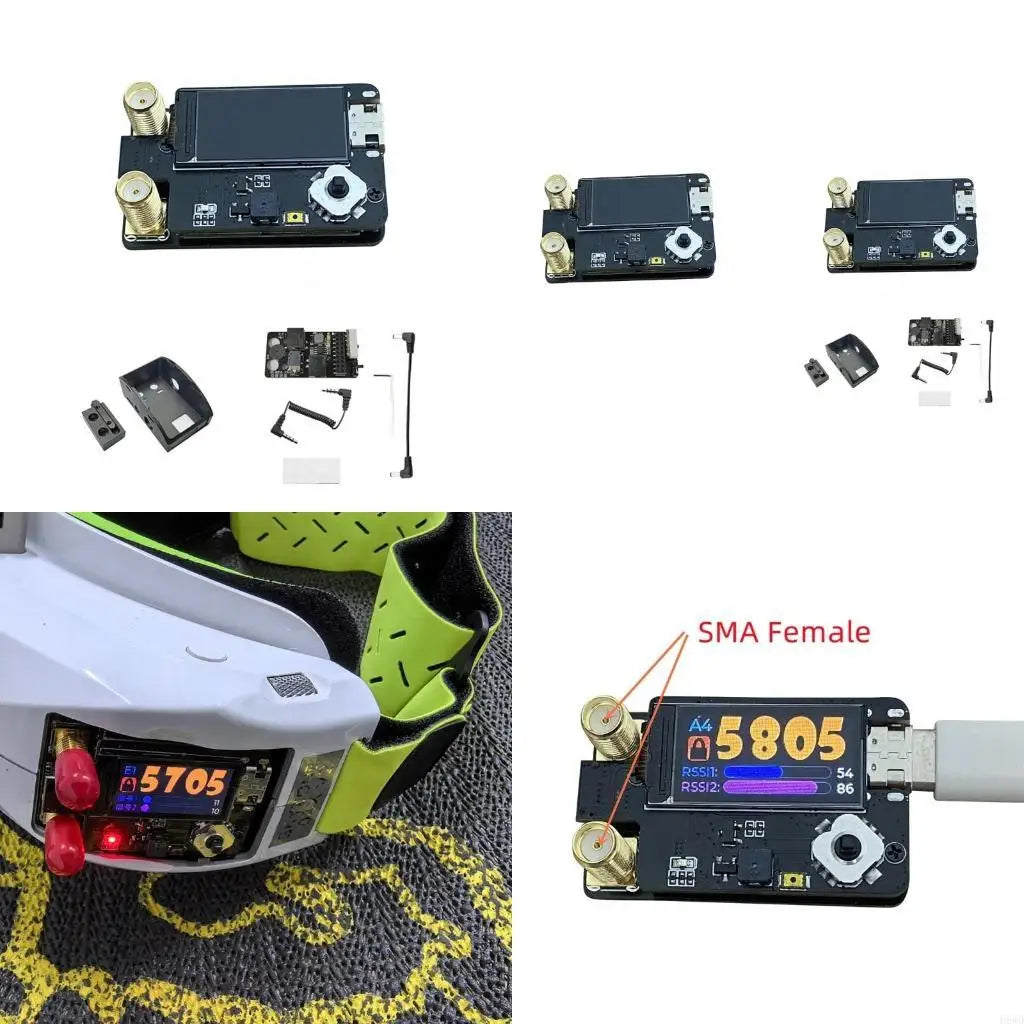

Package A: 1× RX5808 5.8G Dual Antenna Receiver Module (RP-SMA Female Connector)
Package B: 1× RX5808 5.8G Dual Antenna Receiver Module (SMA Female Connector)

Frequently Asked Questions

Q: Which FPV goggles is this 5.8G dual antenna receiver module compatible with?

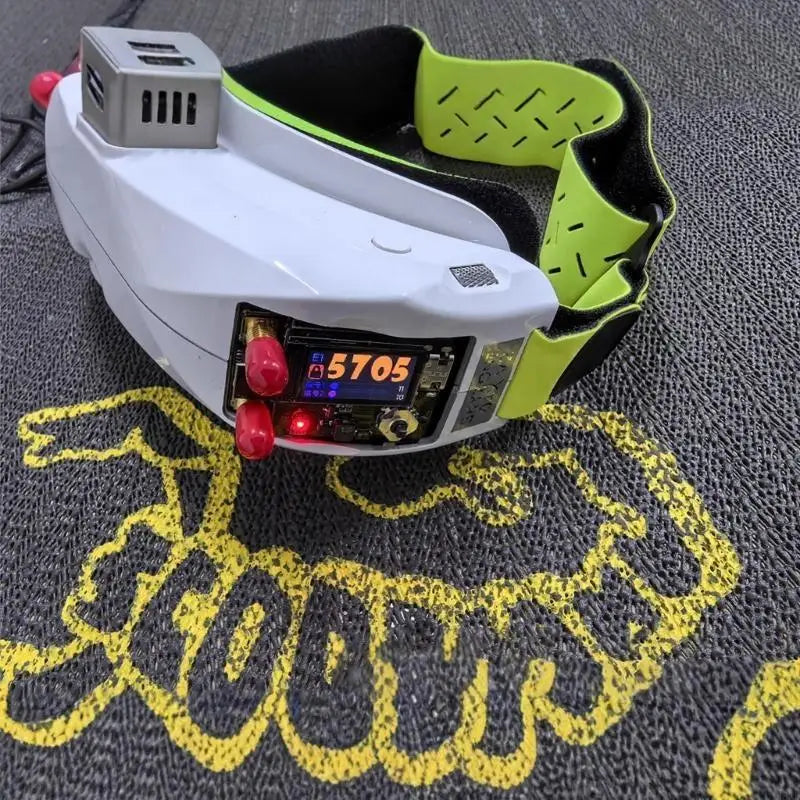

A: This RX5808 5.8G dual antenna receiver module is specifically designed for use with SKYZONE FPV goggles that support the RX5808 module format. Please verify your SKYZONE goggle model supports RX5808 modules before purchasing.

Q: What is the difference between Package A (RP-SMA) and Package B (SMA)?

A: The two packages differ only in their antenna connector type. Package A uses an RP-SMA Female connector, while Package B uses a standard SMA Female connector. Choose the package that matches the antenna connector standard used by your existing antennas or SKYZONE goggles setup.

Q: How do I update the firmware on this receiver module?

A: Firmware updates are performed via the built-in Type-C USB interface. Simply connect the module to a computer using a Type-C USB cable and follow the firmware update instructions provided by the manufacturer or community resources for this RX5808 module.

Q: How does the automatic channel scan work?

A: When you initiate a channel scan, the module automatically sweeps the available 5.8G frequency range, identifies the channel with the strongest current signal, and switches to that channel automatically. The selected channel is displayed in the upper-right corner of the interface for easy reference.
