Keep your low-voltage projects safe and running smoothly with this compact 5A Electronic Circuit Breaker PCB Module. Designed for DC circuits operating between 5V and 60V, this resettable breaker board automatically cuts output when a short circuit or overcurrent condition is detected — then recovers on its own, so there's no need to manually reset a mechanical breaker. The integrated LED indicators let you know at a glance exactly what's happening with your circuit.
Made in Mainland China.
Key Features
- Resettable Fault Response: Automatically cuts output on short circuit detection, handles short-duration overloads, then self-recovers — keeping your project running without manual intervention.

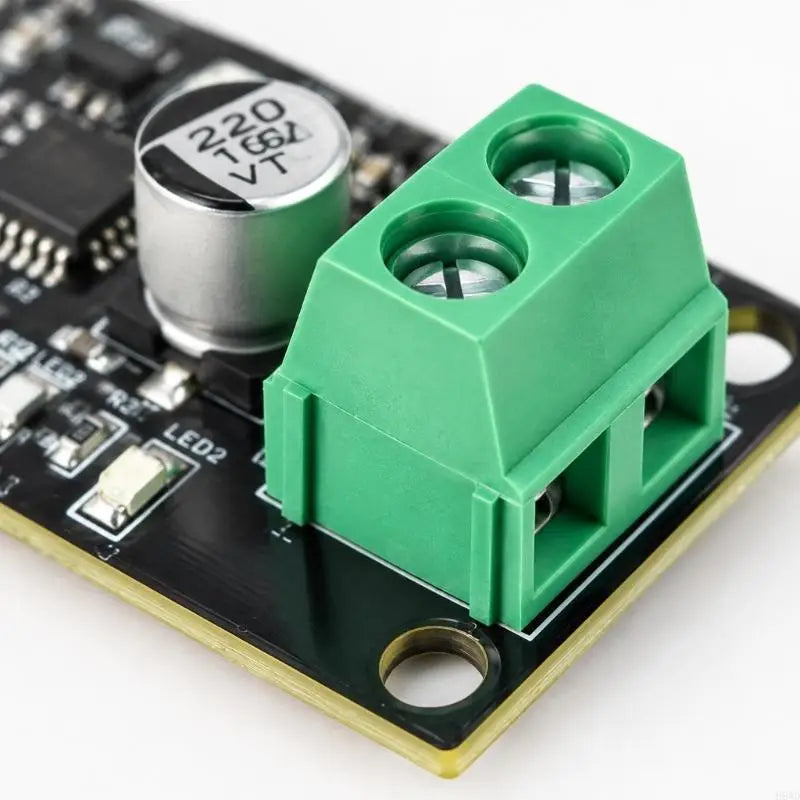

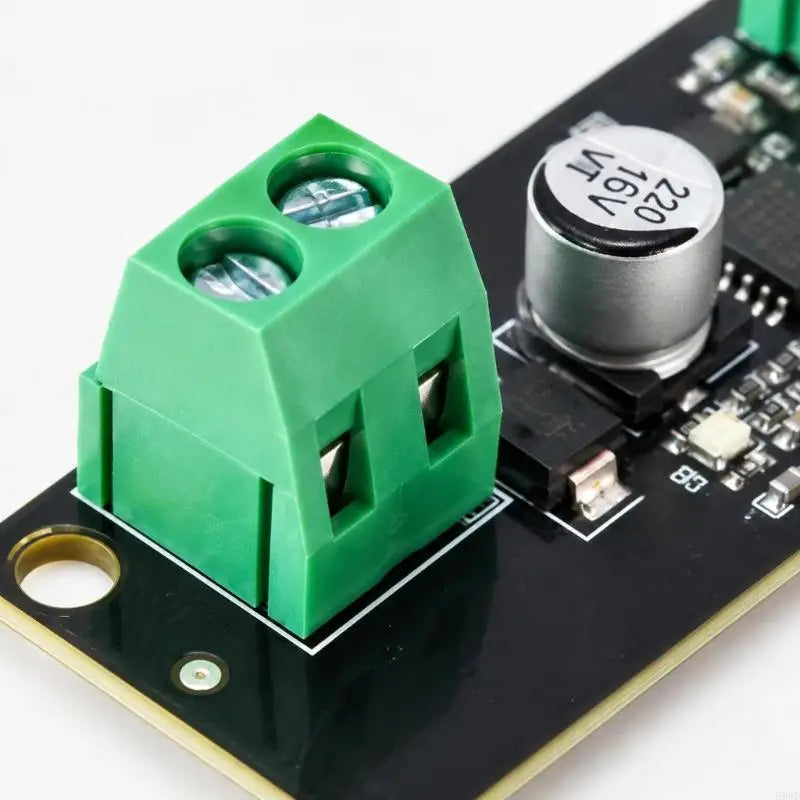

- Screw Terminal Connections: Input and output screw connectors keep wiring neat and secure, making installation quick and reliable for both prototyping and permanent installations.
- Four Corner Mounting Holes: Integration-ready PCB layout with mounting holes for easy placement inside an equipment enclosure or project box.
- Defined Electrical Parameters: Supports 5–60V DC input with 5A continuous rated current. Low-resistance design minimises energy loss during normal operation.
-
Three-State LED Indicator System:
- Blue: Normal operation
- Red: Short-circuit cutoff active
- Red + Flashing Blue: Output overcurrent condition
- Versatile Use Cases: Ideal for small battery packs, bench power supplies, microcontroller development boards, model equipment, low-voltage vehicle electronics, and electronics repair workbenches.
Specifications
| Component | PCB Module (ESP Series) |
| Input Voltage | 5–60V DC |
| Rated Current | 5A continuous |
| Operating Temperature | -20°C to 60°C |

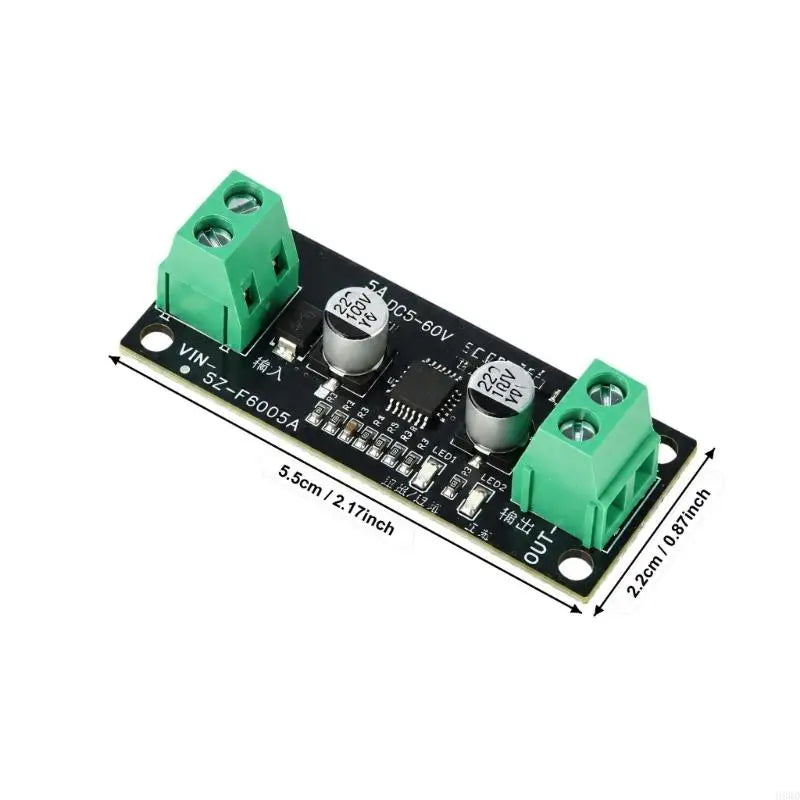

| Dimensions | Approx. 5.5 × 2.2 cm (2.17 × 0.87 in) |
| Connectors | Input & output screw terminals |
| Country of Origin | Mainland China |
Package Includes
- 1 × Electronic Circuit Breaker Cutoff Module
Notes
- Please allow ±1–2 cm measurement tolerance due to manual measurement.
- Colours may vary slightly due to monitor differences.
