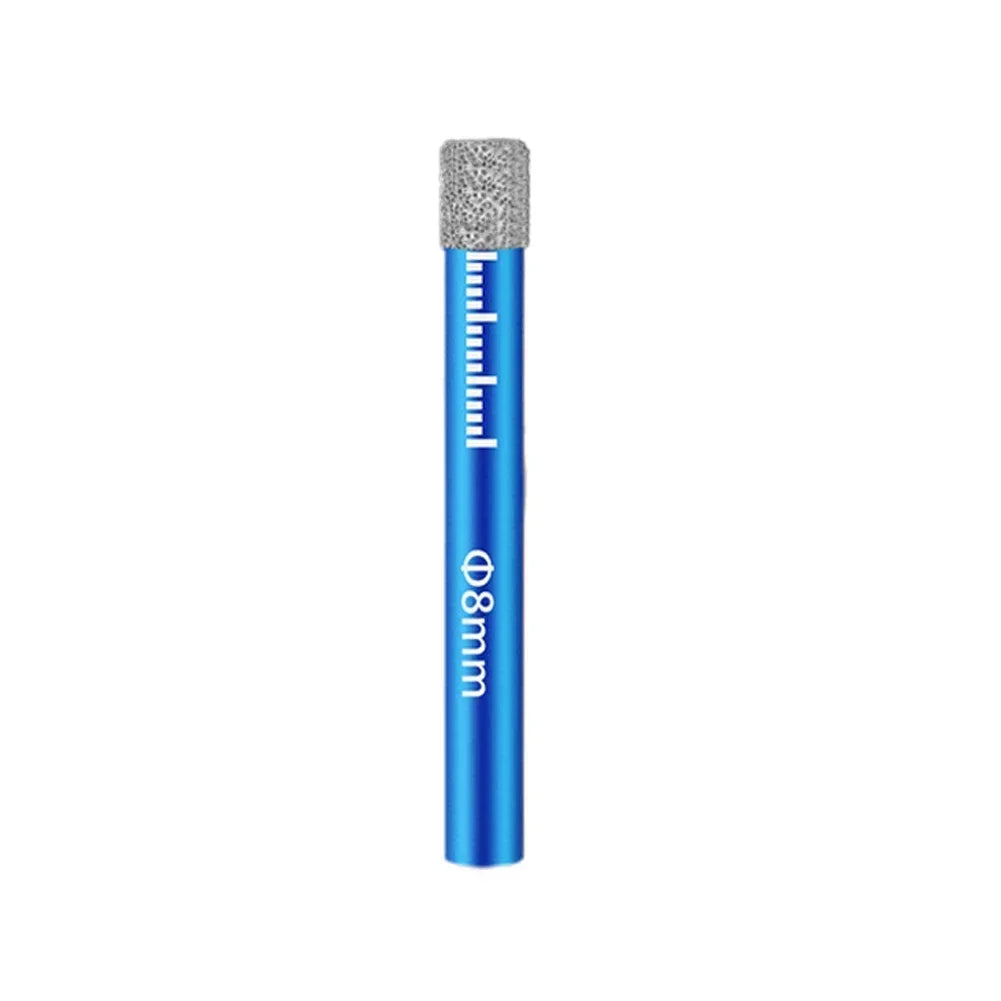

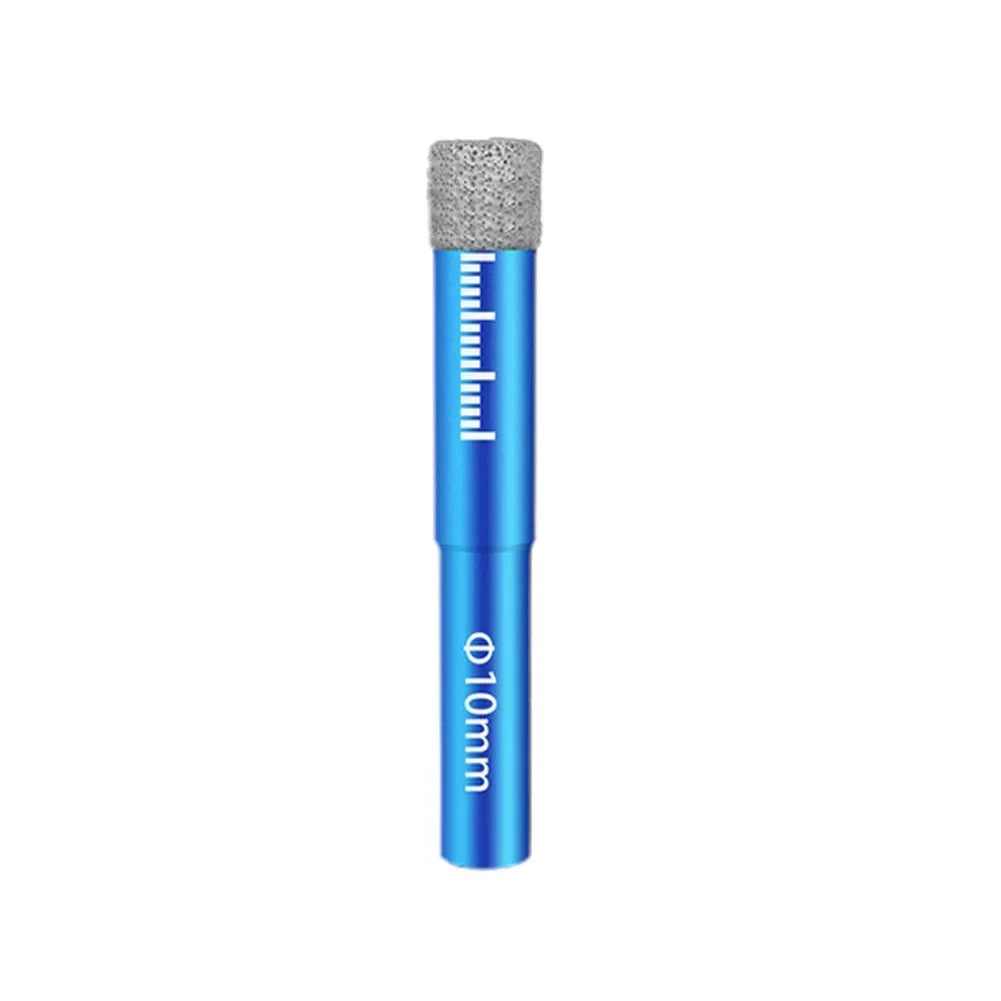

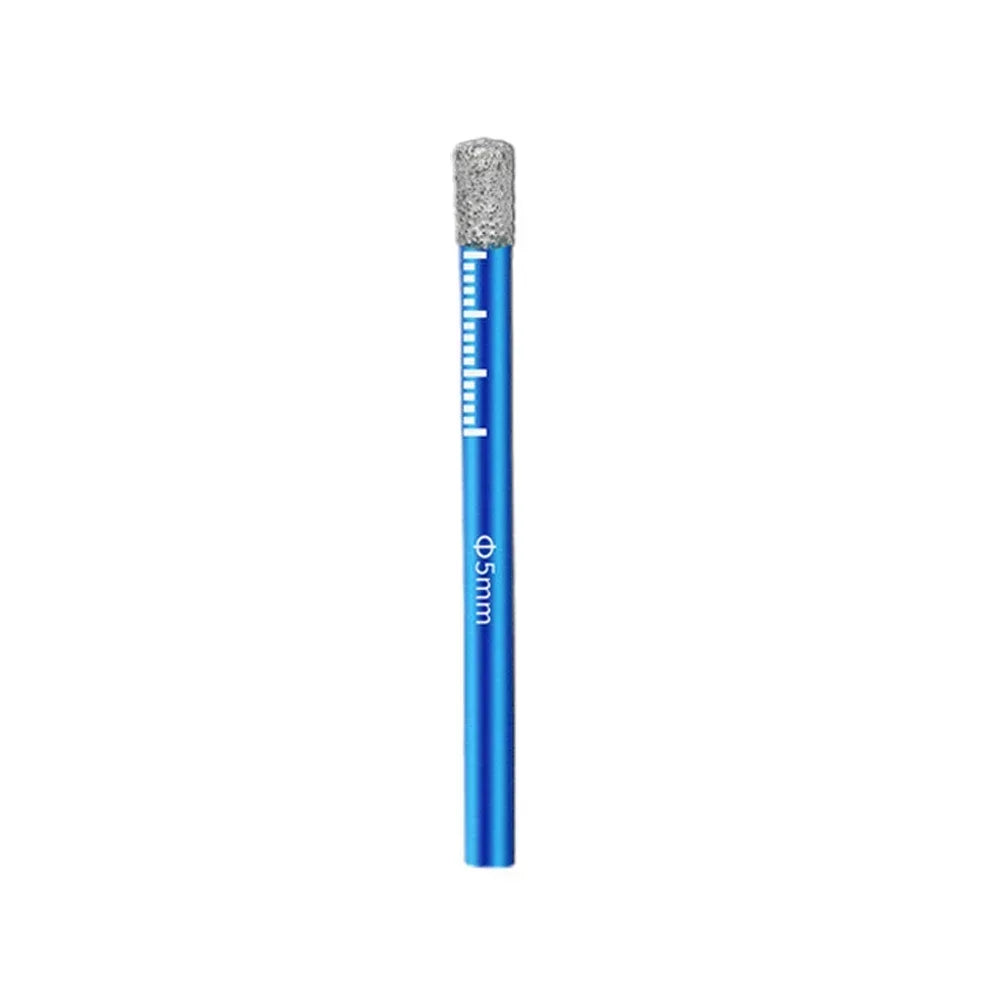

Brazed Drill Bits for Tile Granite Ceramic Glass – 5mm to 16mm
Brazed Drill Bits for Tile Granite Ceramic Glass – 5mm to 16mm
Brazed Diamond Drill Bits – Clean, Precise Holes in Hard Surfaces

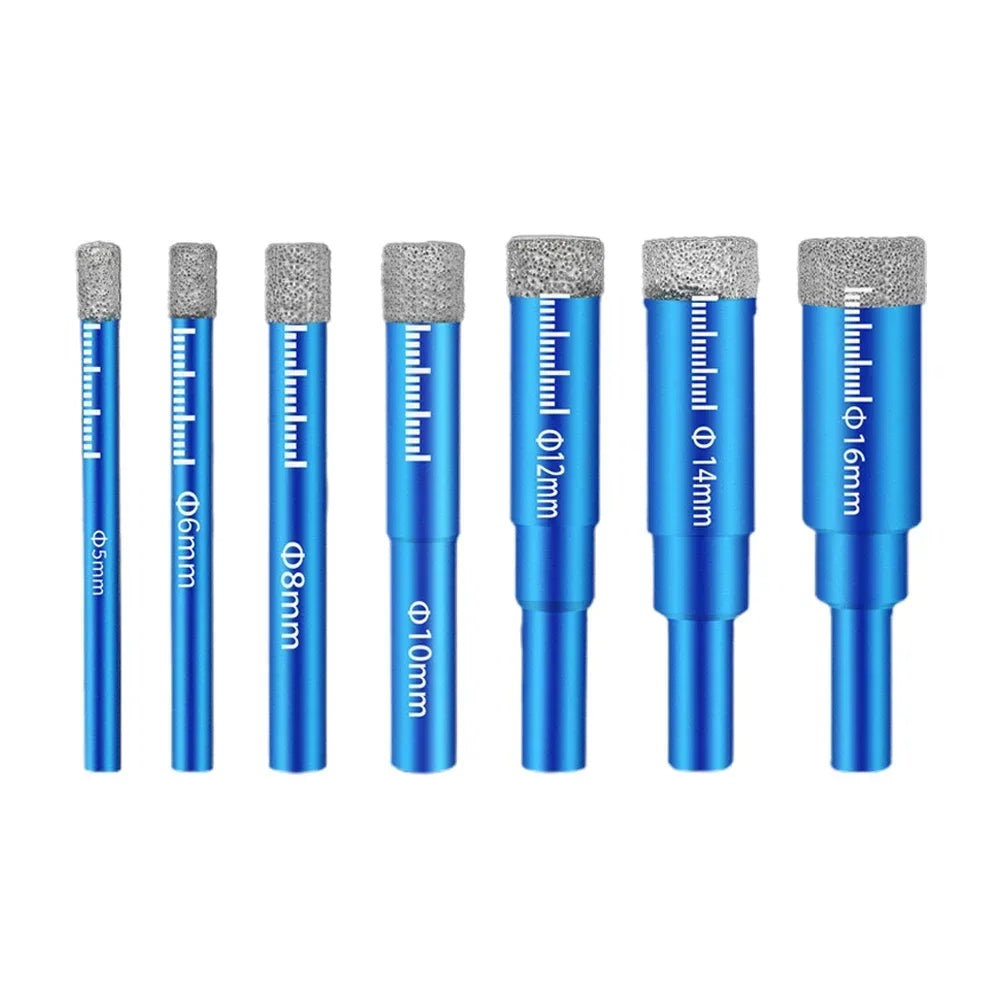

Whether you're tackling a home renovation or a professional tiling job, these brazed dry drill bits are engineered to cut through the toughest hard surfaces with speed and accuracy. Available in sizes 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, and 16mm, this versatile set covers virtually every drilling task on granite, brick, ceramic tile, porcelain, marble, slate, and glass.
Key Features
- Brazed construction: High-quality brazed material ensures maximum durability and a long service life, even on demanding hard-surface materials.
- Integrated lubricant / cooling wax: Built-in cooling wax means no additional lubricant is needed for dry drilling — keeping your workspace cleaner and your workflow faster.
- Dual-use flexibility: Use dry by tilting the drill to 45° for positioning, then upright and shake for clean drilling. When the cooling wax is spent, simply add water for continued performance.
- Easy size identification: Each bit has the diameter printed directly on the body — no guessing, no mix-ups.
- Round shank design: Standard round shank fits most common power drills for easy, secure chucking.
- Colour: Blue

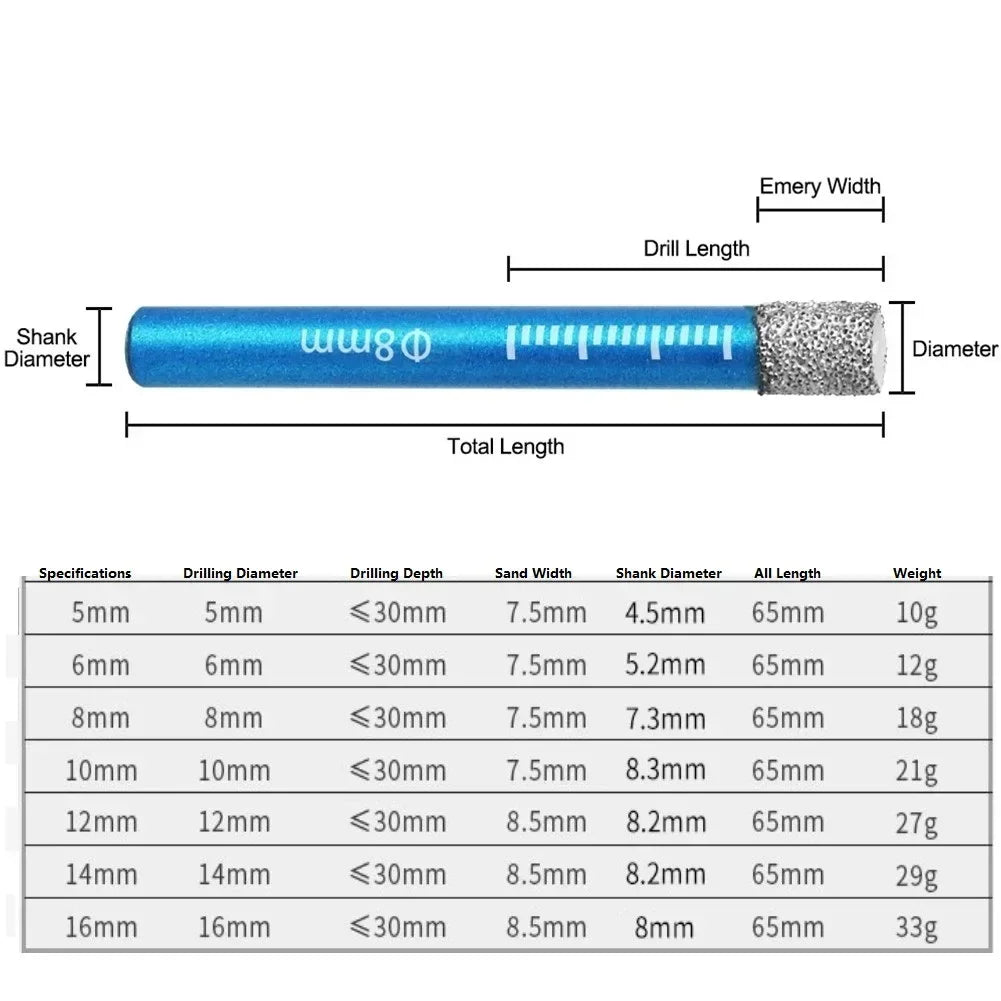

Specifications
| Material | Brazed |
| Available Diameters | 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm |
| Shank Type | Round |
| Colour | Blue |
| Quantity | 1 pc per order |
| Origin | Made in China |
Compatible Surfaces
- Ceramic & porcelain tile
- Granite & marble
- Slate
- Brick & masonry
- Glass
How to Use
- Select the correct diameter bit for your project and secure it firmly in your drill chuck.
- Dry drilling: Tilt the drill to approximately 45° to position the bit on your mark, then bring it upright and apply steady, moderate pressure while drilling.
- Wet drilling (when cooling wax is depleted): Apply water to the drilling area during use to keep the bit cool and extend its lifespan.
- Use consistent, steady pressure — avoid forcing the bit — for the cleanest cuts.
Package Contents
- 1 × Brazed Drill Bit (select your preferred size)
Notes
- Screen colour settings may cause slight colour variations compared to the actual product.
- Please allow for minor measurement tolerances of ±1mm.
You May Also Like
Looking for other great DIY and workshop products? Check out these picks from our store:
- B&U 29mm Sinking Minnow Jerkbait Lure – Bass Trout Pike
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: Can these brazed drill bits be used without water on ceramic tile?
A: Yes! These drill bits feature an integrated cooling wax that enables dry drilling on ceramic tile, porcelain, granite, and other hard surfaces. Simply tilt the drill to 45° to position, then drill upright. Once the cooling wax is spent, switch to wet drilling by applying water to the surface.
Q: What sizes are available for these diamond drill bits?
A: These brazed drill bits are available in seven sizes: 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, and 16mm. Each is sold individually, so you can choose exactly the diameter you need for your specific drilling task.
Q: What materials can these drill bits cut through?
A: These brazed drill bits are designed for hard, dense surfaces including ceramic and porcelain tile, granite, marble, slate, brick, and glass. They are not intended for use on wood or soft metals.
Q: Will these bits fit my standard power drill?
A: Yes. The round shank design is compatible with most standard power drills. Simply secure the bit firmly in your drill chuck before use.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
