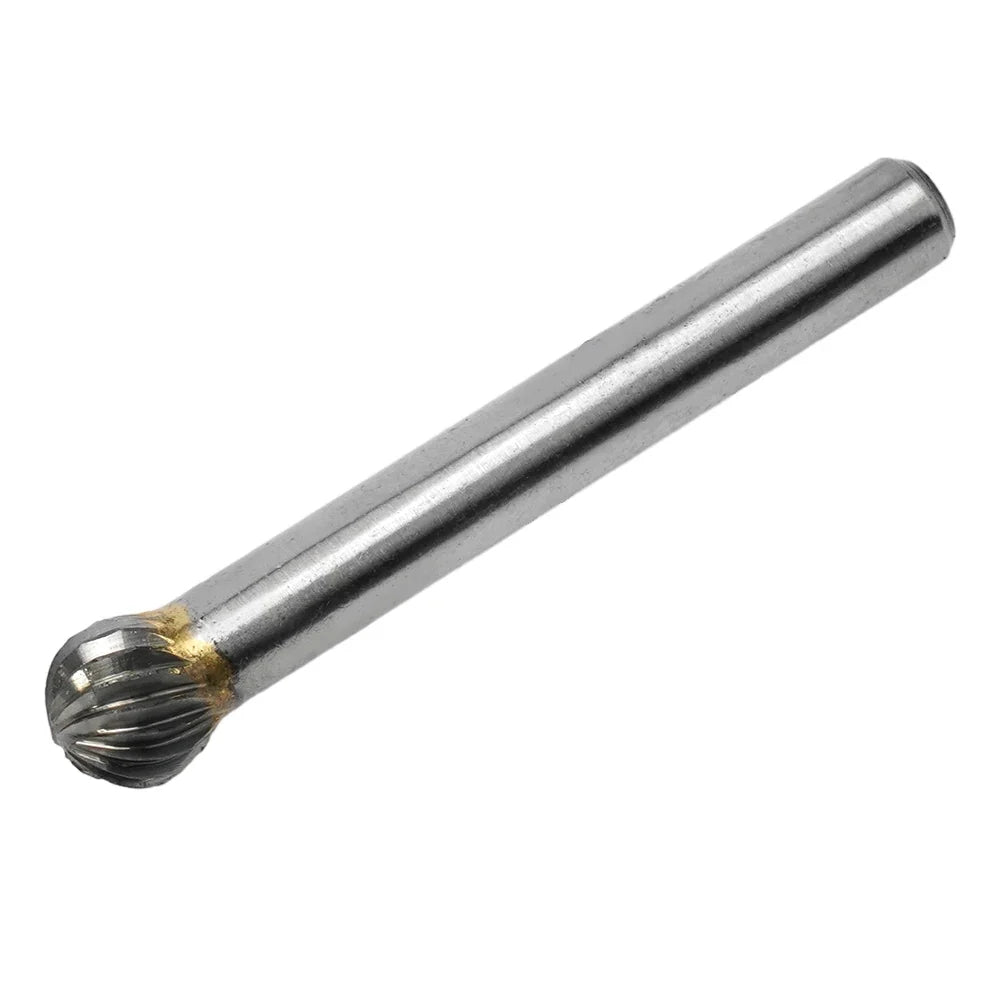

DAZZLEEX Carbide Ball Head Rotary Burr – Precision Die Grinder Bit
Take your metalworking, carving, and milling projects to the next level with the DAZZLEEX Carbide Ball Head Rotary Burr. Engineered from premium tungsten carbide, this single-cut, top-cut rotary burr delivers exceptional material removal rates, ultra-fine surface finishes, and outstanding longevity — whether you're shaping hard metals or carving intricate designs in marble and jade.
Why Choose This Rotary Burr?
- Handles Hardness Up to HRC70 – Confidently work on cast iron, cast steel, bearing steel, high-carbon steel, chrome-nickel alloy, bronze, brass, ceramic tile, marble, jade, and bone.
- Outstanding Efficiency – Processing speed is several times faster than a standard file and up to 10× faster than small grinding wheel shanks, saving you significant time on every job.
- Exceptional Durability – Carbide construction lasts up to 10× longer than high-speed steel cutting tools and up to 200× longer than small grinding wheels, giving you far more cuts per bit.

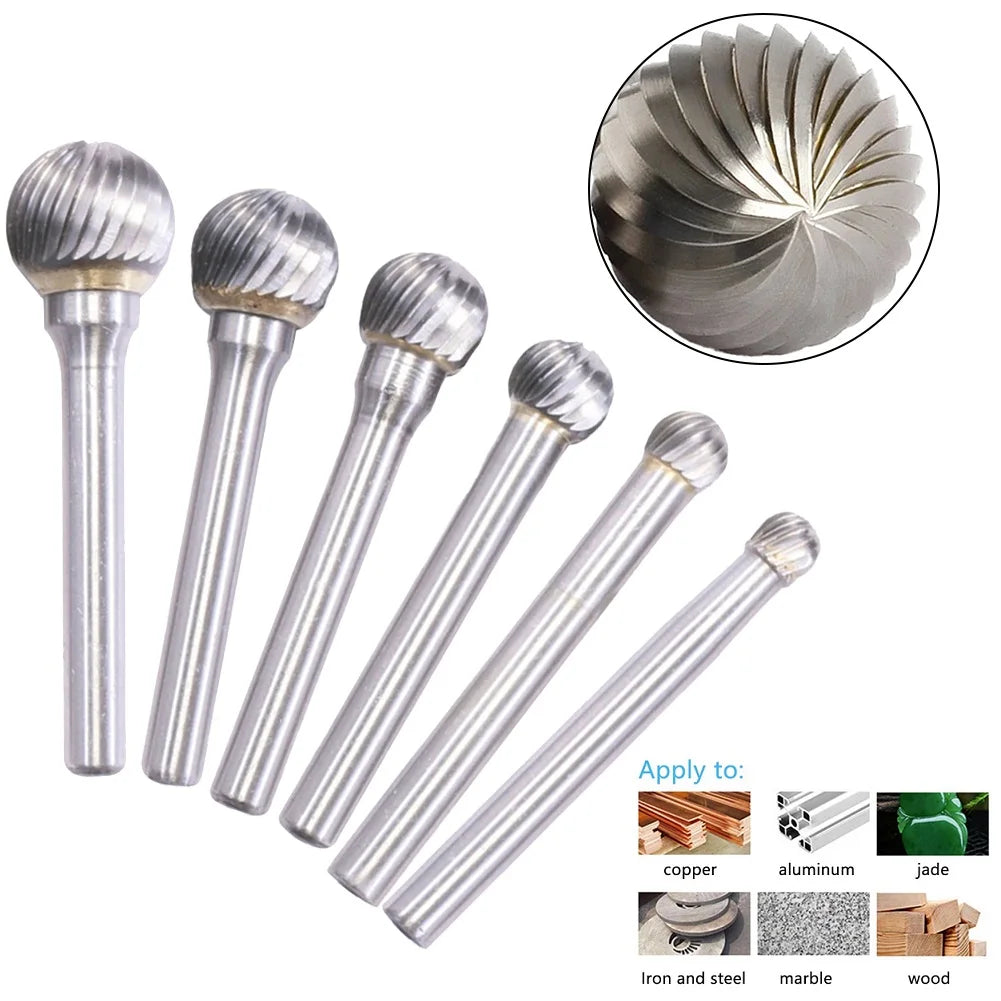

- Superior Surface Finish – Single-cut flute geometry produces smooth, high-quality finishes ideal for mold cavities and precision milling work.
- No Contamination – Cleaner operation compared to traditional grinding wheels — no residue or abrasive particle scatter.
- Safe & Easy to Use – Reduces operator fatigue and improves overall working conditions. Compatible with electric and pneumatic die grinders operating at 6,000–50,000 RPM.
- Versatile Replacement – Can replace shank-mounted small grinding wheels in a wide range of grinding and finishing applications.

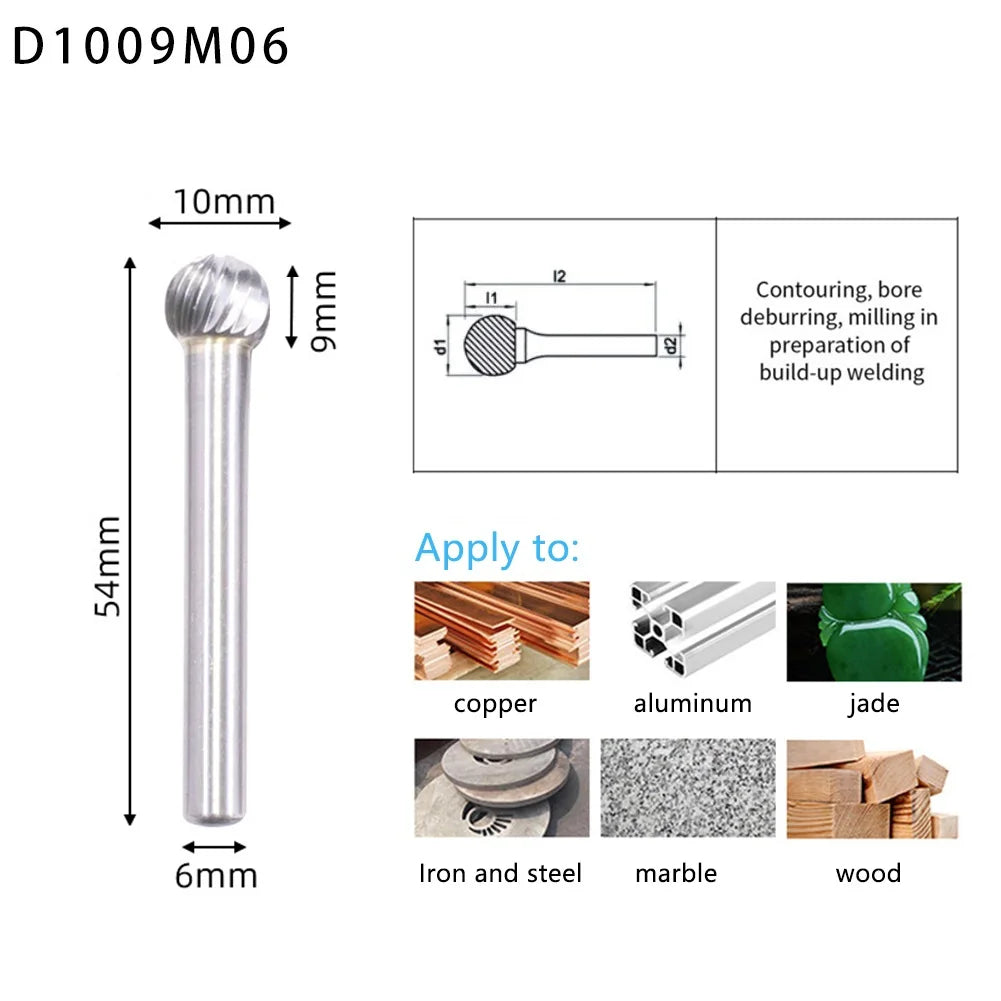

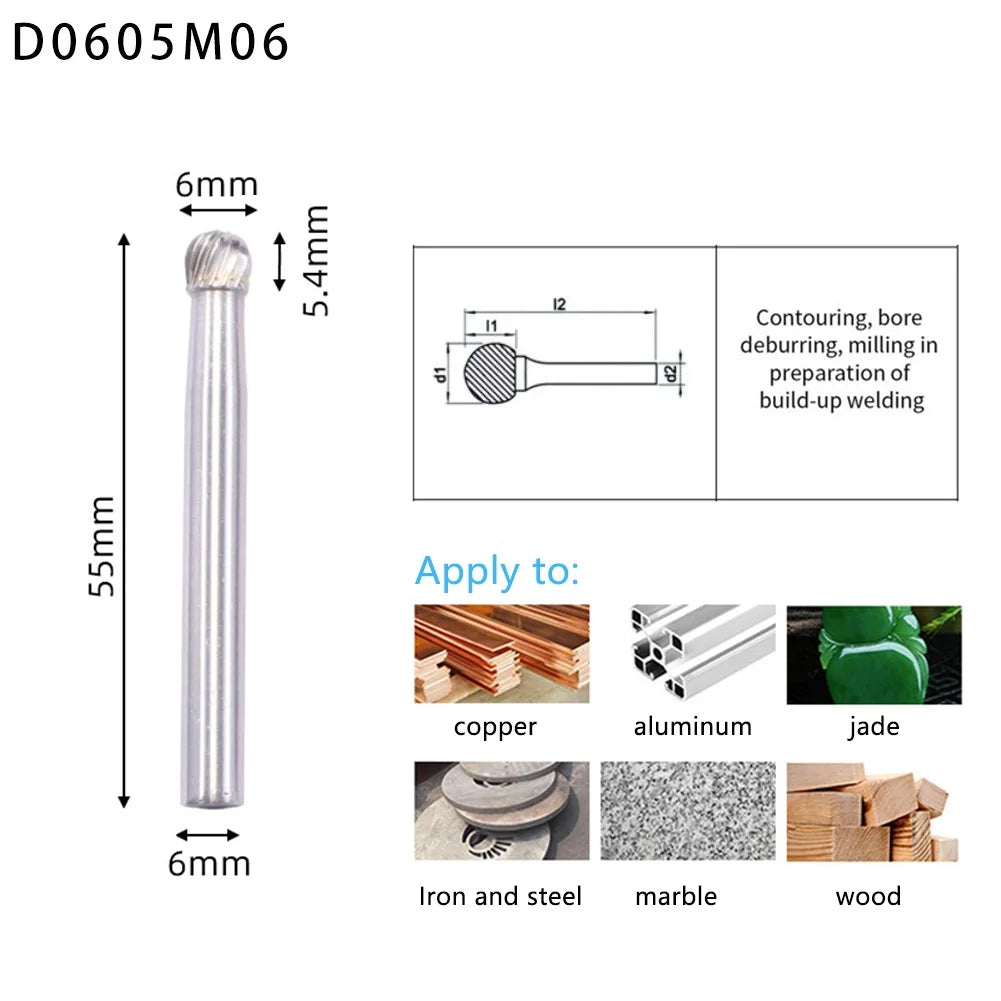

Specifications
| Type | Rotary Burr – Ball Head (Type D) |
| Material | Tungsten Carbide |
| Color | Silver |
| Flute Style | Single Cut |
| Top Style | Top Cut |
| Compatible Speed | 6,000 – 50,000 RPM |
| Quantity | 1 Piece |
| Country of Origin | Made in Mainland China |

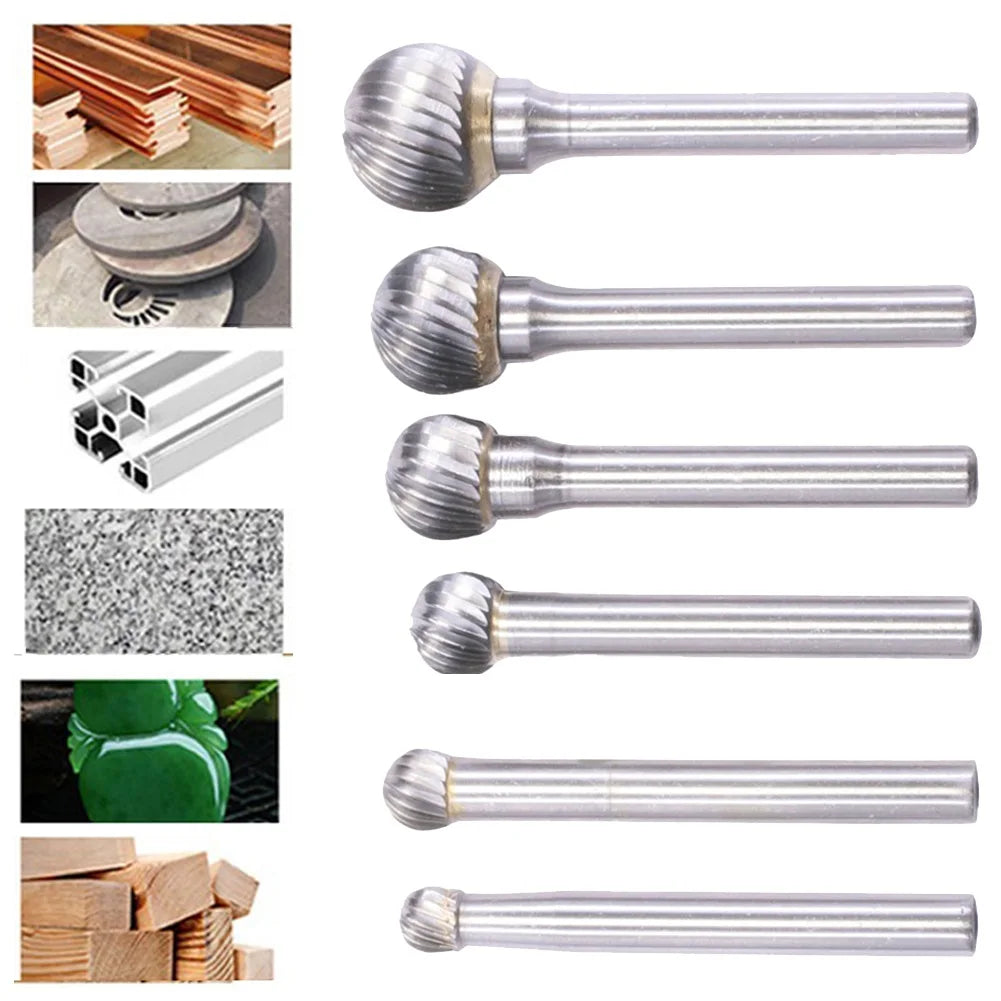

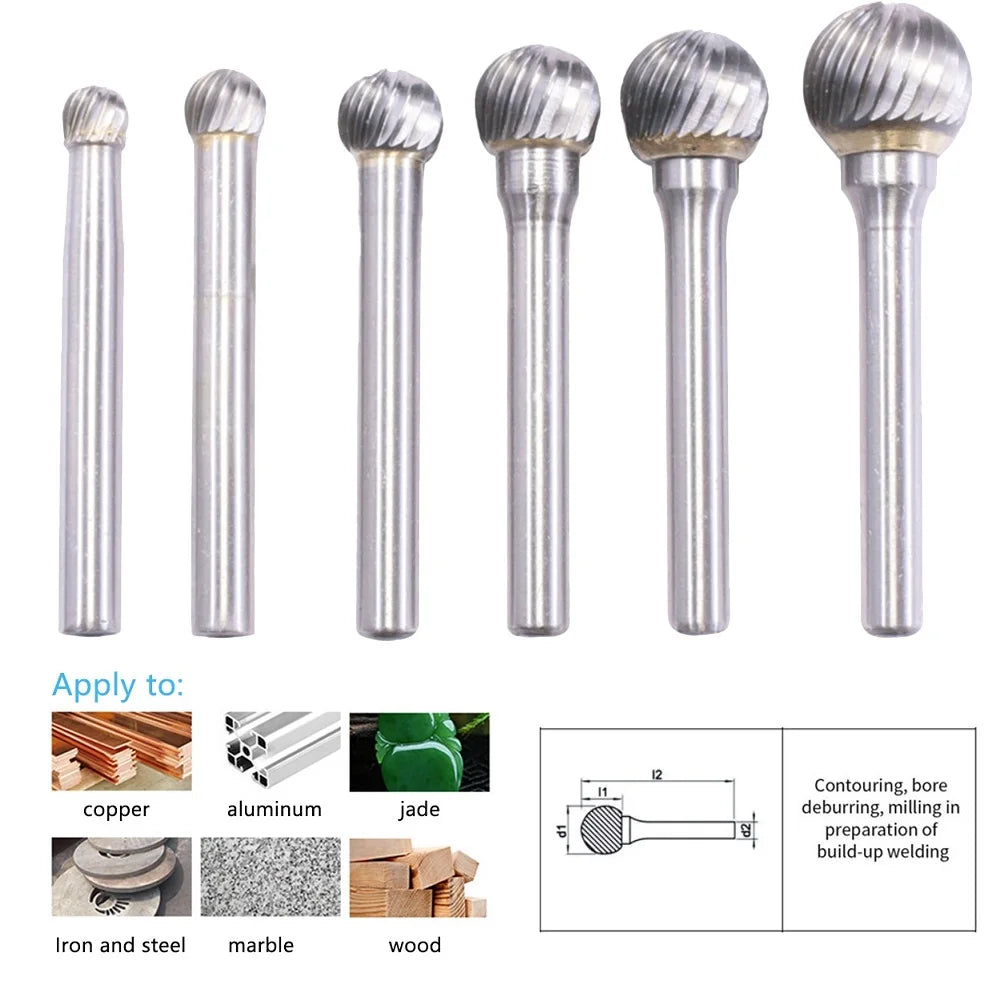

Compatible Materials
Cast iron · Cast steel · Bearing steel · High-carbon steel · Chrome-nickel alloy · Bronze · Brass · Ceramic tile · Marble · Jade · Bone
Package Includes
- 1 × DAZZLEEX Ball Head (Type D) Carbide Rotary Burr
Notes
- Actual color may vary slightly from images due to monitor settings and lighting conditions.
- Please allow for slight manual measurement deviations.
Related Products You May Like
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- Women's Denim Vest Jacket – Sleeveless Jean Waistcoat S–5XL
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What materials can the DAZZLEEX Carbide Ball Head Rotary Burr cut?
A: This carbide rotary burr is designed to handle a wide variety of metals and non-metals, including cast iron, cast steel, bearing steel, high-carbon steel, chrome-nickel alloy, bronze, brass, ceramic tile, marble, jade, and bone. It can process materials with hardness up to HRC70, making it suitable for both heavy-duty metalworking and delicate carving tasks.
Q: What RPM range is recommended for this die grinder bit?
A: The recommended operating speed is between 6,000 and 50,000 RPM, compatible with most standard electric and pneumatic die grinders. Always consult your tool's manual and ensure the speed rating matches before use.
Q: How does a carbide rotary burr compare to a standard grinding wheel?
A: Carbide rotary burrs offer significantly better performance than small grinding wheels — they can be up to 10× more efficient in processing speed and last up to 200× longer. They also produce cleaner finishes with no abrasive particle contamination, making them a highly cost-effective long-term choice for precision milling, carving, and finishing work.
Q: Is this burr compatible with my die grinder or rotary tool?
A: This burr is designed for use with standard electric and pneumatic die grinders and rotary tools. Check that your tool's collet size matches the shank diameter of the burr (refer to the product images for exact shank dimensions) before fitting.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
