Gaqqee 8×21700 Power Bank Case PD 100W DIY Fast Charging Kit

$88.35 $108.48

Gaqqee 8×21700 DIY Power Bank Case – PD 100W Super-Fast Charging

Build your own high-capacity portable power station with the Gaqqee 8×21700 Power Bank Case. Designed for tech enthusiasts, outdoor adventurers, and DIY electronics hobbyists, this solder-free battery storage box delivers up to 100W of output power via Type-C (PD), USB, and adjustable DC ports — no soldering iron required. Its clear acrylic casing lets you show off the internal build, while a built-in high-brightness LED flashlight with SOS mode makes it a dependable companion in the field.

Made in Mainland China.

Key Features

PD 100W Super-Fast Charging: Type-C output at 20V/5A supports rapid charging for laptops, tablets, and smartphones via PD 3.1, PD 3.0, PD 2.0, PPS, QC 3.0/2.0, SCP, UFCS, and more.
Solder-Free Design: Tool-free battery cell replacement — simply swap 21700 cells without changing the case, making upgrades or maintenance straightforward.
Adjustable DC Output (3.3V–24V): Step-by-step or continuous voltage adjustment via DC ports (5.5×2.1 and 5.5×2.5) to power a wide range of devices and projects.
Multi-Port Outputs: Type-C (PD 100W) + USB (up to 30W fast charge for most phones) + two DC ports for maximum versatility.

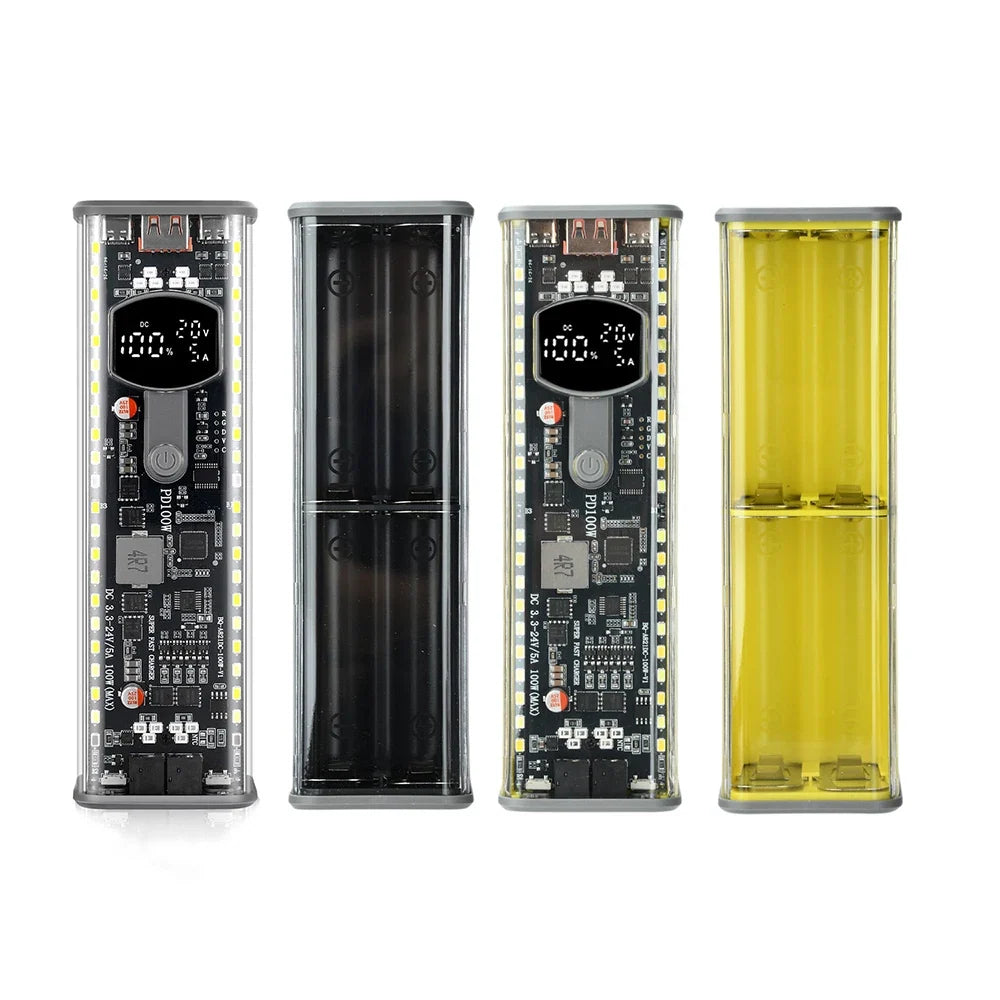

High-Transparency Acrylic Case: Crystal-clear housing provides a full view of the internal cell configuration — ideal for showcasing your DIY build.

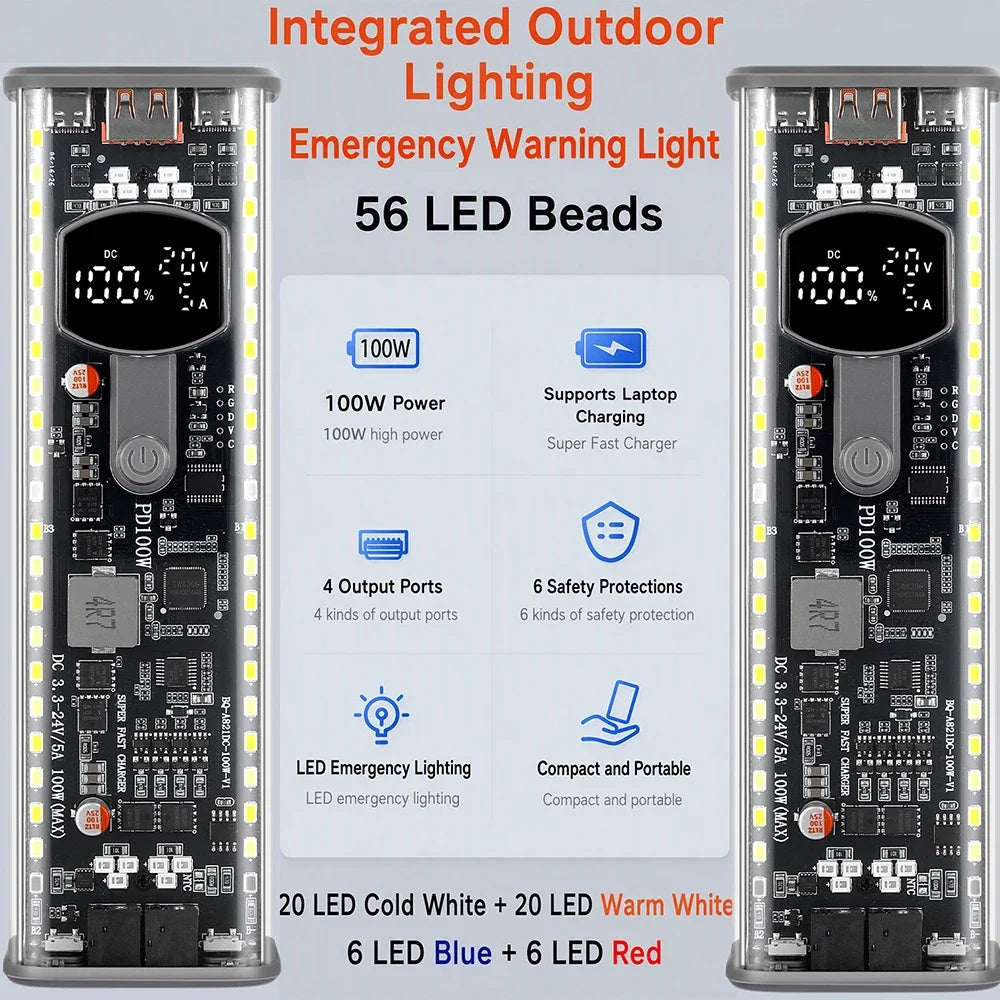

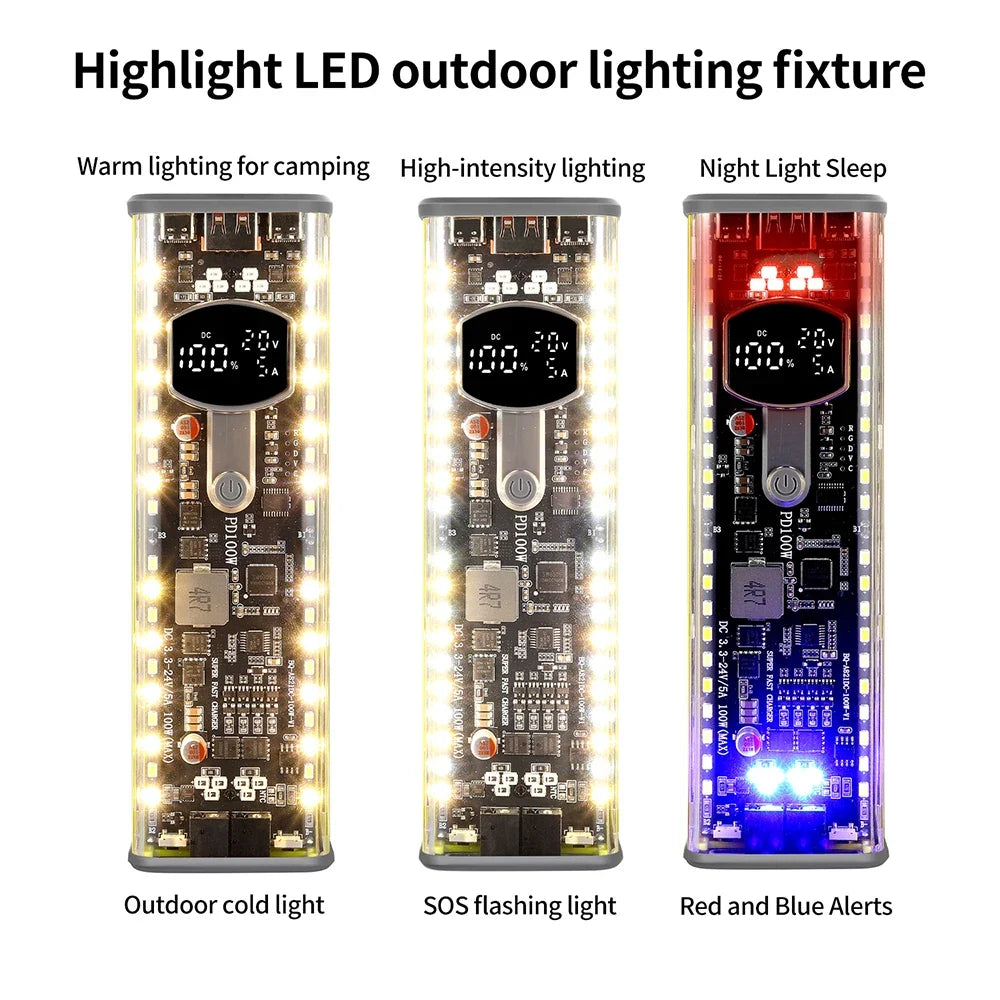

LED Flashlight + SOS Mode: High-brightness built-in light for outdoor use, emergencies, and camping.
Multi-Layer Protection System: Input overvoltage/undervoltage, output overcurrent/overvoltage/short-circuit, battery overcharge/over-discharge/overcurrent, and IC over-temperature protection for safe, stable operation.
CE / RoHS / WEEE Certified: Meets major international safety and environmental compliance standards.

Technical Specifications

Compatible Batteries	3.7V flat-top, unprotected ternary lithium 21700 (not included)
Battery Configuration	2 in parallel × 4 in series (8 cells total; all cells must be identical)
Battery Pack Voltage	12.5V – 16.5V
Max Output Power	100W
Max Output Current	5A
Type-C Output	PD 100W (20V/5A); PD 3.1/3.0/2.0, PPS, SCP, QC3+/3.0/2.0, UFCS, AFC, FCP, SFCP, SVOOC, VOOC
USB Output	5V/9V/12V/15V/20V @ 3A; QC3+/3.0/2.0, SCP, UFCS, PE1.1/2.0, AFC, FCP, SFCP, SVOOC, VOOC
DC Output Voltage	3.3V – 24V (adjustable); DC1: 5.5×2.1 \| DC2: 5.5×2.5
Type-C Input	PD 100W (20V/5A); supports simultaneous 5V charge & discharge
Dimensions	167 × 52 × 61 mm
Material	High-transparency acrylic + plastic
Certifications	CE, RoHS, WEEE

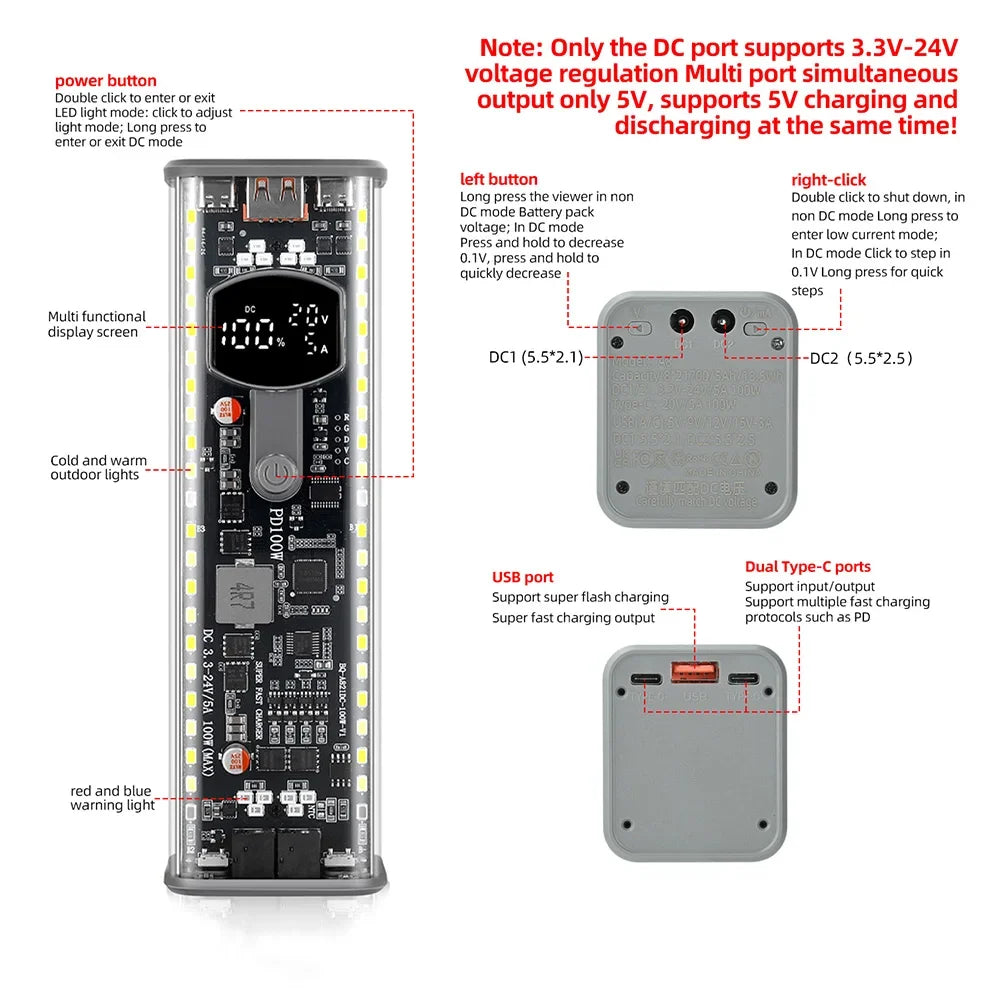

Button Controls

Power Button (hold): Activate DC mode
Left / Right Buttons (single press): Step-adjust voltage range
Left / Right Buttons (hold): Continuous voltage adjustment

Important Notes

Batteries are NOT included. Use 8 identical, unprotected, flat-top 21700 cells only.

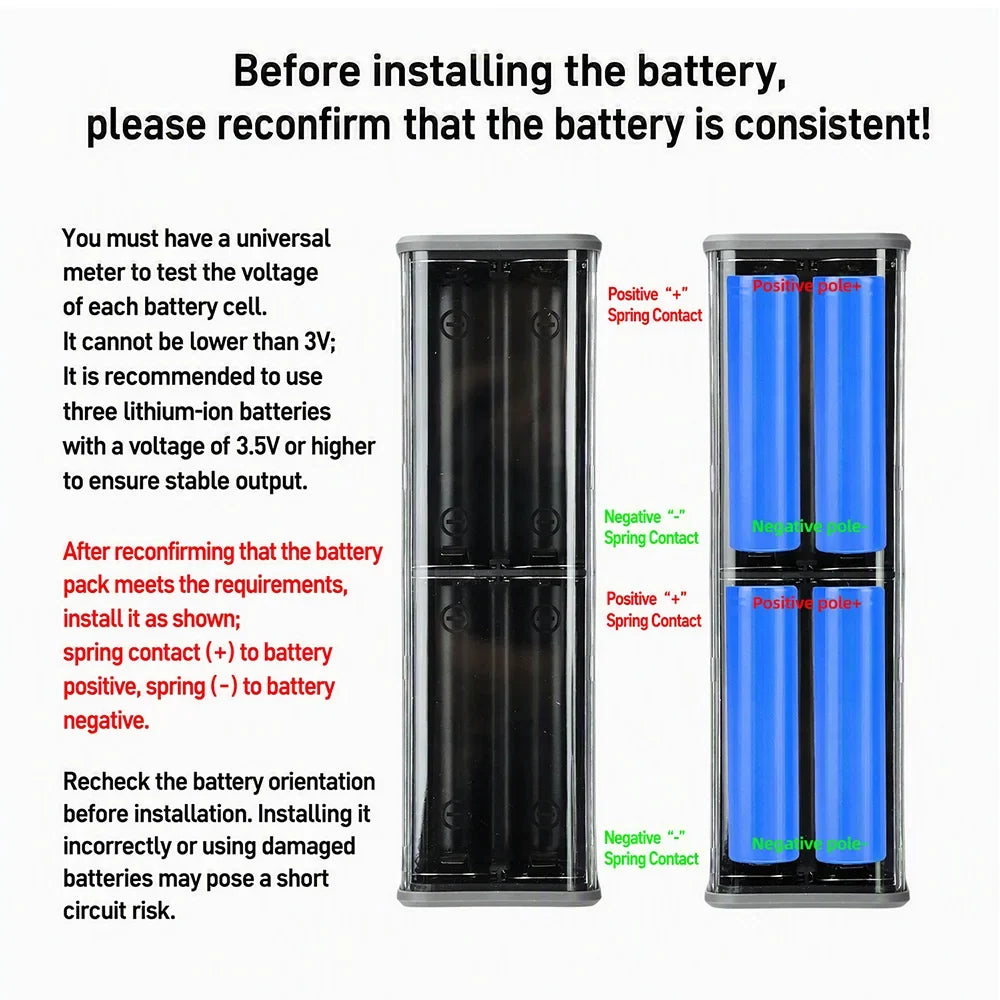

Carefully identify positive (+) and negative (−) terminals before installation to avoid short circuits.
DC ports cannot be used simultaneously with USB or Type-C ports; when multiple ports are active, output is limited to 5V.
Ensure all 8 cells have matching voltage, capacity, discharge rate, and internal resistance for optimal performance.
Smartphone fast charging may be limited to ~30W when using non-original or non-dedicated fast-charging cables.

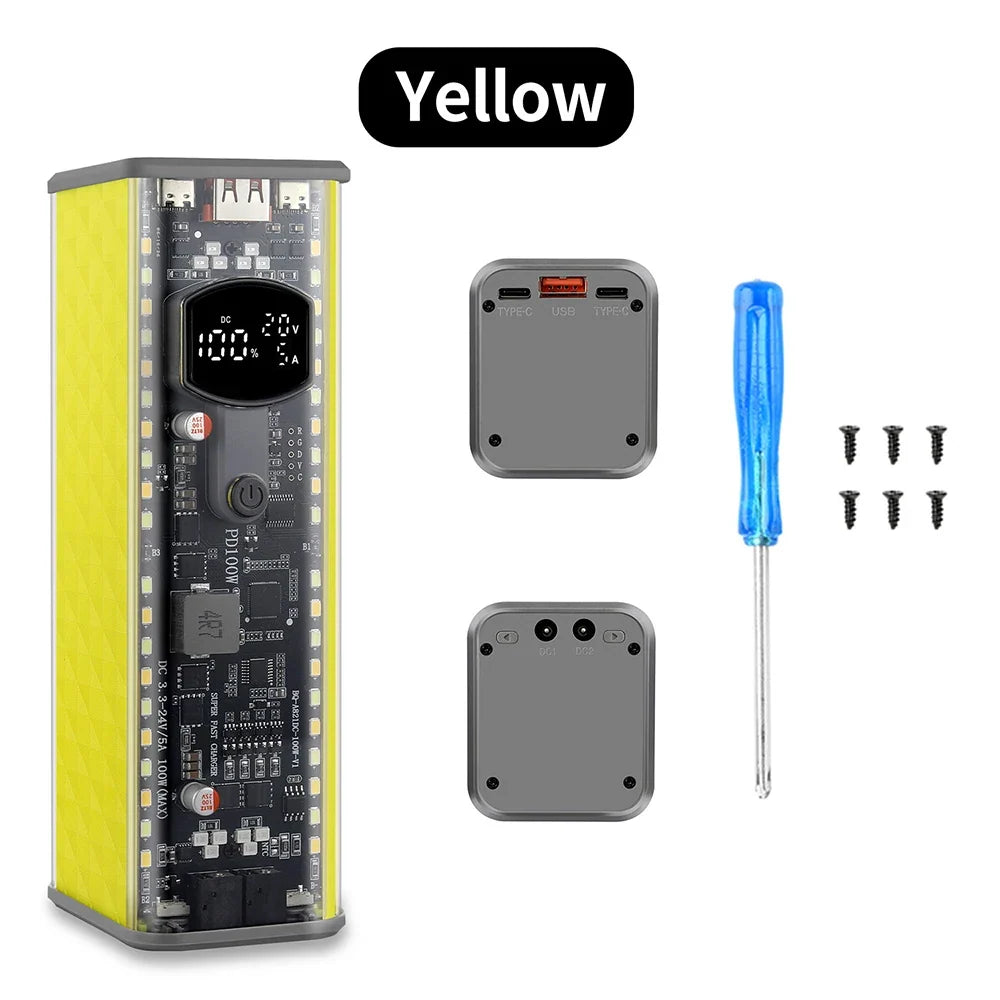

What's in the Box

Power Bank DIY Kit × 1
Accessory Pack × 1

Frequently Asked Questions

Q: Does the Gaqqee 8×21700 Power Bank Case come with batteries?

A: No, batteries are not included. You will need to source 8 identical 3.7V flat-top, unprotected ternary lithium 21700 cells separately. All 8 cells must match in voltage, capacity, discharge rate, and internal resistance for safe and optimal performance.

Q: Can I charge a laptop with this DIY power bank case?

A: Yes! The Type-C port supports PD 100W (20V/5A) output, which is compatible with most USB-C laptops. The case includes laptop charging detection mode and supports PD 3.1, PD 3.0, and PD 2.0 protocols for broad device compatibility.

Q: Do I need soldering skills to build or maintain this power bank?

A: No soldering is required. The solder-free design allows you to insert and replace 21700 battery cells easily without any soldering tools, making it beginner-friendly and convenient for future upgrades.

Q: What is the adjustable DC output used for?

A: The two DC output ports (5.5×2.1 and 5.5×2.5) support voltage adjustment from 3.3V to 24V, making them ideal for powering routers, LED strips, small electronics, and other DC-powered devices. Note that DC ports cannot be used at the same time as USB or Type-C ports.
