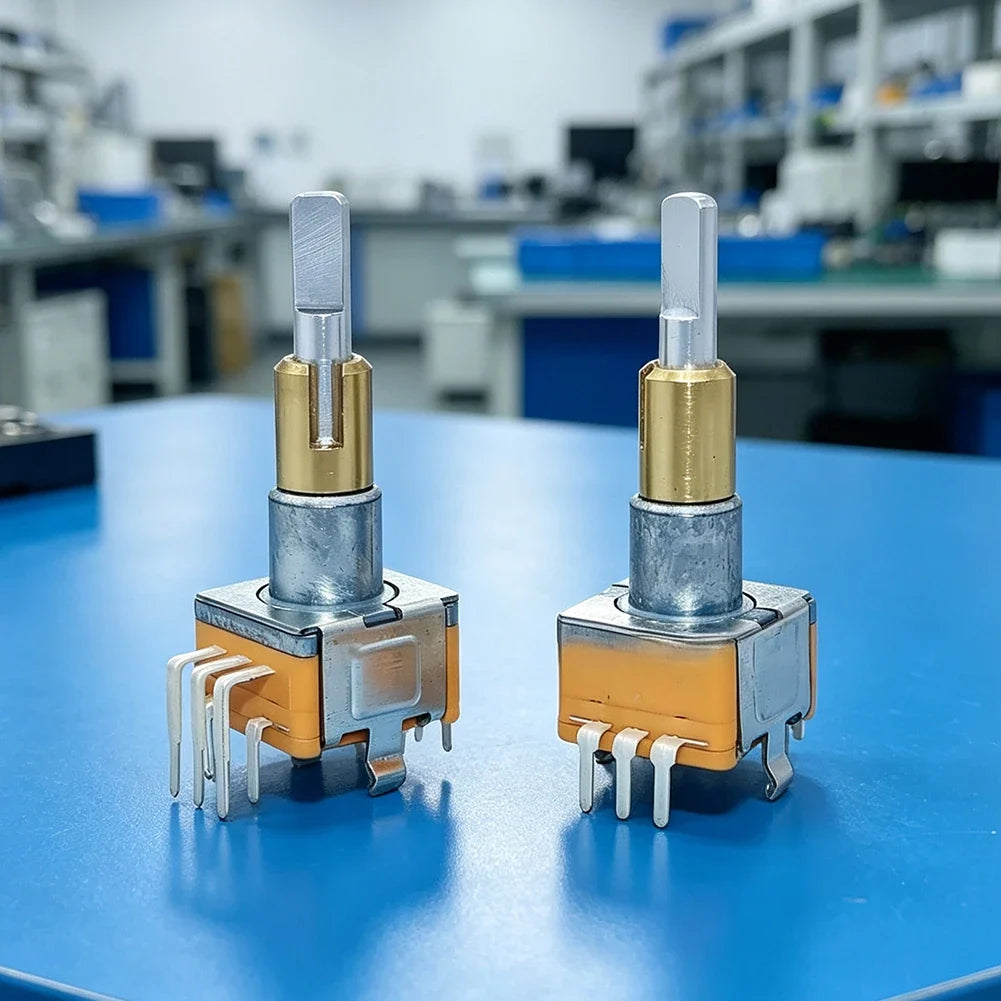

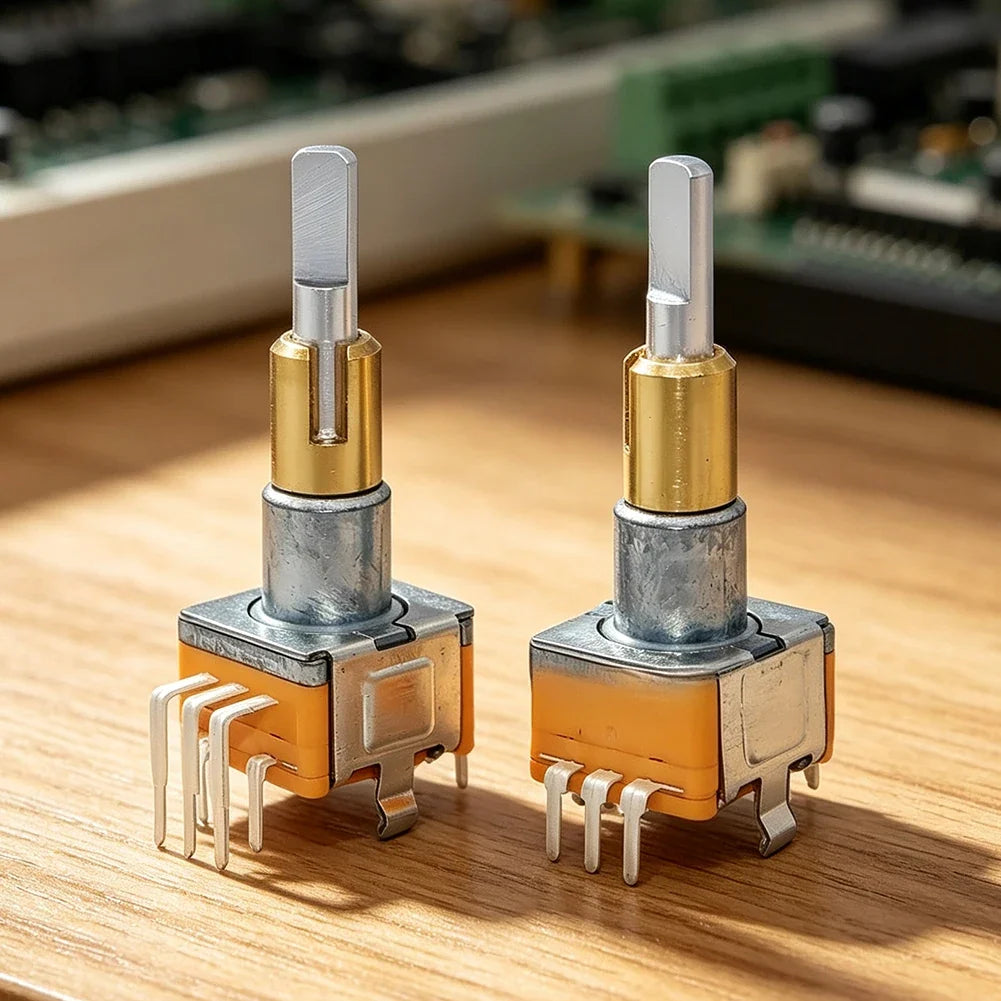

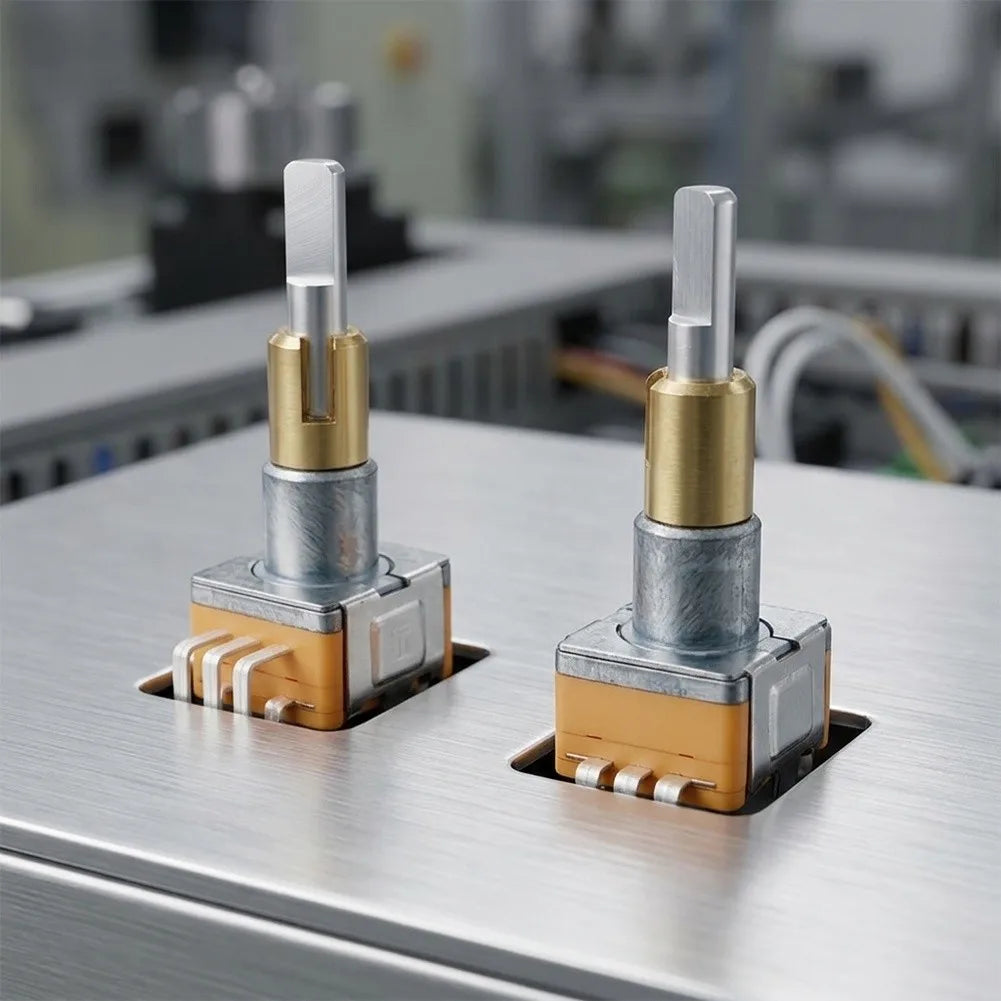

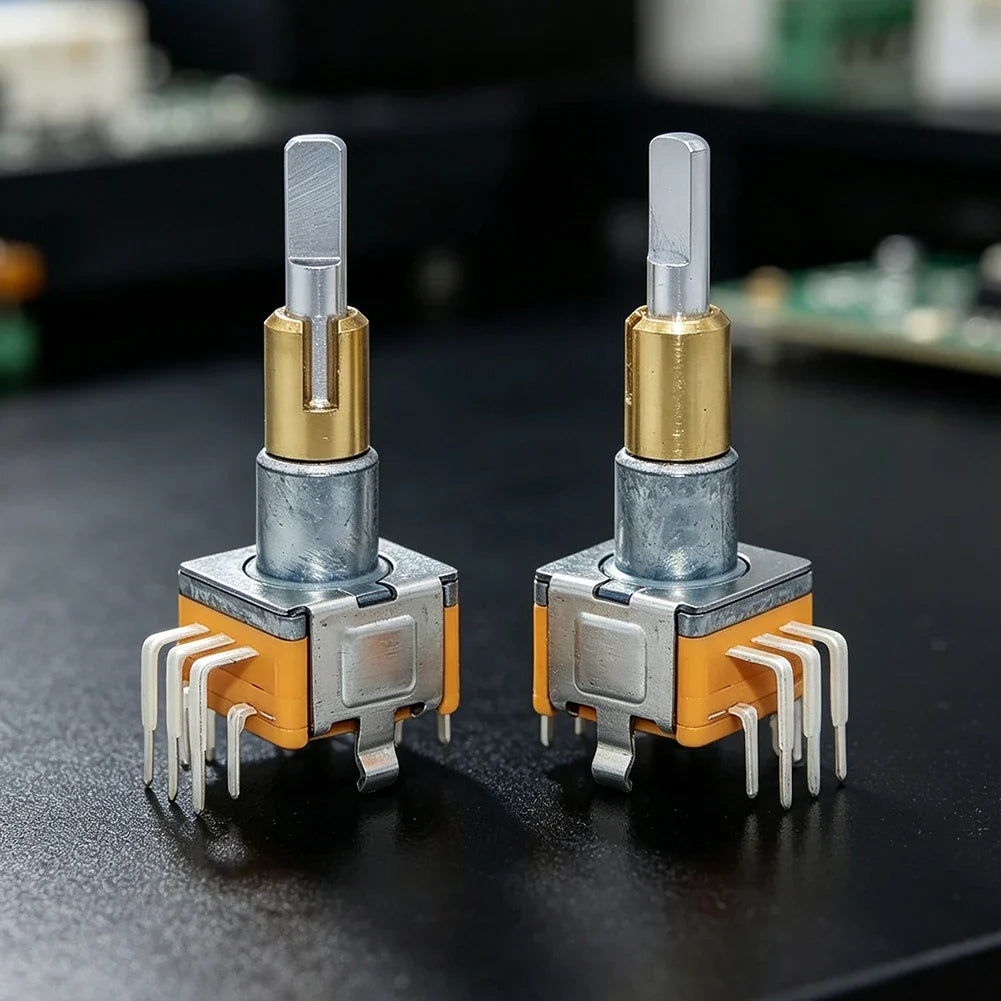

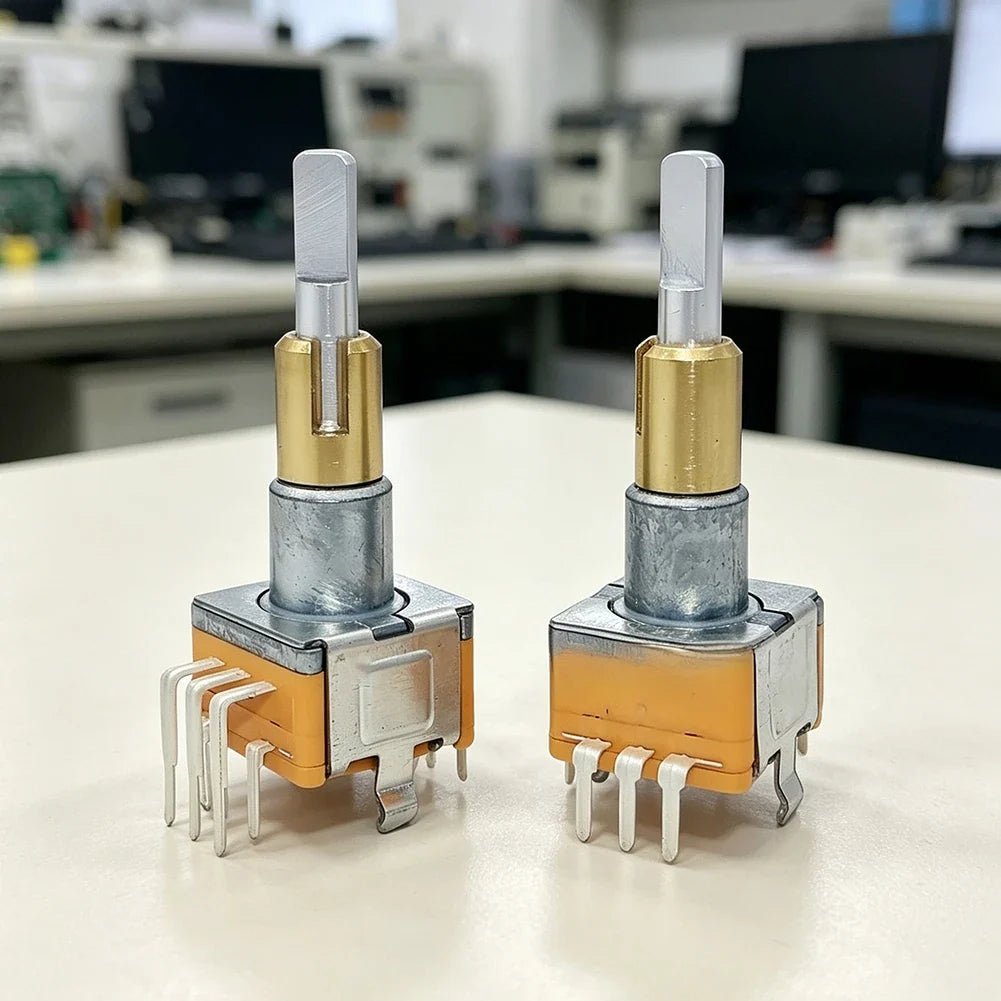

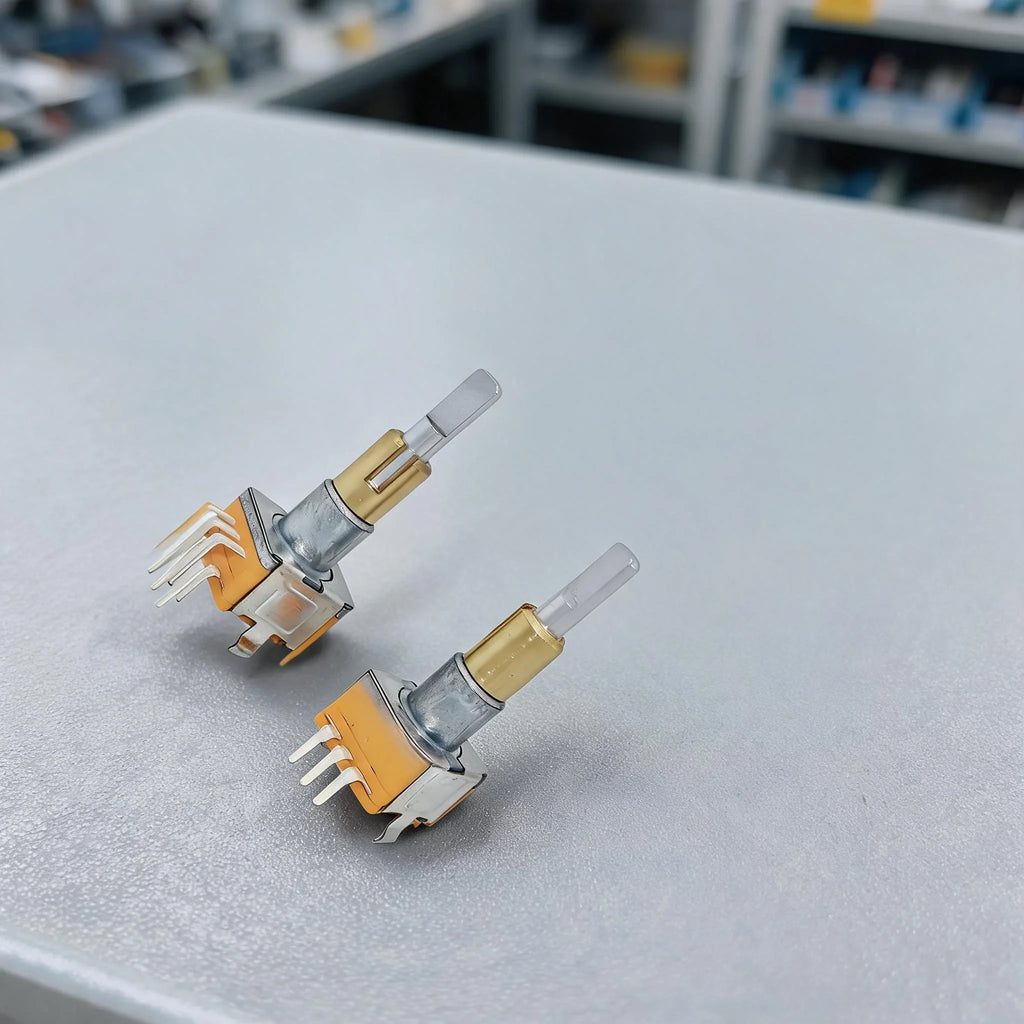

HpLive EC110701N2B Rotary Encoder with Dual-Shaft Push Button Switch – 2 Pack
Upgrade your electronics projects with the HpLive EC110701N2B Rotary Encoder — a precision-engineered, metal-body encoder designed for smooth, accurate rotary input across a wide range of DIY and professional applications. This pack includes 2 pieces, giving you everything you need for dual setups or a backup on hand.
Key Features
- Precision Rotary Design: Engineered for smooth, consistent rotation, delivering reliable performance across repeated use in various electronic and DIY applications.
- Dual-Signal Output: Provides two-channel pulse signal output for accurate position detection and dependable rotational tracking.
- Built-in Push Button Switch: Integrated push-button functionality adds an extra layer of input control — press down on the shaft to trigger a switch action without any additional components.
- 30-Position Resolution: High-resolution 30-step detent per revolution ensures precise, fine-tuned control for demanding applications.
- 15 Pulses Per Rotation: Delivers 15 pulse cycles per rotation, optimizing responsiveness for position-sensitive projects.
- Durable Metal Construction: Built from quality metal for long-lasting, sturdy performance in both prototyping and permanent installations.
Specifications
| Model | EC110701N2B |
| Material | Metal |
| Color | Yellow |
| Resolution | 30 Positions per Revolution |
| Pulse Output | 15 Pulses per Rotation |
| Output Type | Dual-Channel Pulse Signal |
| Push Button | Yes (Built-in) |
| Quantity | 2 Pieces |
| Country of Origin | Made in Mainland China |
Package Contents
- 2 × EC110701N2B Rotary Encoder with Push Button Switch
Please Note
- Actual color may vary slightly from images due to monitor brightness and display settings.
- Please allow for minor measurement deviations due to manual measurement methods.
You May Also Like
Looking for more components for your builds? Check out related products in our store:
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- B&U Sinking Minnow Lure 29mm 2.8g – Bass Pike Trout Wobbler
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the resolution of the EC110701N2B rotary encoder?
A: The EC110701N2B rotary encoder features a 30-position resolution per revolution and outputs 15 pulses per rotation, making it ideal for applications requiring precise, fine-tuned control and accurate position detection.
Q: Does this rotary encoder include a push button function?
A: Yes! The EC110701N2B includes a built-in push-button switch on the shaft. Simply press down on the shaft to trigger the switch — no additional button components required, making it a versatile dual-function input device.
Q: How many encoders are included in this listing?
A: This listing includes a pack of 2 EC110701N2B rotary encoders, so you'll have a pair ready for dual setups, redundant installations, or to keep one as a spare.
Q: What type of signal output does this encoder provide?
A: The encoder provides dual-channel pulse signal output, enabling accurate directional and position detection, suitable for microcontroller projects, DIY electronics, and industrial control panels.
