LA4-2H / LA4-3H Industrial Pushbutton Switch Box

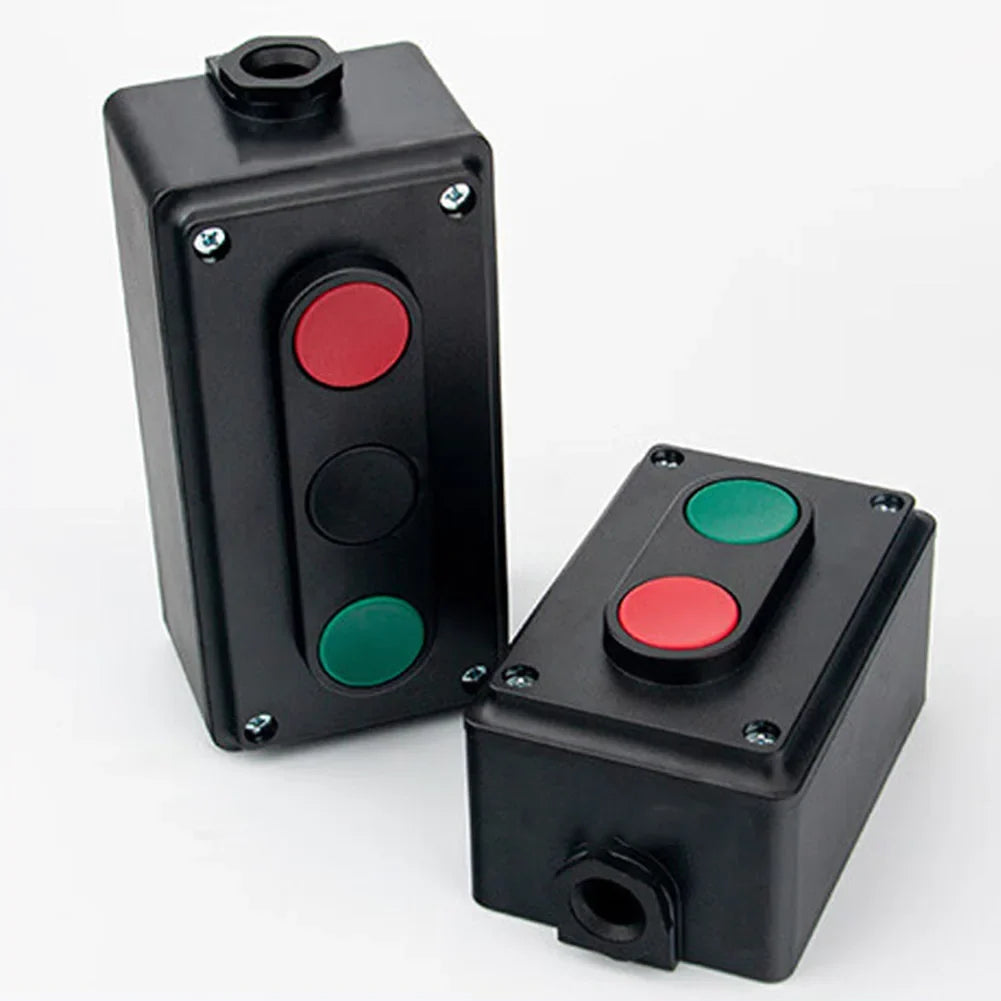

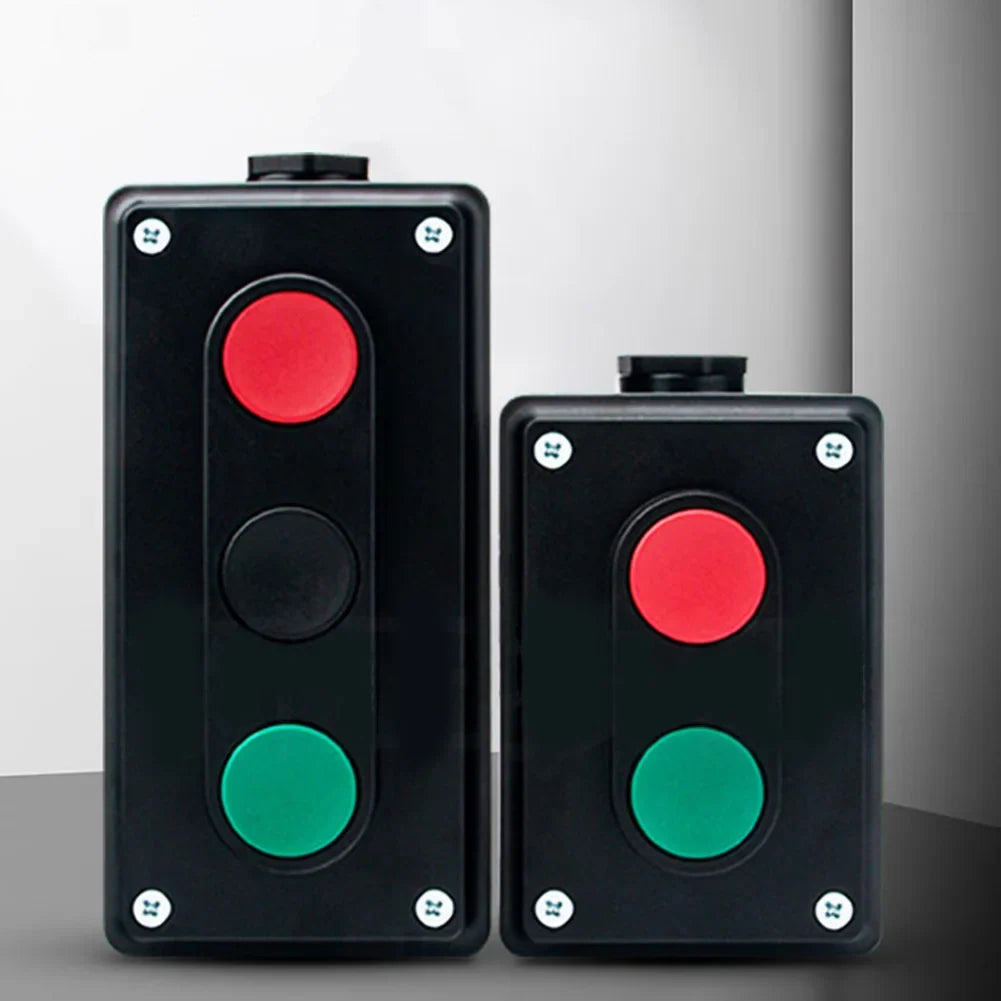

Take full control of your machine tools and industrial equipment with this heavy-duty LA4 Series Pushbutton Switch Box. Available in double-button (LA4-2H) and triple-button (LA4-3H) configurations, this compact control station is engineered for demanding environments where reliability and longevity are non-negotiable.
Key Features
- Robust Bakelite Construction: Durable bakelite front ring and ABA body withstand the rigors of industrial settings, ensuring long-lasting performance even in harsh conditions.
- Wide Operating Temperature Range: Engineered for reliable operation between -40°C and 70°C, making it suitable for a broad range of industrial and outdoor applications.
- IP65 Protection Rating: The sealed head design guards effectively against dust ingress and water jets, keeping internal contacts clean and functioning.
- Up to 1 Million Electrical Operations: Rated for extended service life — built to keep up with the demands of high-cycle industrial use.

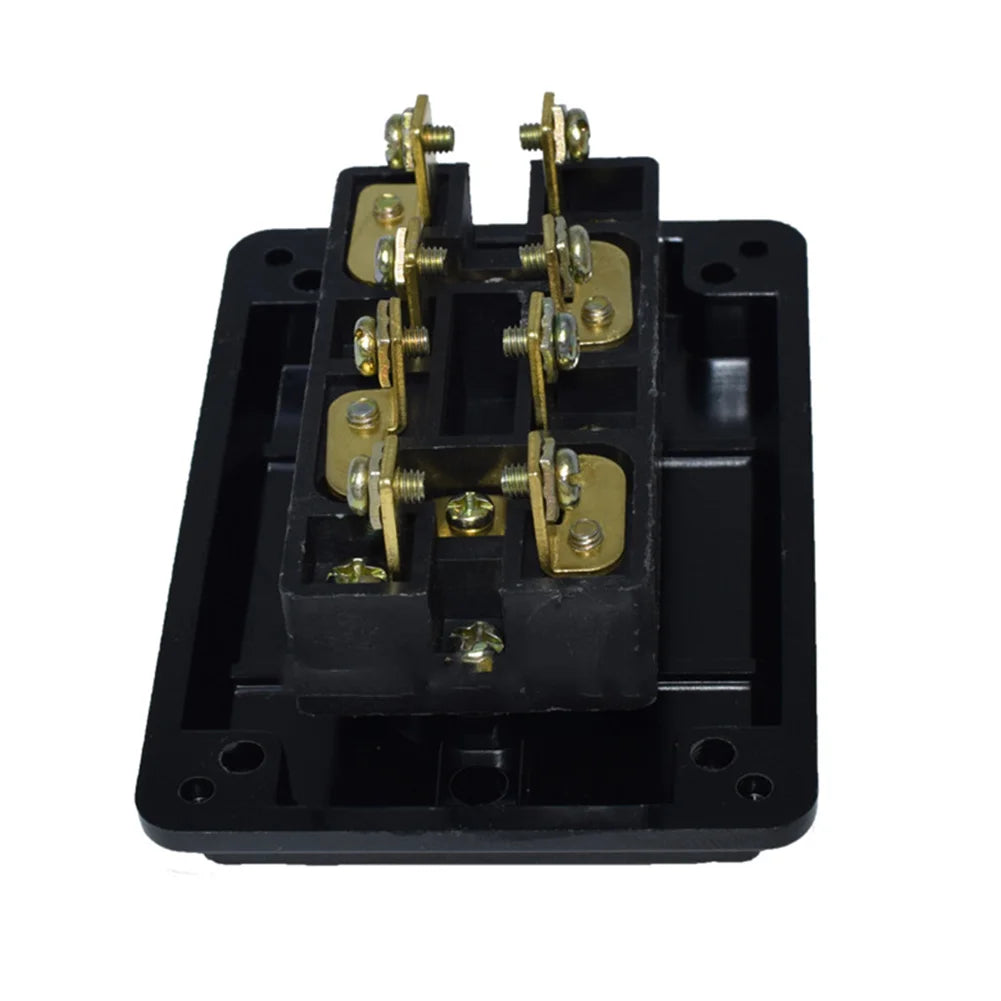

- Secure Screw Terminal Connections: Easy-to-install screw terminals provide a stable, vibration-resistant electrical connection every time.
- Standard Mounting Diameter: 24.88 mm mounting diameter fits standard industrial enclosure cutouts for quick, tool-friendly installation.
Specifications
| Model | LA4-2H (Double) / LA4-3H (Triple) |
| Material | ABA Plastic with Bakelite Front Ring |
| Color | Black |

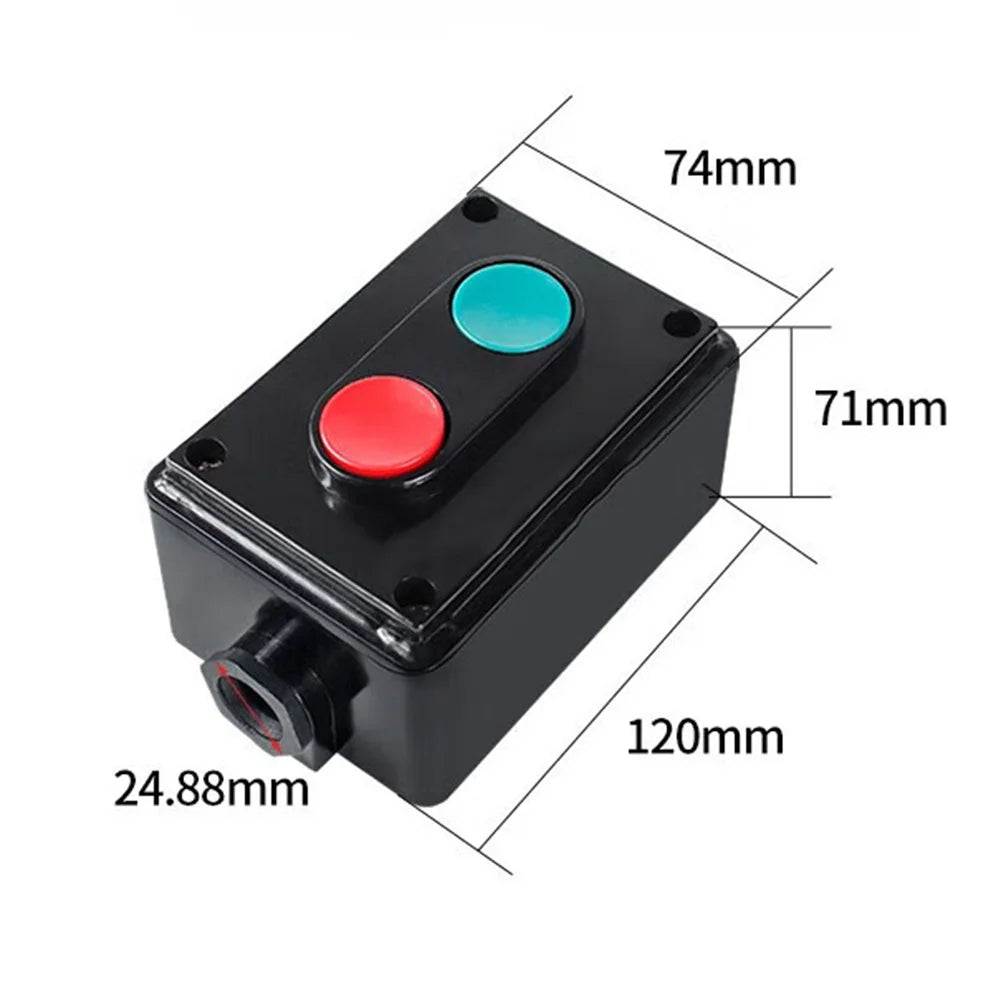

| LA4-2H Dimensions | 12 × 7.4 × 7.1 cm |

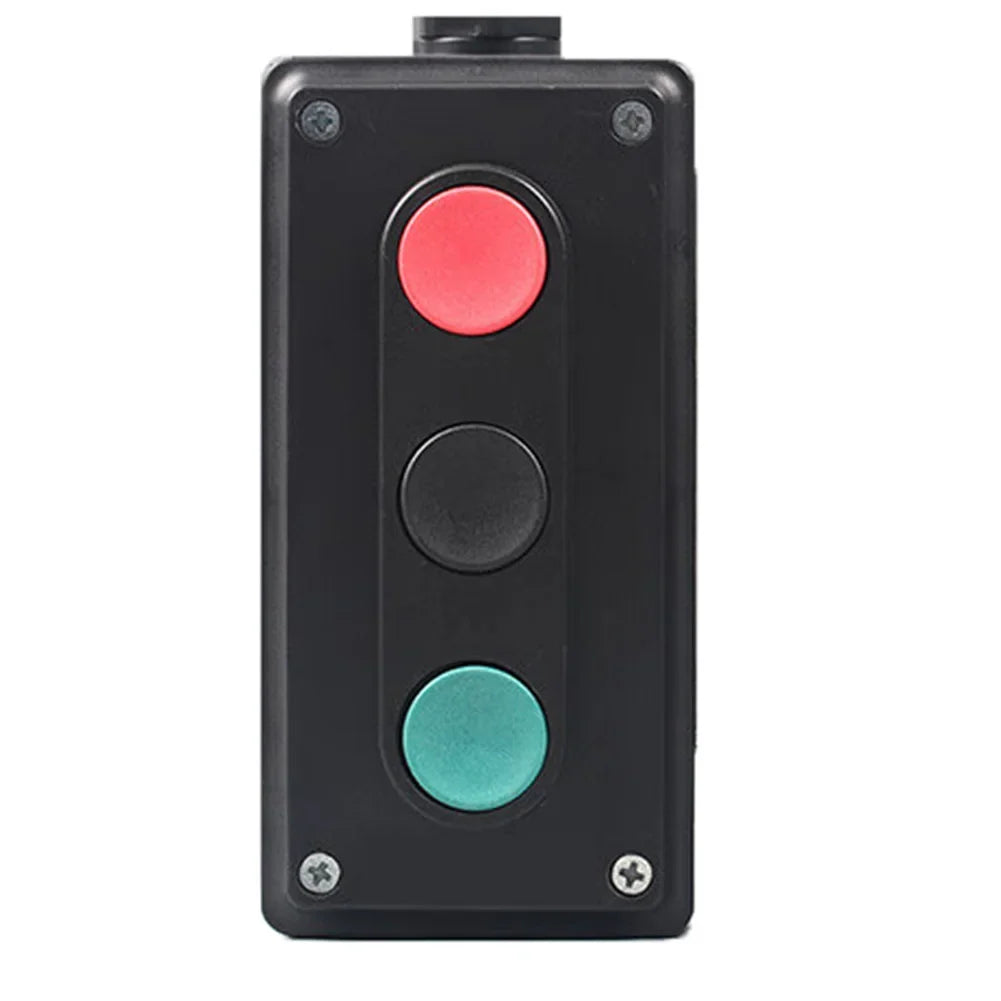

| LA4-3H Dimensions | 16.3 × 7.4 × 7.1 cm |
| Mounting Diameter | 24.88 mm |
| Protection Rating | IP65 |
| Operating Temperature | -40°C to 70°C |
| Service Life | Up to 1,000,000 electrical operations |
| Connection Type | Screw Terminals |
| Country of Origin | Made in China |
Package Contents
- 1 × Pushbutton Switch Box (LA4-2H or LA4-3H, as selected)
Notes
- Actual color may vary slightly from product images due to monitor display settings and ambient lighting.
- Please allow a slight measurement tolerance (±2–3 mm) for all stated dimensions.
You Might Also Like
Looking for more tools and equipment for your projects? Check out these related products:
- B&U 29mm Sinking Minnow Jerkbait Lure – Bass Trout Pike
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the difference between the LA4-2H and LA4-3H pushbutton switch box?
A: The LA4-2H is a double pushbutton switch box with two buttons (typically Start and Stop), measuring 12 × 7.4 × 7.1 cm. The LA4-3H is a triple pushbutton switch box with three buttons for more complex control requirements, measuring 16.3 × 7.4 × 7.1 cm. Both share the same IP65 rating, mounting diameter, and build quality.
Q: Is this pushbutton switch box suitable for outdoor or wet environments?
A: Yes. The IP65 protection rating means the switch box is fully dust-tight and protected against water jets from any direction, making it well-suited for both indoor industrial and outdoor applications.
Q: What mounting hole size do I need to install this switch box?
A: The standard mounting diameter for both the LA4-2H and LA4-3H models is 24.88 mm, which is compatible with most standard industrial panel cutouts and enclosures.

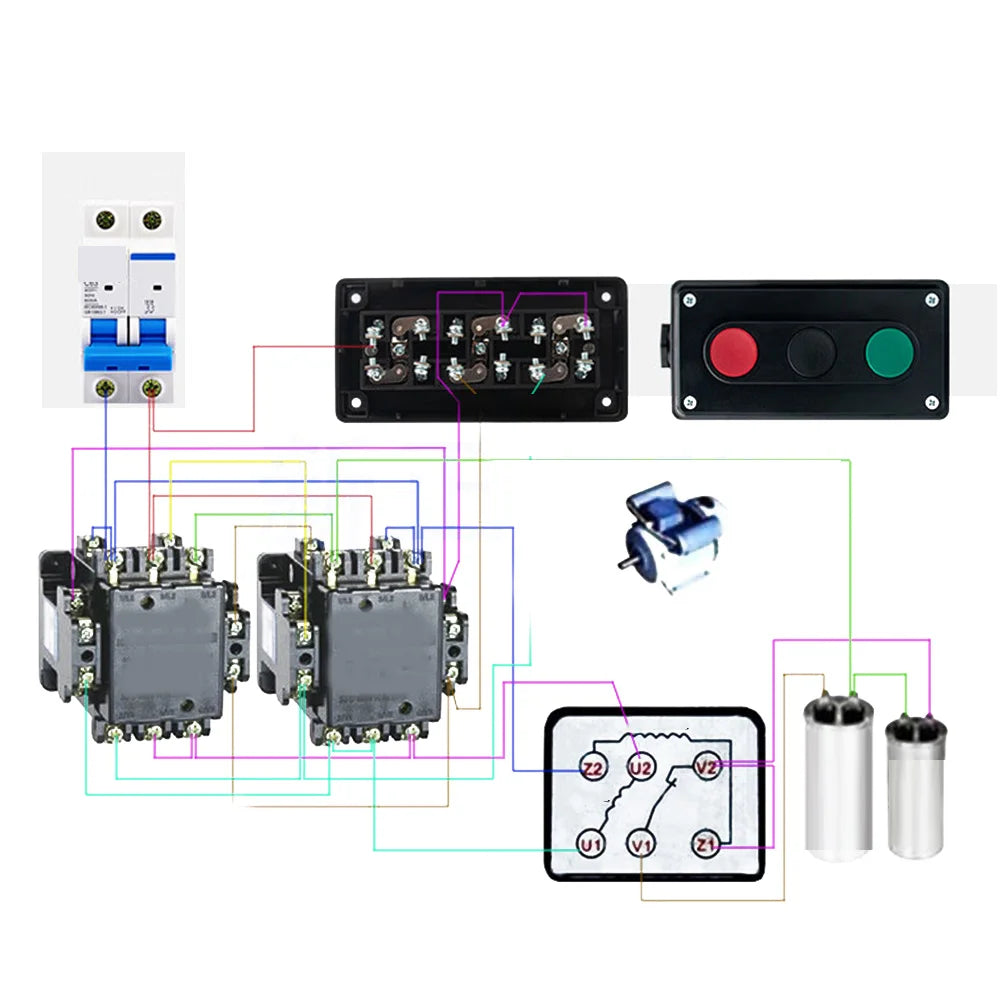

Q: How do I wire the terminals on this pushbutton switch box?
A: Both models use screw-type terminals, which allow for a straightforward and secure wiring process. Simply insert the wire into the terminal and tighten the screw — no special tools or crimping equipment required.
