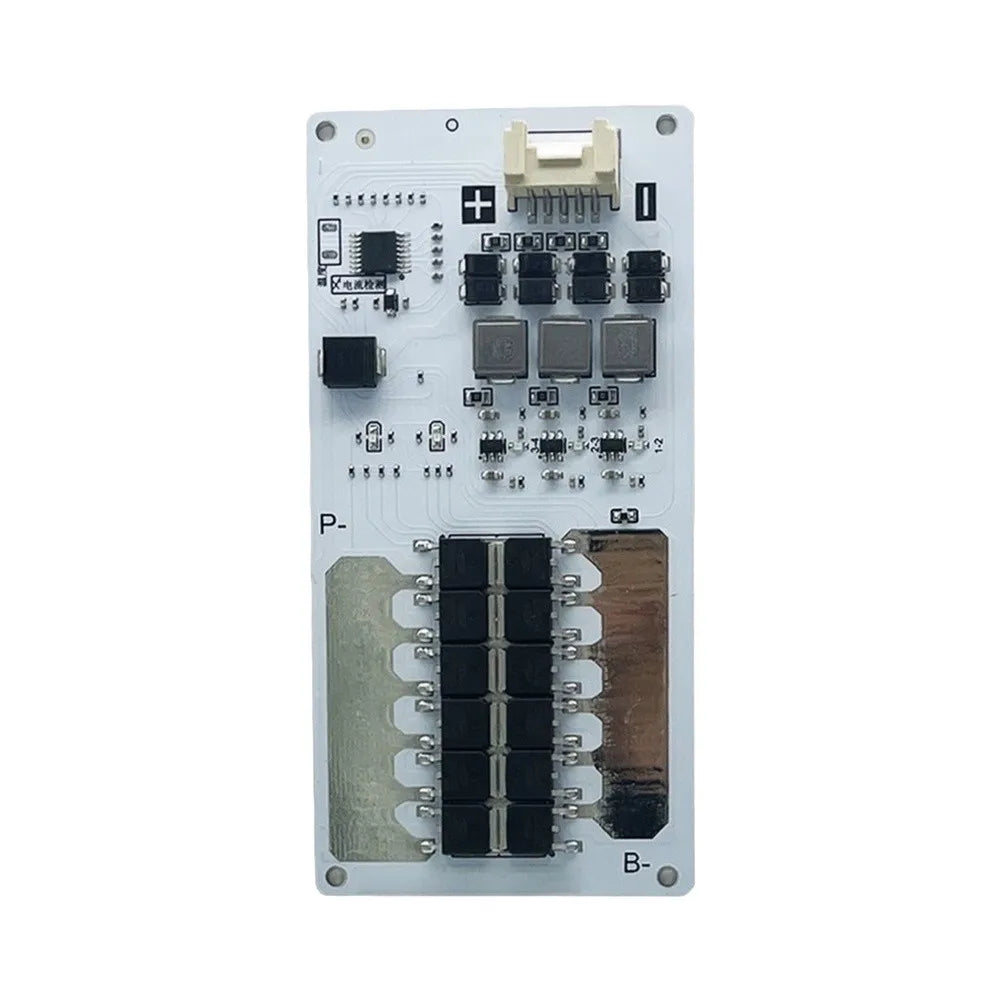

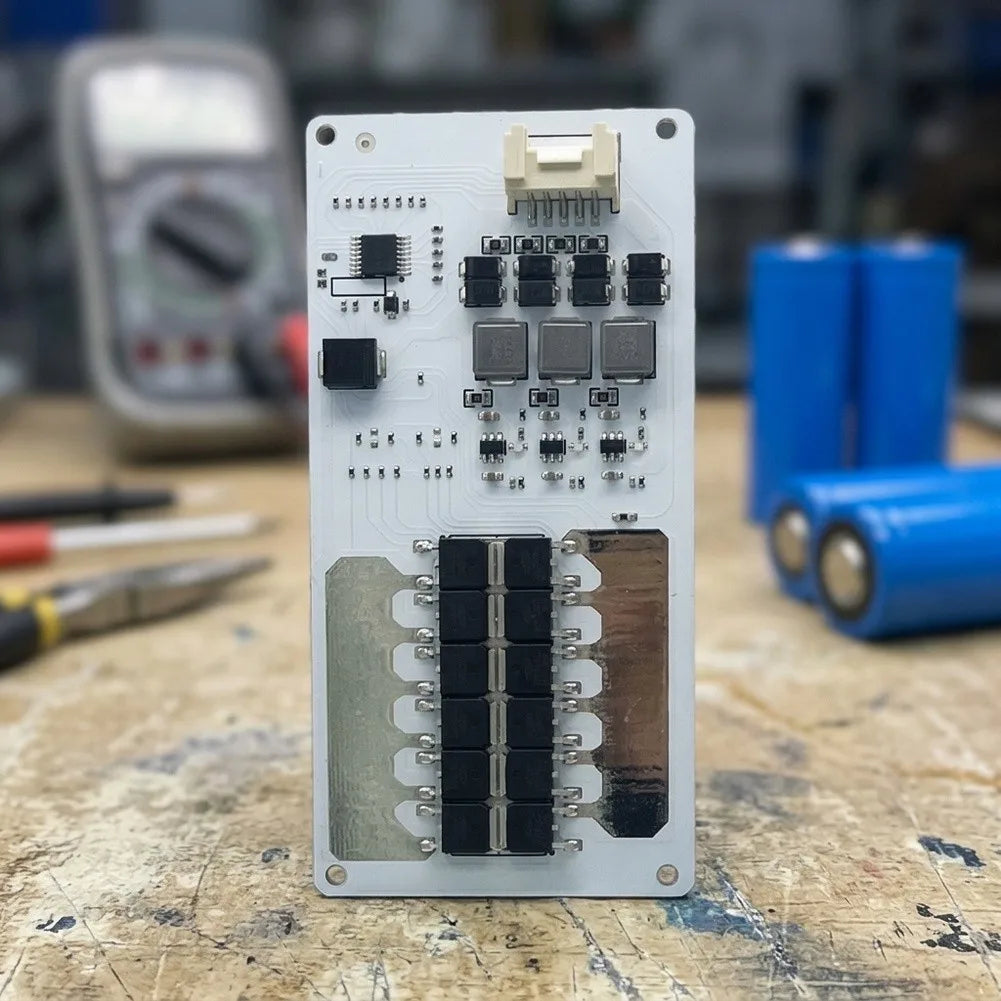

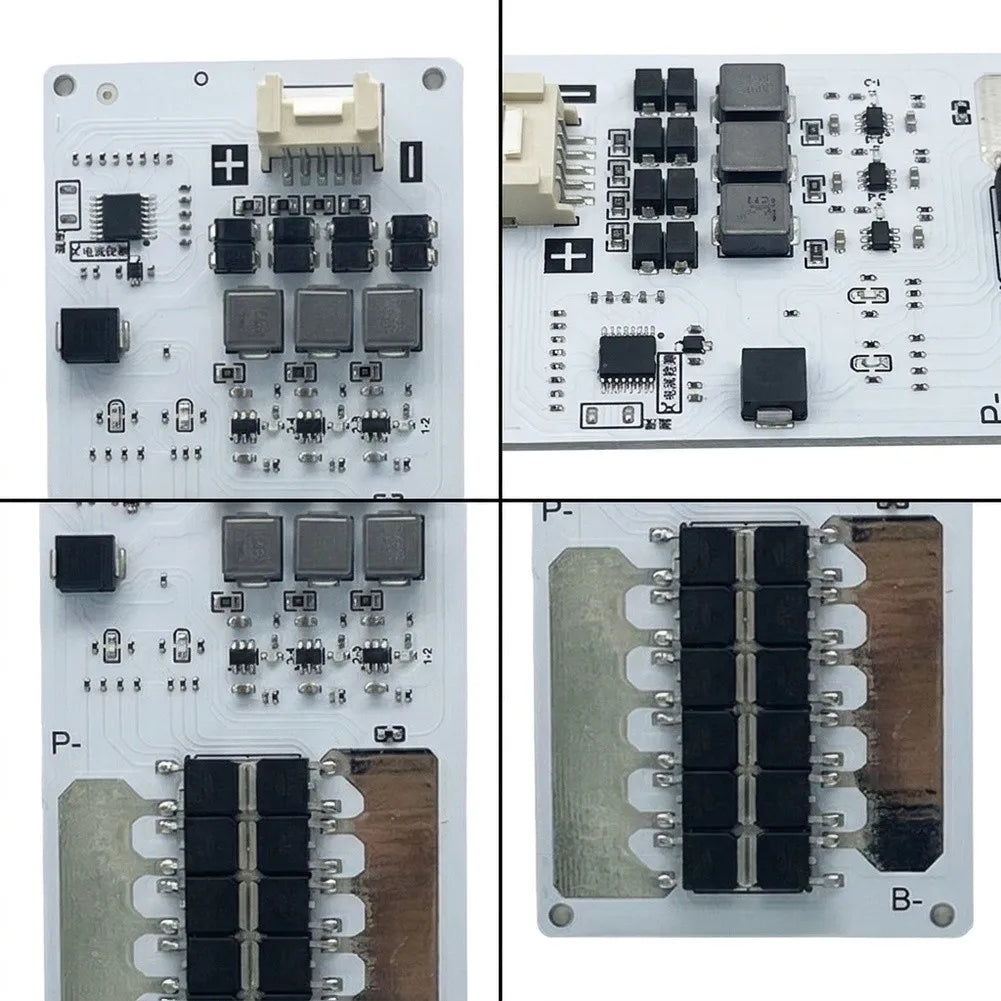

LiFePO4 4-Series BMS Protection Board with Active Balancing

Keep your 4-cell LiFePO4 battery pack running safely and efficiently with this robust Battery Management System (BMS) protection board. Featuring built-in active balancing, aluminum substrate construction, and comprehensive safety protections, this board is an essential component for DIY energy storage systems, solar setups, e-bikes, and other applications that rely on dependable lithium iron phosphate battery packs.

Made in Mainland China.

Key Features

• Advanced Overcharge & Over-Discharge Protection: Precisely set thresholds at 3.65V (overcharge) and 2.35V (over-discharge) per cell to safeguard your battery pack from damage and extend its service life.
• Active Cell Balancing (~1A): The integrated active balancing circuit continuously equalizes charge across all four cells, promoting consistent capacity, improved efficiency, and longer overall battery pack lifespan.
• Overcurrent & Short-Circuit Protection: Automatically cuts off current in the event of a short circuit or excessive discharge load, protecting both your battery and connected devices.
• Temperature Protection: Built-in thermal monitoring guards against operation under unsafe temperature conditions.
• High Continuous Discharge Rate: Supports up to 25A continuous discharge current, making it well-suited for demanding energy applications.
• Aluminum Substrate Construction: The solid aluminum base provides structural integrity and effective heat dissipation for reliable long-term performance.

Specifications

Package Contents

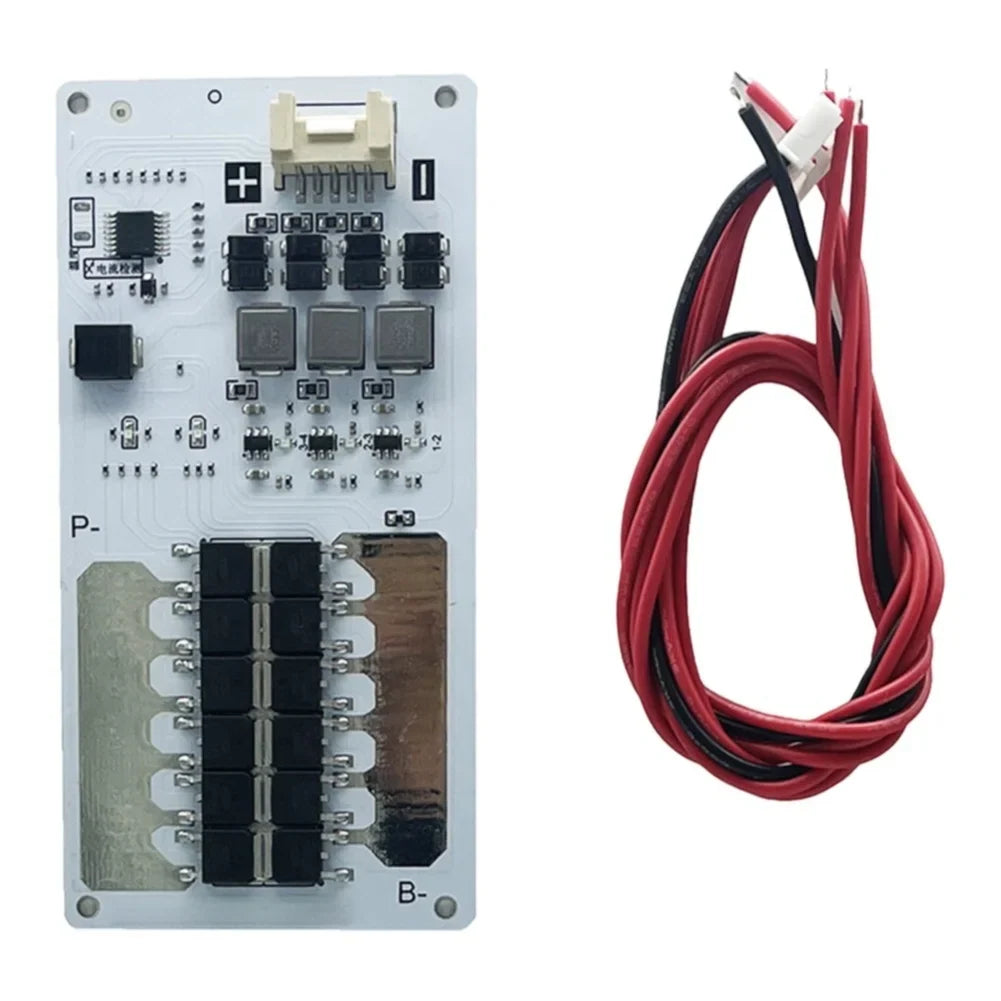

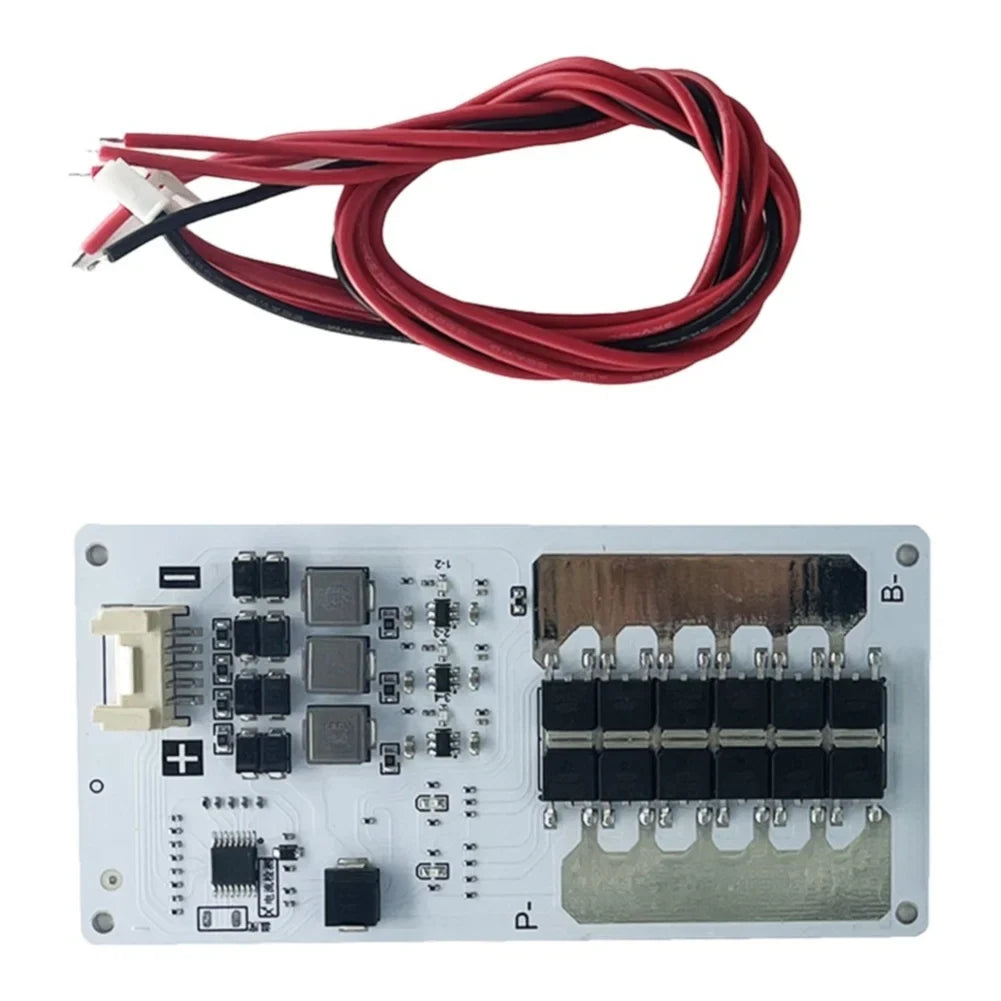

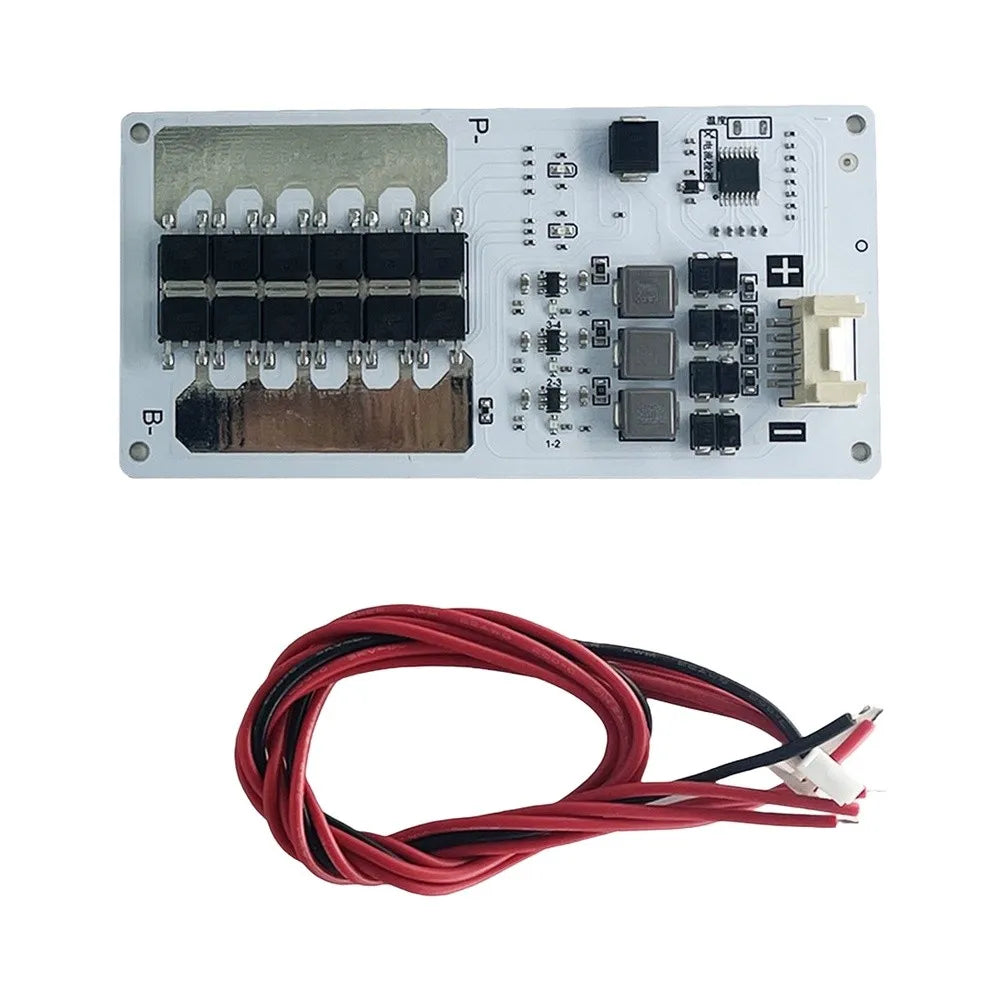

• 1 × LiFePO4 4S BMS Protection Board with Active Balancing

Related Products You May Like

• Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
• B&U Sinking Minnow Lure 29mm 2.8g – Bass Pike Trout Wobbler

Learn more: ENERGY STAR product efficiency guidance

Frequently Asked Questions

Q: What battery chemistry is this BMS protection board compatible with?

A: This board is specifically designed for LiFePO4 (Lithium Iron Phosphate) battery cells in a 4-series (4S) configuration. It is not intended for use with other lithium chemistries such as Li-ion (NMC/NCA) or LiPo cells, as the voltage thresholds are calibrated specifically for LiFePO4.

Q: What does active balancing do and why is it better than passive balancing?

A: Active balancing transfers excess charge energy from higher-charged cells to lower-charged cells, rather than simply dissipating it as heat (as passive balancing does). With approximately 1A of balancing current, this board helps ensure all four cells maintain equal state-of-charge, which maximizes usable capacity, reduces cell stress, and extends the overall life of your battery pack.

Q: What is the maximum continuous discharge current this board supports?

A: This BMS protection board supports up to 25A of continuous discharge current, making it suitable for a wide range of applications including solar energy storage, electric bikes, and portable power stations.

Q: Does this board include a battery?

A: No, the battery is not included. The package contains only the 4S LiFePO4 BMS protection board. You will need to source your LiFePO4 cells separately.
