Mechanical Limit Switch with Four-Hole Frame Mount & Threaded Cable Entry
The H8WD Mechanically Operated Limit Control is a reliable position-detection device designed for industrial and automation applications. When a moving mechanism reaches its intended travel endpoint, the actuator engages to provide a precise, defined detection signal — making this switch an essential component for motion control systems, machinery, and automated equipment.
Made in Mainland China.
Key Features
- Mechanical Endpoint Detection: Actuates precisely when a moving part engages the switch at its designated travel endpoint or position, ensuring accurate and repeatable detection.

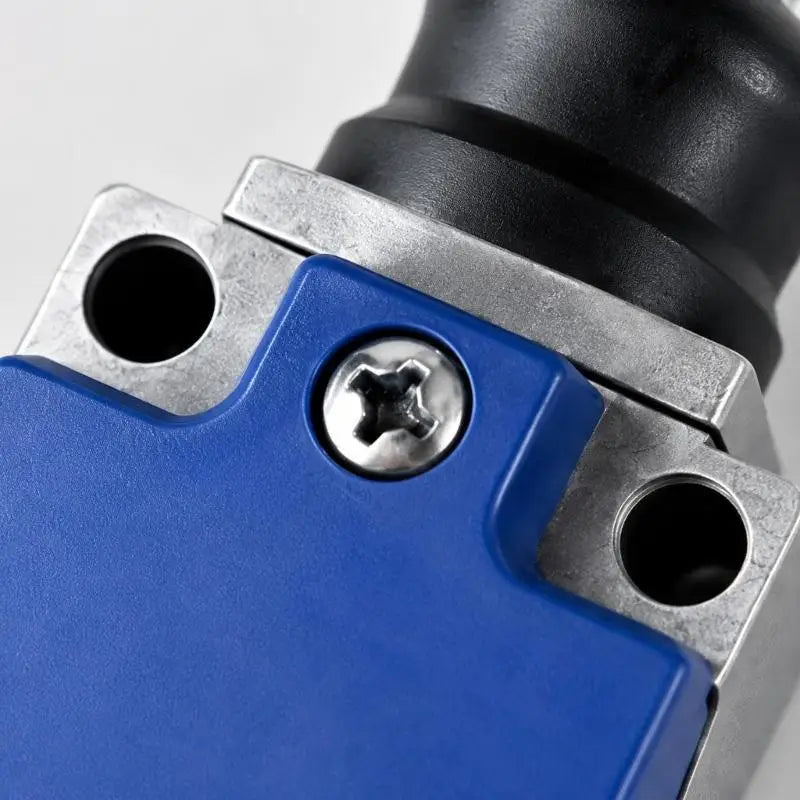

- Four-Hole Frame Mounting: Four evenly spaced mounting holes around the device body make installation straightforward and secure — compatible with standard panel and frame mounting configurations.
- Threaded Cable Entry: A structured threaded cable-entry port at the base provides a clean, defined wiring pathway, supporting tidy and professional cable management during installation.
- Durable ABS Construction: Built with a tough ABS polymer body for long-lasting performance in demanding environments.

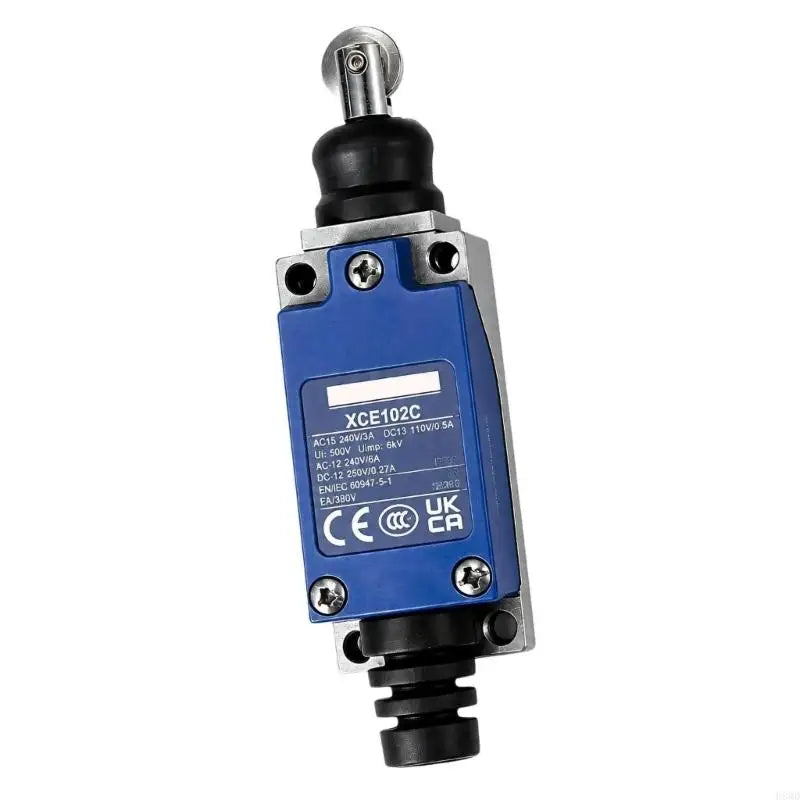

- Multiple Style Options: Available in styles XCE102C, XCE103C, XCE106C, and XCE110C — select the configuration that best suits your application.
- AC/DC Compatible: Works with both AC and DC power sources for flexible integration into a wide range of control systems.
Specifications
| Component Material | ABS |
| Available Styles | XCE102C / XCE103C / XCE106C / XCE110C |
| Power Source | AC / DC |
| Mounting | Four-hole frame mount |
| Cable Entry | Threaded cable entry port |
| Origin | Mainland China |
What's in the Box
- 1 × Limit Control Unit
- 2 × Mounting Screws
- 1 × Product Instruction Card
Important Notes
- Please allow 1–2 cm variation due to manual measurement. Verify dimensions against your application before ordering.
- Colours may vary slightly from product images due to monitor calibration differences.
