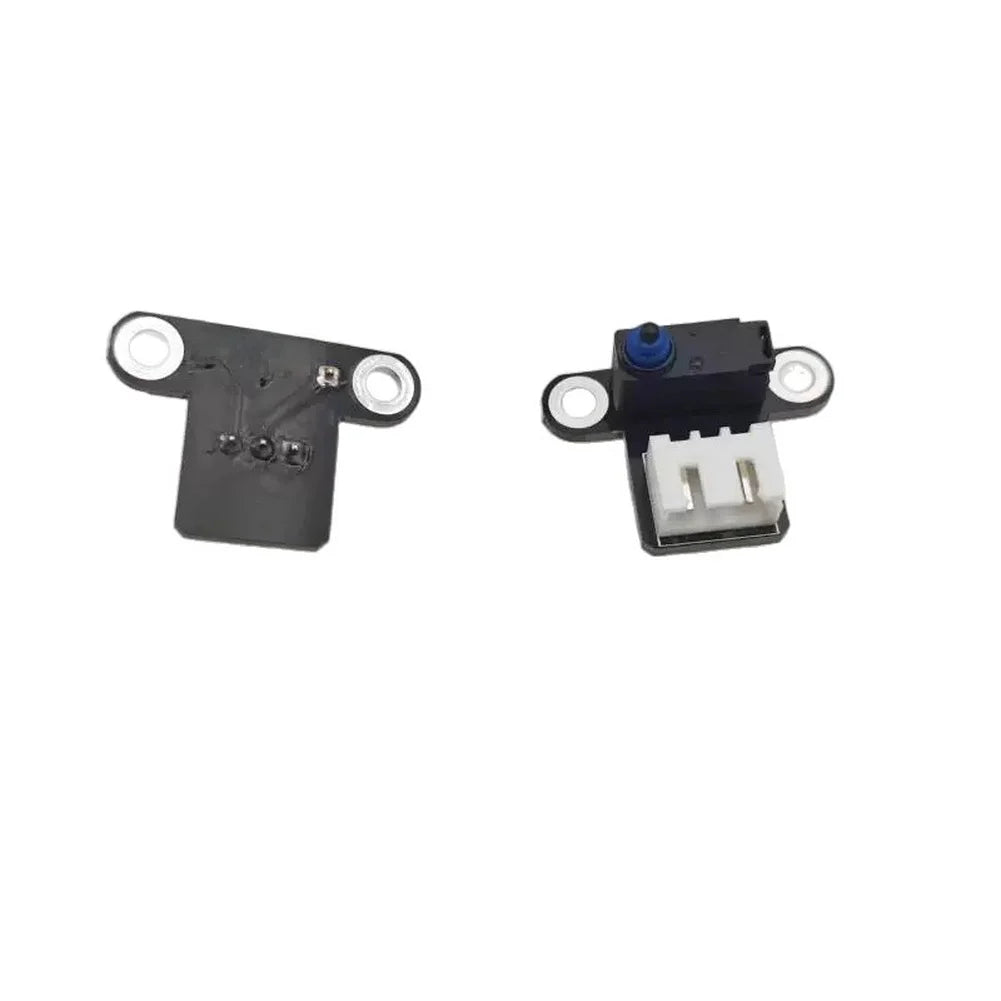

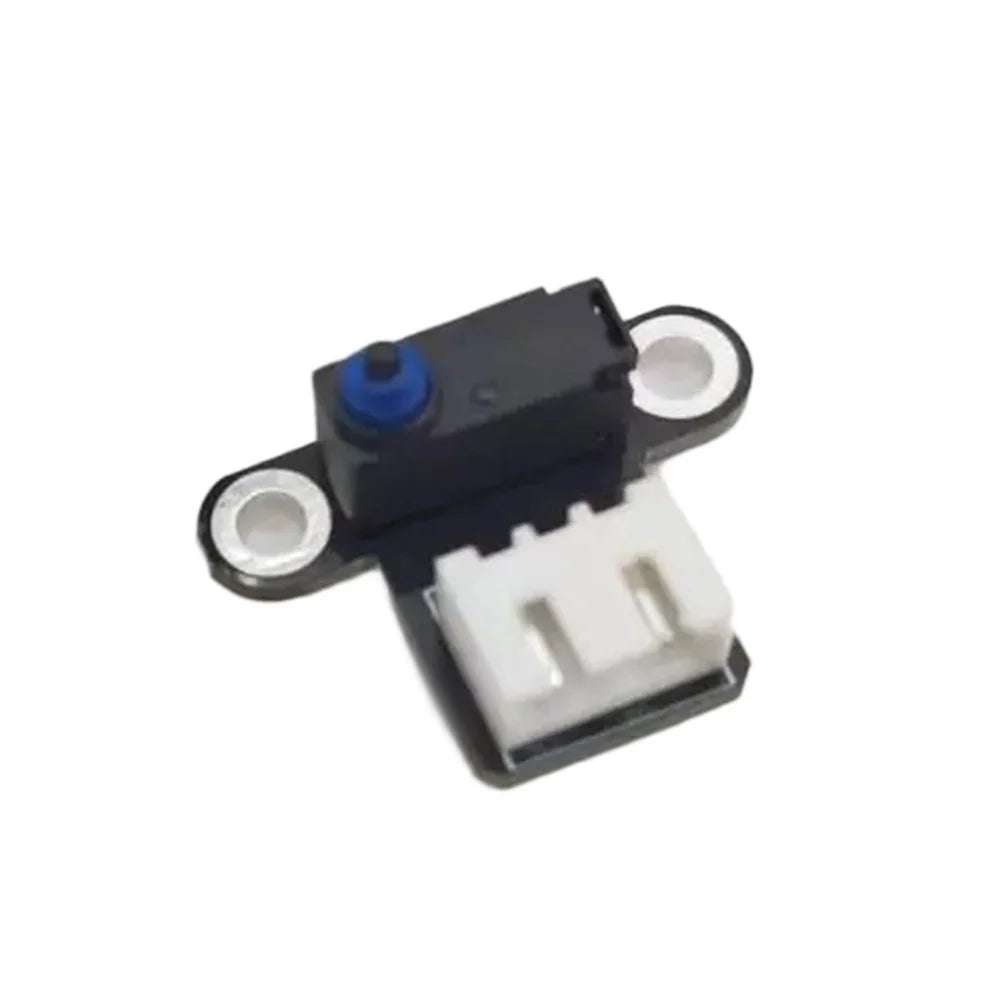

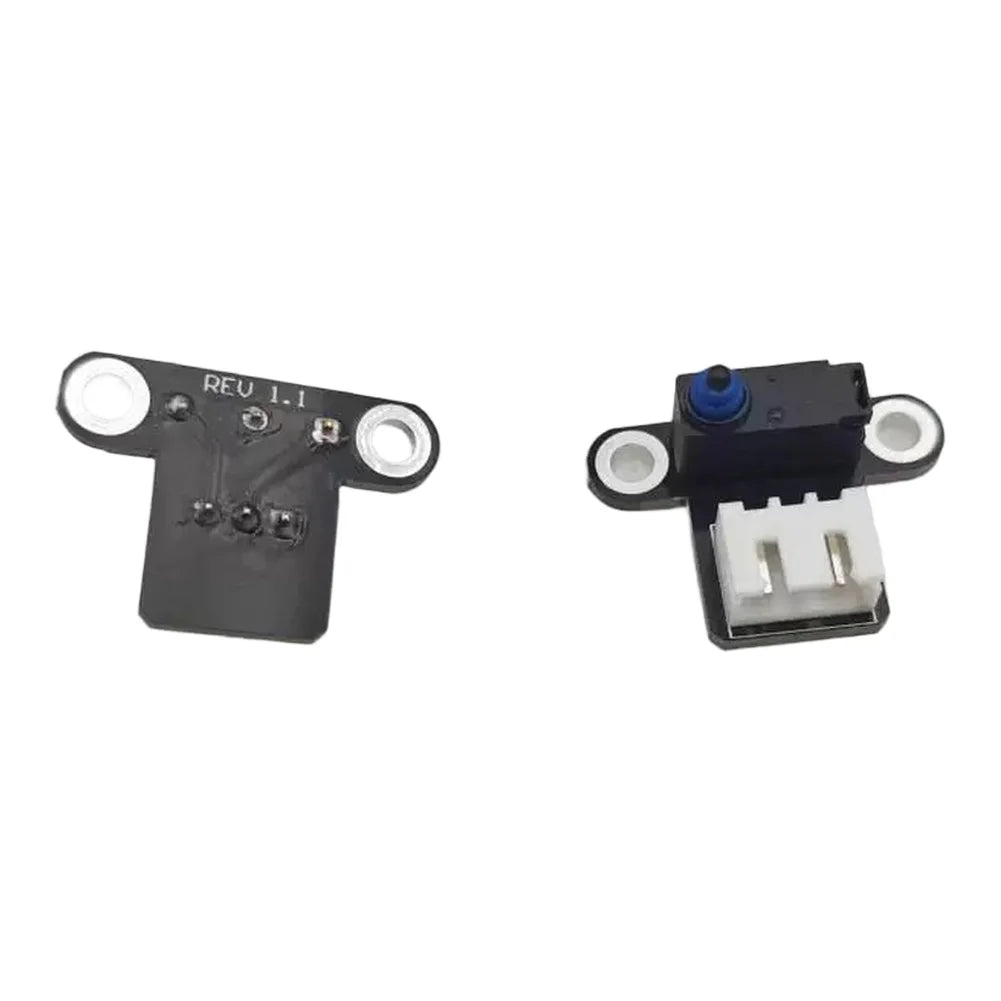

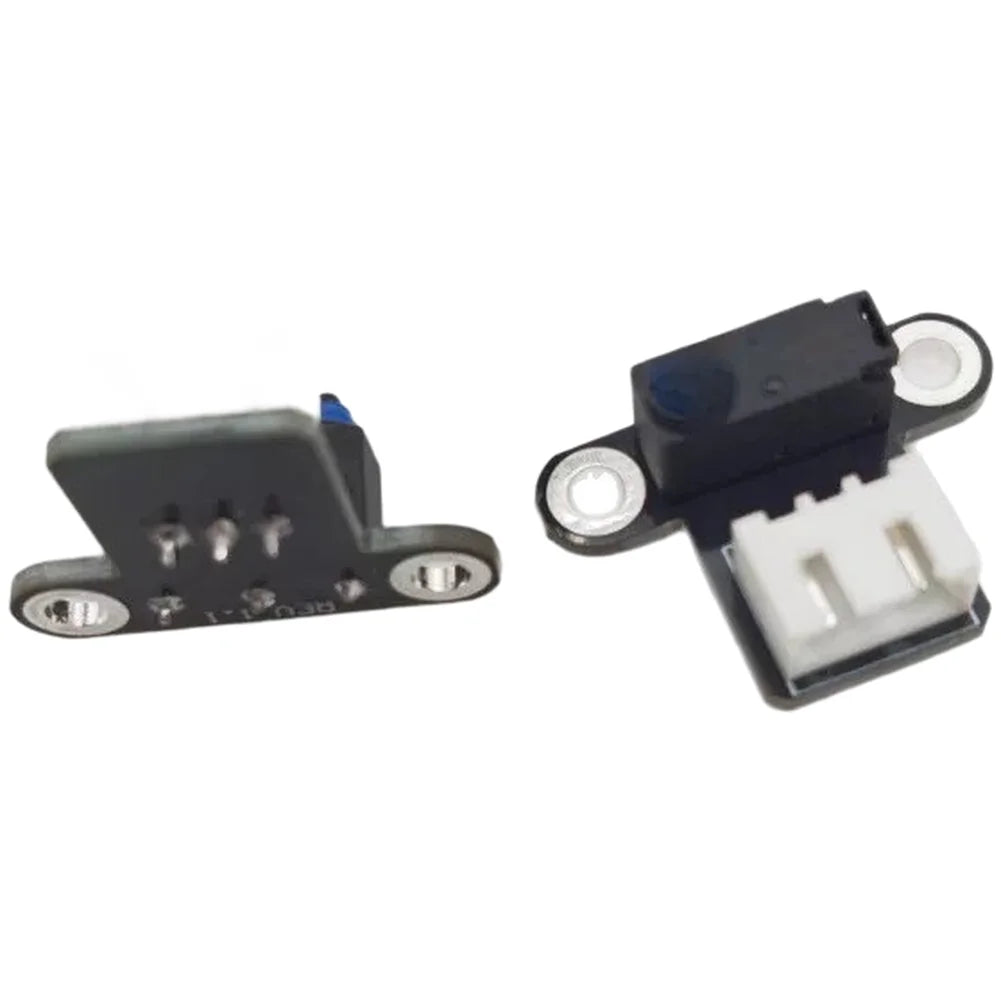

V-Core 4 Limit Switch PCB Board – Precision End-Stop Detection for Reliable 3D Printing
Upgrade your Ratrig V-Core 4 build with this purpose-engineered Limit Switch PCB Board. Designed as a direct replacement for the V-Core 4 end-stop circuit, it delivers fast trigger response, consistent signal output, and rock-solid mechanical durability — so every print layer lands exactly where it should.
Made in Mainland China.
Key Features
- Precision End-Stop Detection: Engineered specifically for the Ratrig V-Core 4 to ensure accurate axis homing and reliable print positioning on every job.
- Fast Trigger Circuitry: Optimized signal response minimizes missed stops and improves print layer consistency for high-quality results.
- Direct Replacement Fit: Matches V-Core 4 PCB dimensions and connector layout exactly — no modifications required for hassle-free installation.
- Sturdy Soldered Construction: High-tin solder pads and reinforced copper traces withstand repeated mechanical contact and vibration over thousands of print cycles.
- Plug-and-Play Wiring: Includes standard pin headers fully compatible with your existing printer wire harness for a quick swap and minimal downtime.
Specifications
| Compatible Printer | Ratrig V-Core 4 |
| Material | PCB (Printed Circuit Board) |
| Battery Required | No |
| Wireless | No |
| Connector | Standard pin headers (printer harness compatible) |
| Size | Standard (matches V-Core 4 OEM dimensions) |
| Color | As pictured |
| Country of Origin | Mainland China |
Package Contents
- 1 × V-Core 4 Limit Switch PCB Board
Notes
Actual color may vary slightly from images due to monitor brightness and lighting conditions. Please allow a minor measurement tolerance for listed dimensions.
