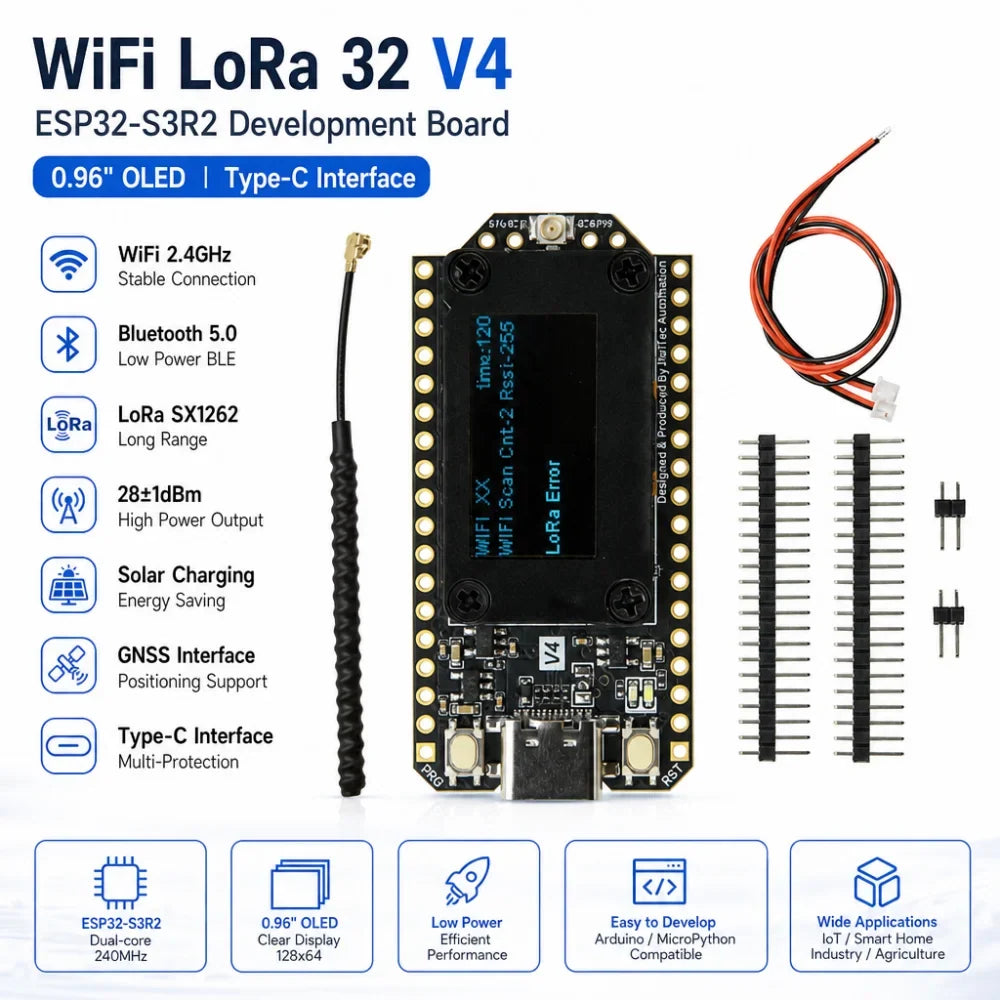

WiFi LoRa 32 V4 – ESP32-S3R2 Tri-Mode IoT Development Board with 0.96" OLED
The WiFi LoRa 32 V4 is the fully upgraded flagship of the popular LoRa development board series. Built on the powerful ESP32-S3R2 microcontroller and the SX-1262 LoRa chip, this board packs tri-mode connectivity — Wi-Fi, Bluetooth LE, and LoRa — into a compact 51.7 × 25.4 × 10.7 mm footprint. With 16 MB of flash, 2 MB PSRAM, a bright 0.96-inch OLED display, solar charging support, and an optional GNSS interface, it is the go-to platform for professional IoT prototyping and deployment.
Made in Mainland China.
Key Features
- Tri-Mode Connectivity: Wi-Fi 802.11 b/g/n (up to 150 Mbps), Bluetooth 5 / BLE / Mesh, and LoRa (433–510 MHz & 863–928 MHz)

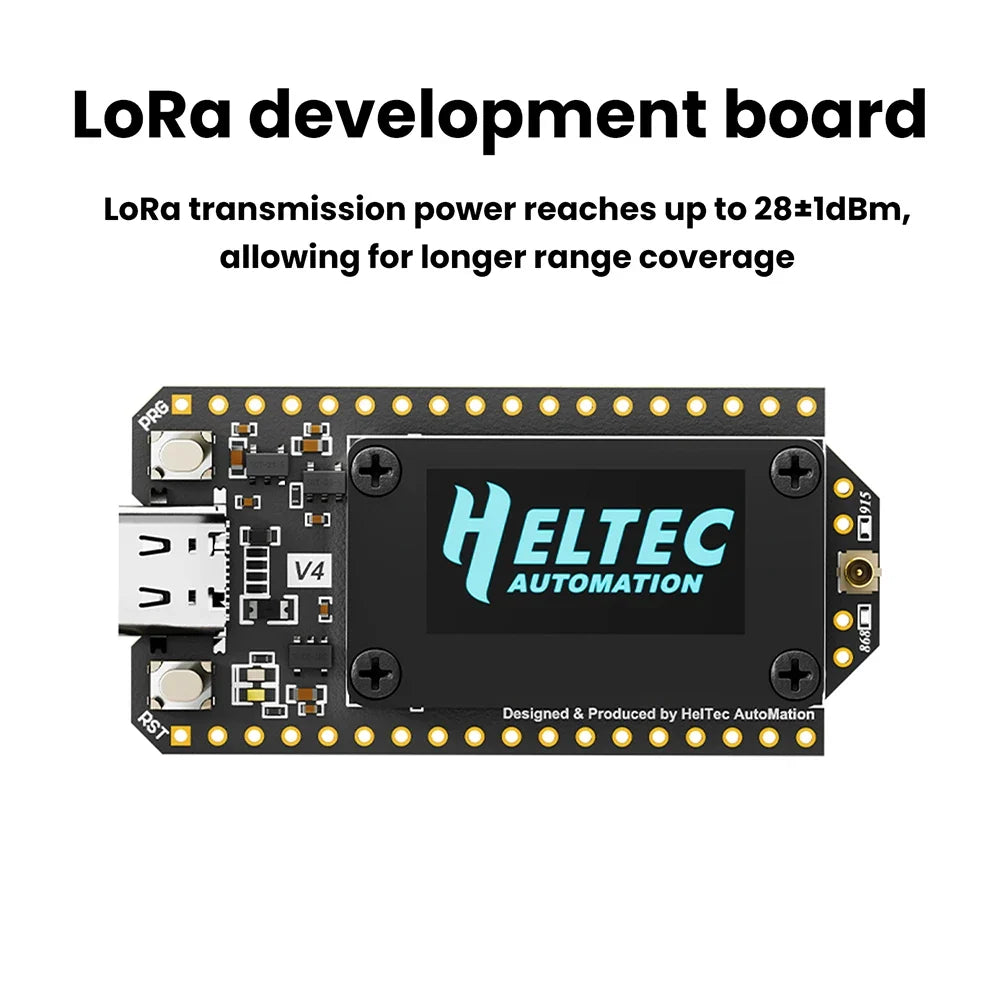

- High-Power LoRa: Transmit power up to 28±1 dBm for extended long-range coverage; receive sensitivity down to –137 dBm
- Robust Memory: 16 MB external flash + 2 MB PSRAM — ideal for complex UIs and data-intensive applications

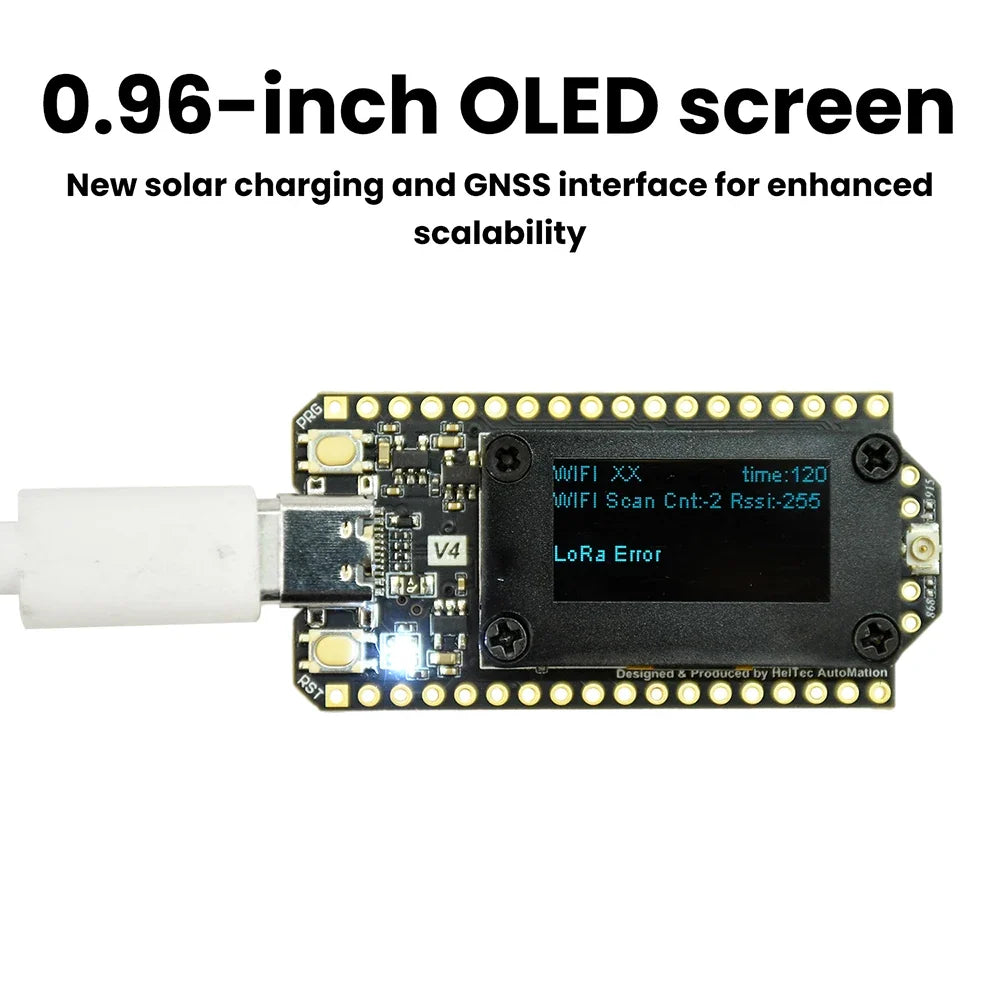

- 0.96" OLED Display: SSD1315 driver, 128×64 resolution, operating range –40°C to 70°C
- Solar & Battery Ready: SH1.25-2P solar panel connector and optimised lithium battery management (3.3–4.2 V)
- GNSS Expansion: New SH1.25-8Pin GNSS interface for positioning applications
- USB Type-C: Multi-layer protection including ESD, short-circuit protection, RF isolation, and voltage regulation; ultra-low standby current <20 µA
- Die-Cast PC Screen Protector: Integrated 2.4 GHz FPC antenna with ruggedised housing
- V3-Compatible Pinout: Drop-in upgrade for existing WiFi LoRa 32 V3 projects
- CE & RoHS Certified
Full Specifications
| Main Controller | ESP32-S3R2 |
| LoRa Chip | SX-1262 |
| LoRa Frequency | 433–510 MHz / 863–928 MHz |
| Max TX Power | 21±1 dBm / 28±1 dBm |
| Max RX Sensitivity | –137 dBm |
| Wi-Fi | 802.11 b/g/n, up to 150 Mbps |
| Bluetooth | BLE 5, Bluetooth Mesh |
| OLED | SSD1315, 0.96", 128×64 |
| Storage | 384 KB ROM | 512 KB SRAM | 16 KB RTC-SRAM | 16 MB Flash | 2 MB PSRAM |
| Power Supply | 5 V USB / Solar; 3.3–4.2 V Battery |
| Hardware I/O | 7× ADC1, 2× ADC2, 7× Touch, 3× UART, 2× I2C, 2× I2S, 4× SPI |

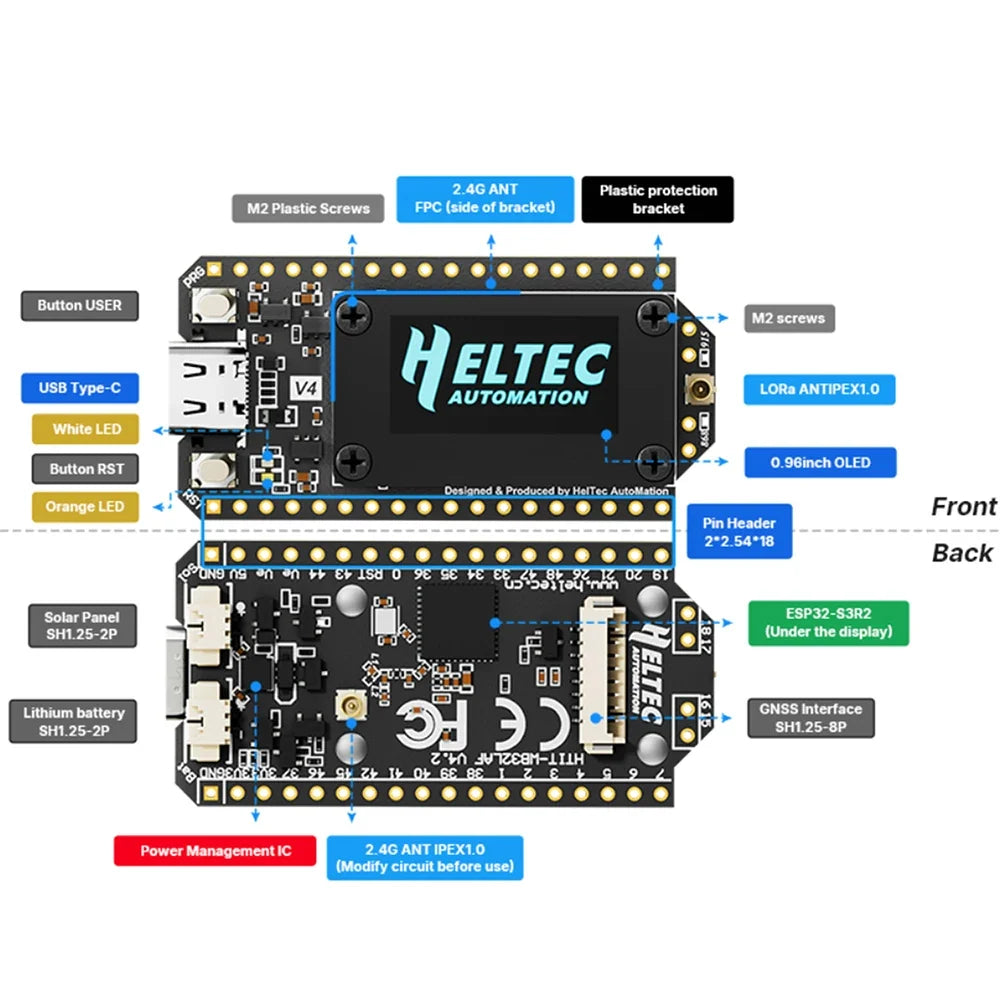

| Interfaces | USB Type-C; SH1.25-2P Li-Battery; SH1.25-2P Solar; 2× IPEX 1.0 ANT; 2× 18-pin + 2× 2-pin 2.54 mm headers |
| Operating Temperature | –40°C to 85°C (OLED: –40°C to 70°C) |

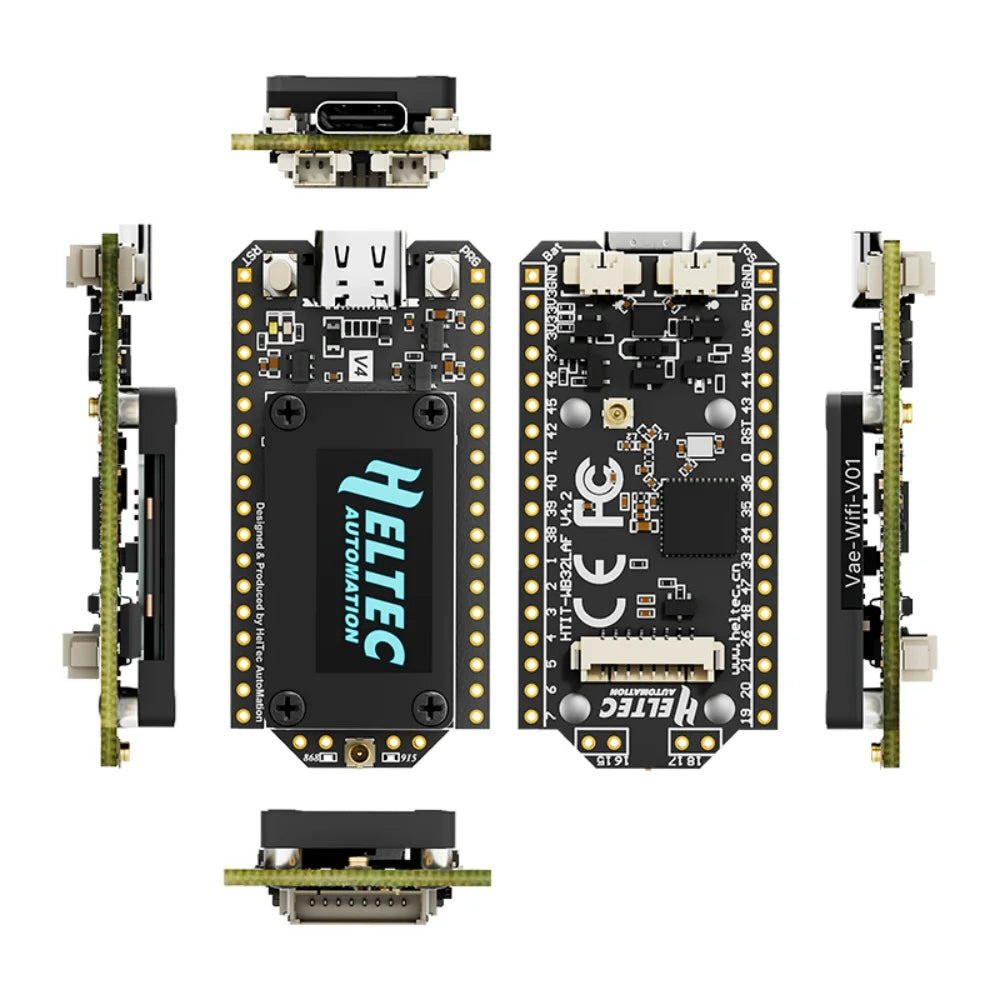

| Dimensions | 51.7 × 25.4 × 10.7 mm |
| Certifications | CE, RoHS |
Application Scenarios
- Smart cities & smart home automation
- Industrial IoT & industrial control systems
- Environmental & agricultural sensor networks
- Asset tracking & GPS/GNSS positioning
- Remote wireless meter reading
- Security & wireless alarm systems
- Maker / geek innovation projects
Expansion Enclosure (Optional)
A custom-fit plastic expansion enclosure is available for the WiFi LoRa 32 V4. It accommodates a 14500 lithium battery (not included), an internal GPS module, and supports an external antenna. Available in Grey, Red, or Blue. Dimensions: 75 × 62 × 18 mm; operating range –10°C to 55°C. Includes housing × 1, screws × 4, battery contacts × 1 set, and keycaps × 2.

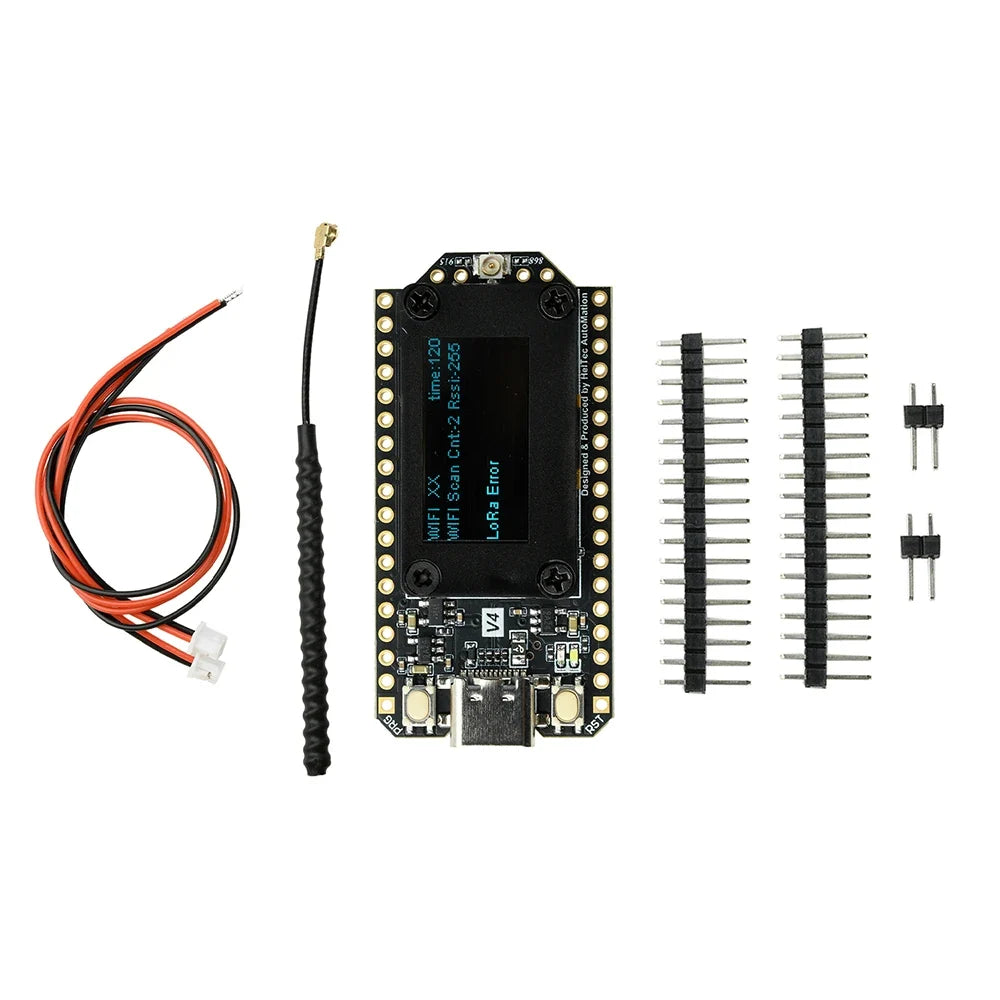

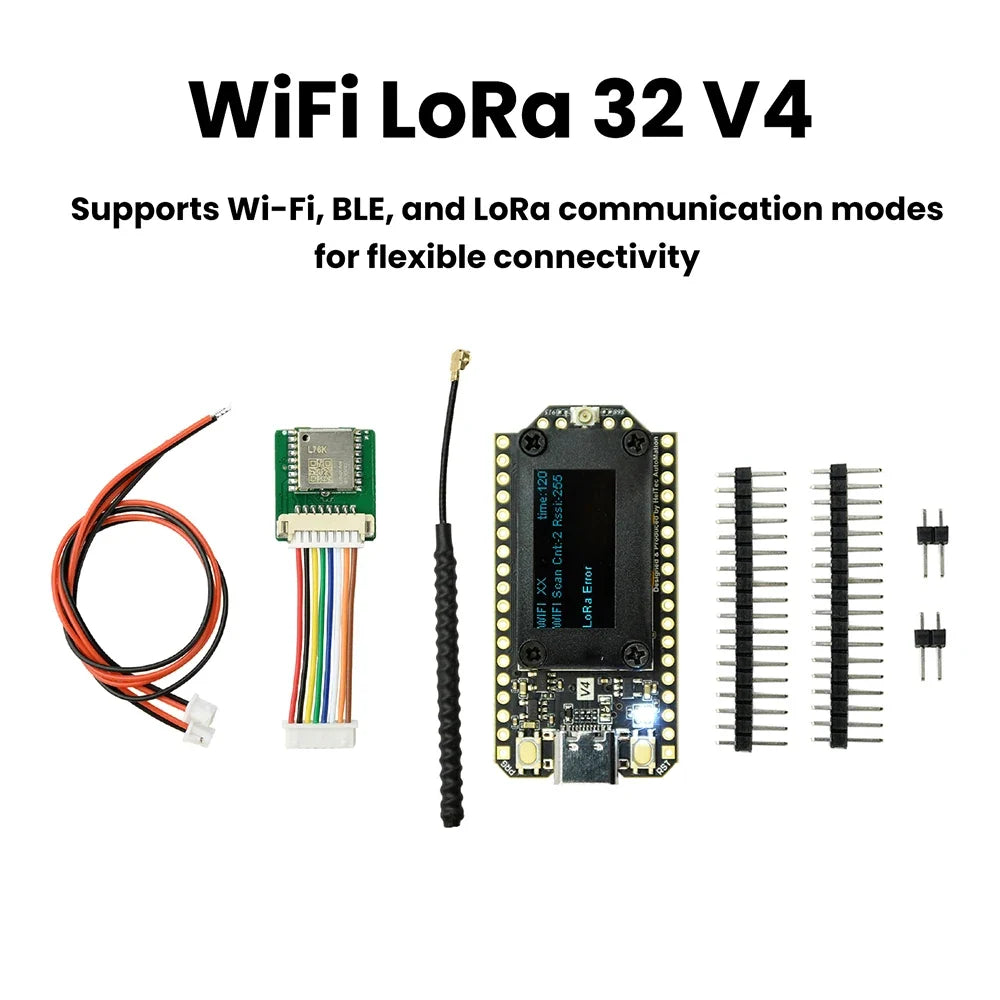

What's in the Box
- 1× WiFi LoRa 32 V4 Development Board
- 1× Spring Antenna
- 2× Terminal Cables
- 4× Pin Header Assemblies
- 1× GPS Module (optional)
- 1× Large Antenna (optional)
You May Also Like
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- B&U 29mm Sinking Minnow Jerkbait Lure – Bass Trout Pike
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What wireless protocols does the WiFi LoRa 32 V4 ESP32-S3R2 development board support?
A: The board supports tri-mode wireless communication: Wi-Fi 802.11 b/g/n (up to 150 Mbps), Bluetooth 5 / BLE / Bluetooth Mesh, and LoRa (433–510 MHz and 863–928 MHz). This makes it extremely versatile for a wide range of IoT applications from short-range home automation to long-range sensor networks.
Q: Is the WiFi LoRa 32 V4 compatible with the previous V3 version?
A: Yes. The V4 maintains the same form factor and pinout as the WiFi LoRa 32 V3, making it a seamless drop-in upgrade for existing projects. The V4 adds enhancements including higher LoRa transmit power (up to 28±1 dBm), solar charging input, GNSS interface, improved battery management, and a USB Type-C port with multi-layer protection.
Q: Can the WiFi LoRa 32 V4 be powered by a solar panel or battery?
A: Absolutely. The board includes a dedicated SH1.25-2P solar panel connector for solar charging and supports lithium battery operation at 3.3–4.2 V via the SH1.25-2P battery connector. It can also be powered at 5 V through its USB Type-C port, giving you flexible power options for remote and off-grid deployments.
Q: What is the LoRa transmission range and power of this development board?
A: The SX-1262 LoRa chip on this board achieves a maximum transmit power of 28±1 dBm and a maximum receive sensitivity of –137 dBm, enabling long-range wireless communication well-suited for applications such as smart agriculture, asset tracking, and remote meter reading across open environments.
