XT90 Power Distribution Board – 7-Output Layout for Model & Electronics Projects

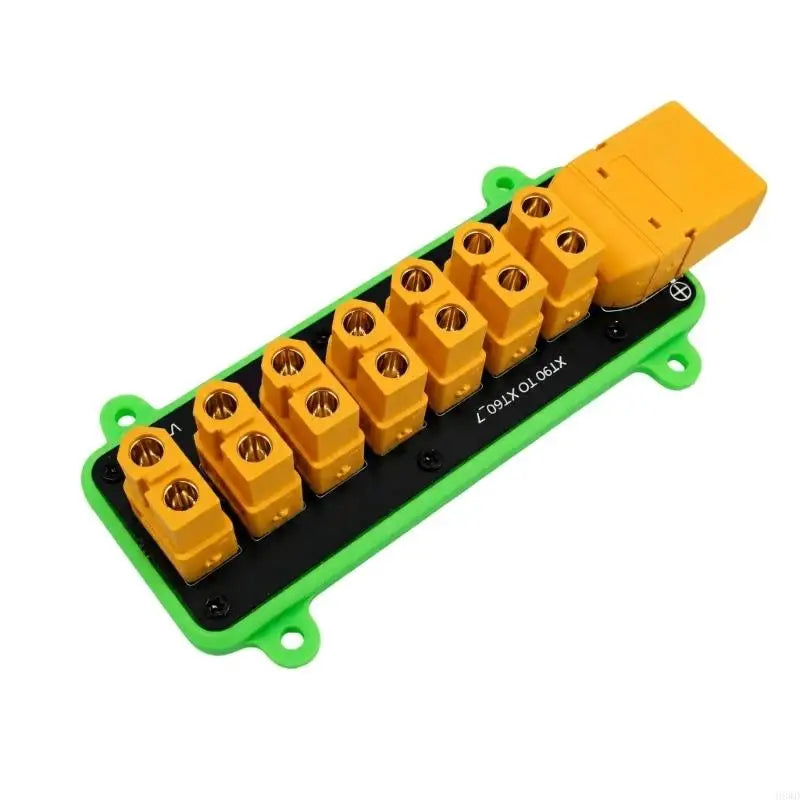

Streamline your model aircraft, RC vehicle, or electronics project wiring with this compact XT90 Power Distribution Board. A single high-current XT90 input feeds seven individual output ports, letting you organize multiple ESCs, battery packs, and accessories from one tidy central hub. Clear positive and negative polarity symbols at the input end make setup straightforward and accurate every time.
Key Features
- 7-Output Connector Layout: One XT90 input distributes power to seven output positions — ideal for multi-motor builds, FPV drones, and complex model electronics.
- High-Current Capacity: Rated up to 100A load current, making it suitable for demanding power-routing applications in RC and model projects.
- Compact Footprint: Measures just approx. 90 × 34 × 23 mm (3.54 × 1.34 × 0.91 in) — easy to fit into tight project enclosures and airframes.
- Visible Polarity Markings: Clearly printed + and − symbols at the input connector guide correct installation at a glance.
- Two Versions Available: Choose Without Fixing Holes for lightweight builds or With Fixing Holes / Mounting Tabs for a secure, bolted installation.
- Durable PCB & ABS Construction: Solid PCB board paired with moulded ABS connector housings ensures reliable, long-lasting power routing.
Specifications
| Input Connector | XT90 High-Current Connector |
| Output Ports | 7 |
| Max Load Current | 100A |

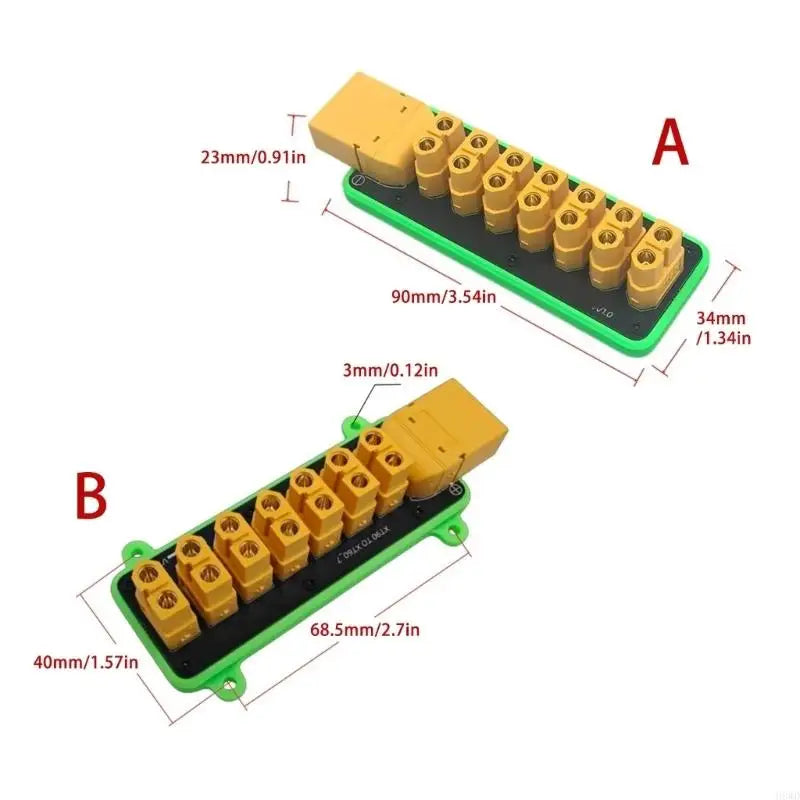

| Dimensions | Approx. 90 × 34 × 23 mm / 3.54 × 1.34 × 0.91 in |
| Materials | ABS & PCB Circuit Board |
| Versions | Without Fixing Holes / With Fixing Holes (Mounting Tabs) |
| Suitable For | Model aircraft, ESCs, battery packs, power distribution |
| Country of Origin | Made in Mainland China |
Package Includes
- 1 × Power Distribution Board (standard)
- 1 × Power Distribution Board with Mounting Tabs
