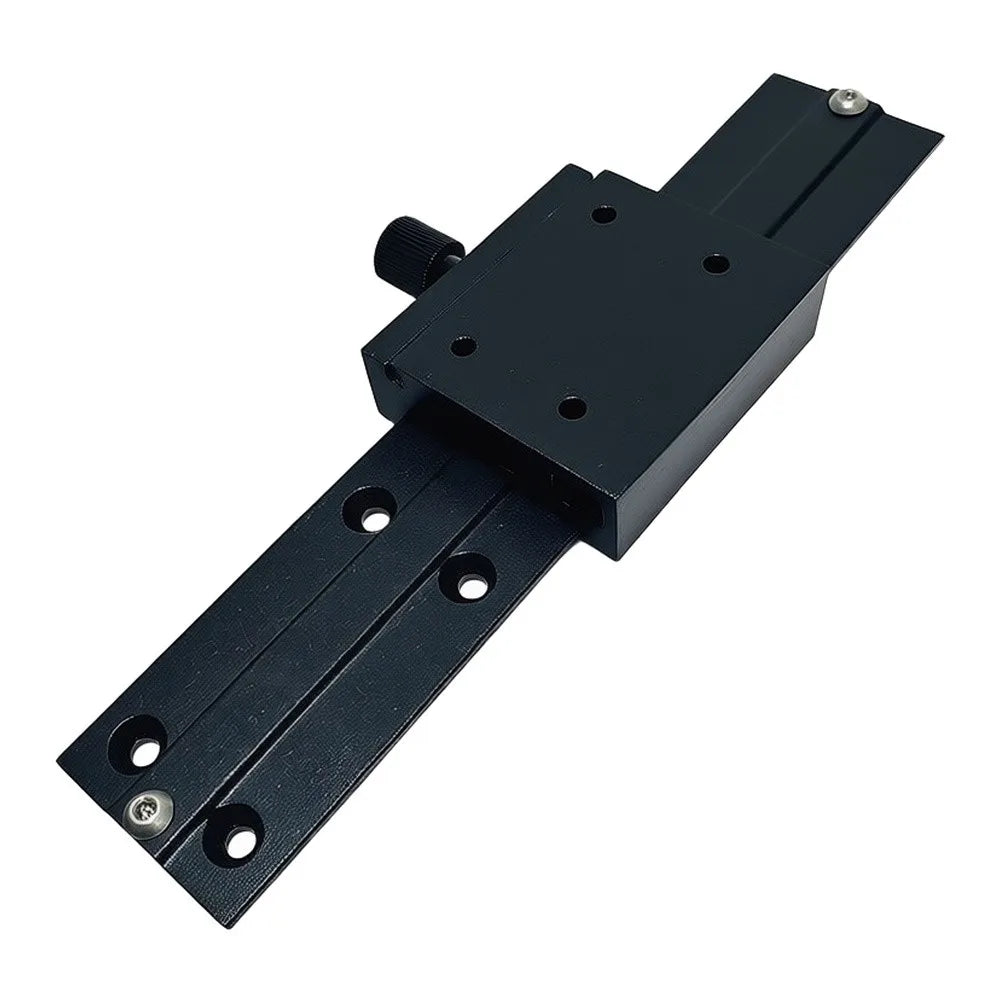

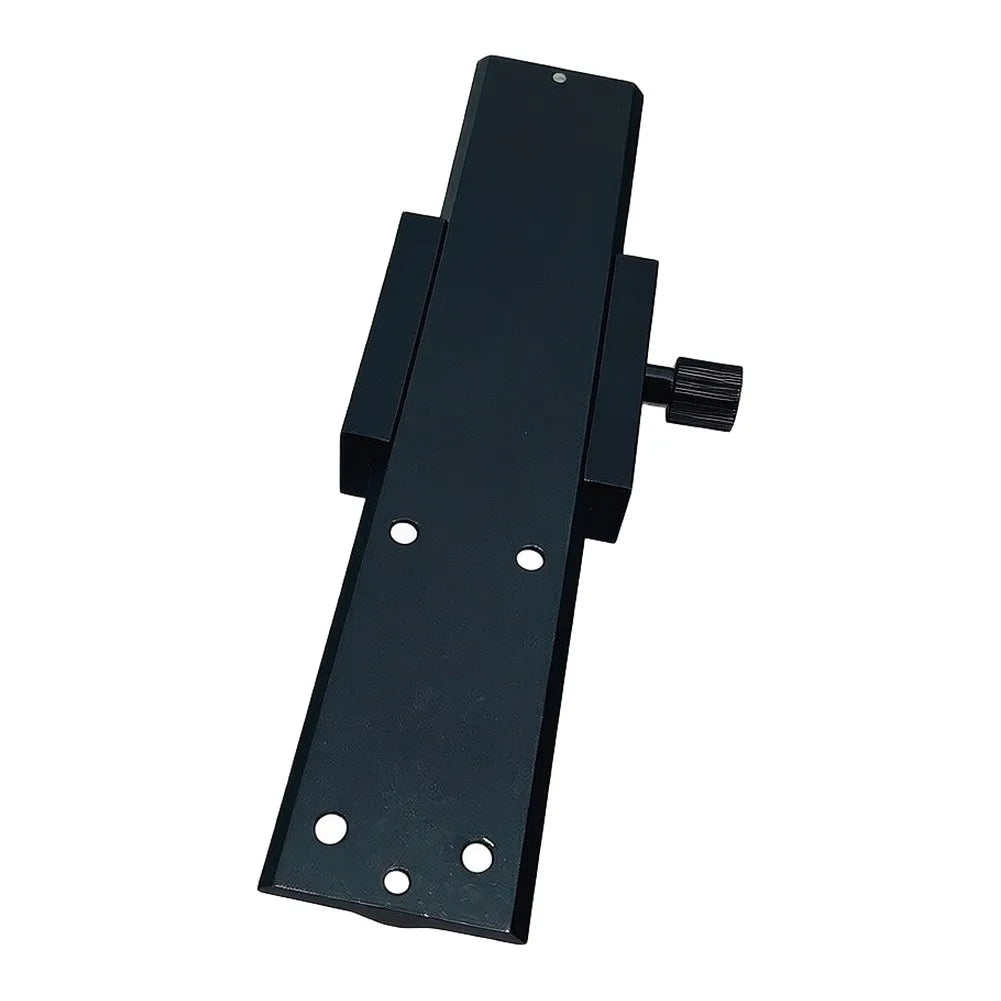

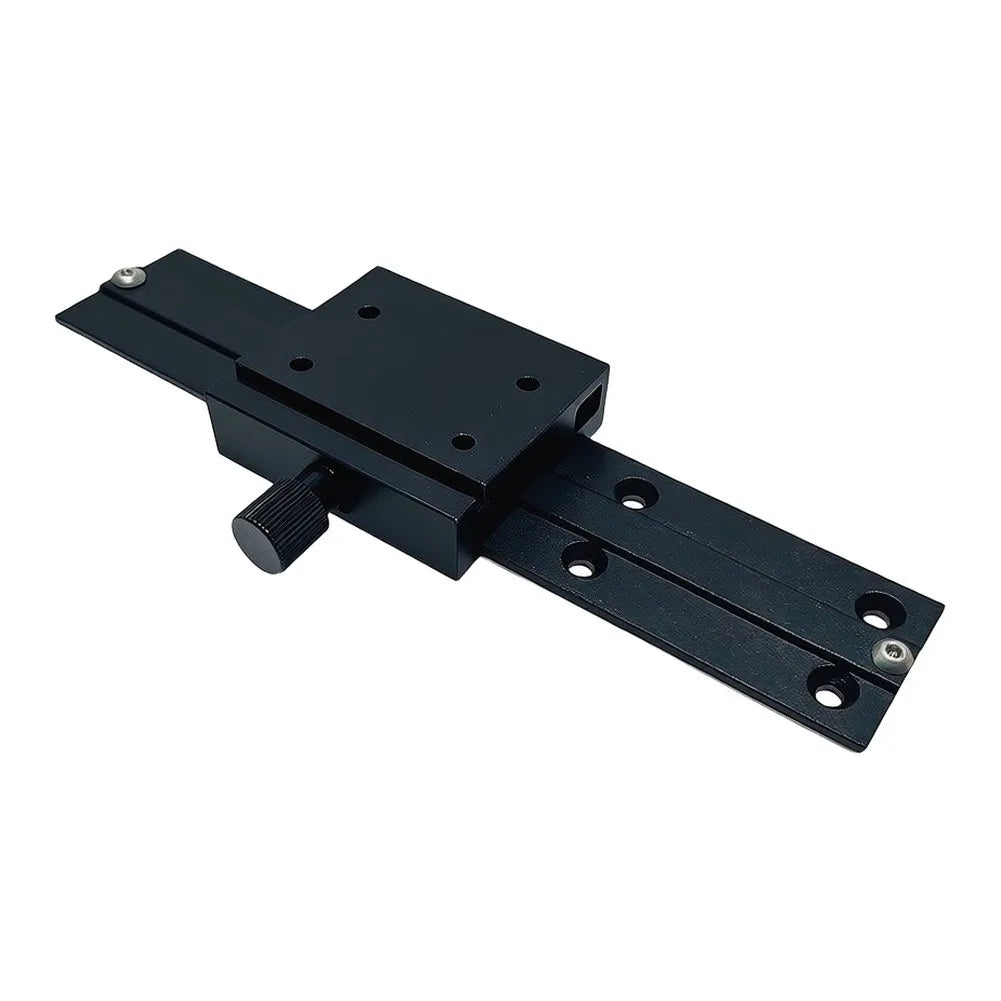

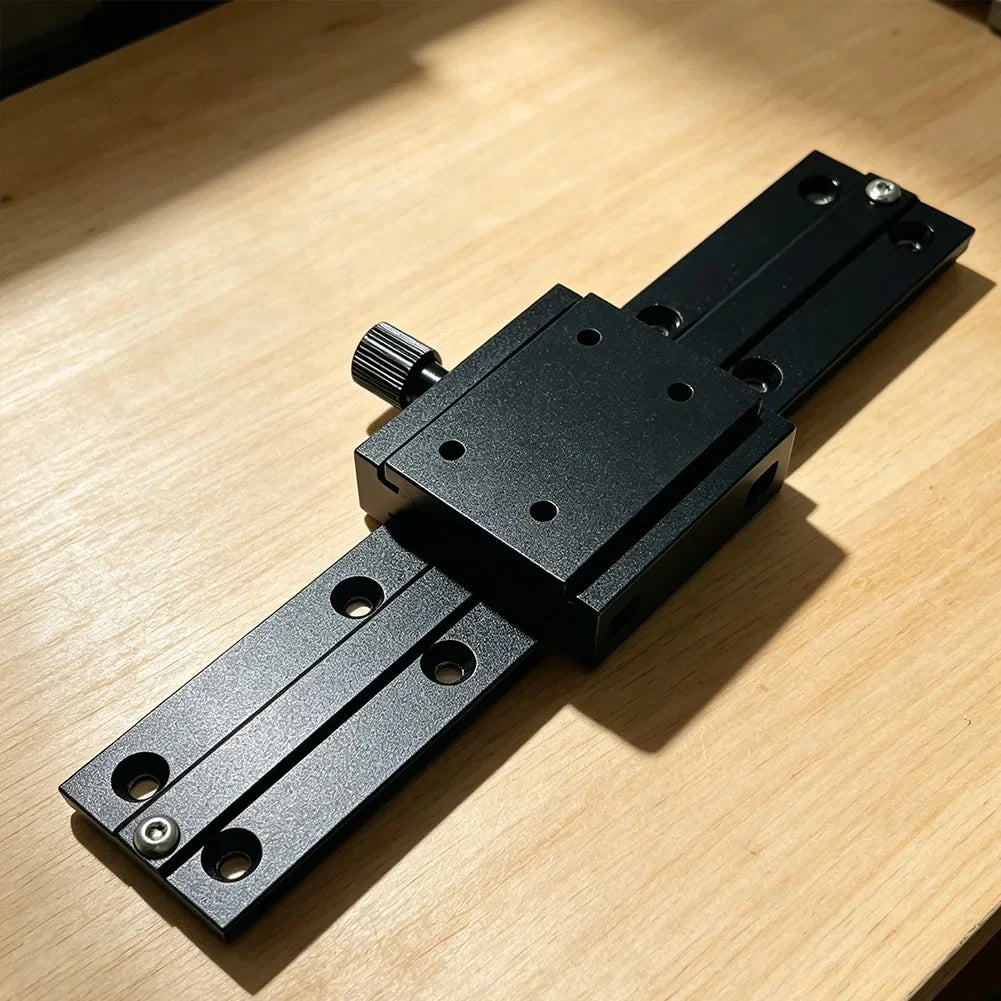

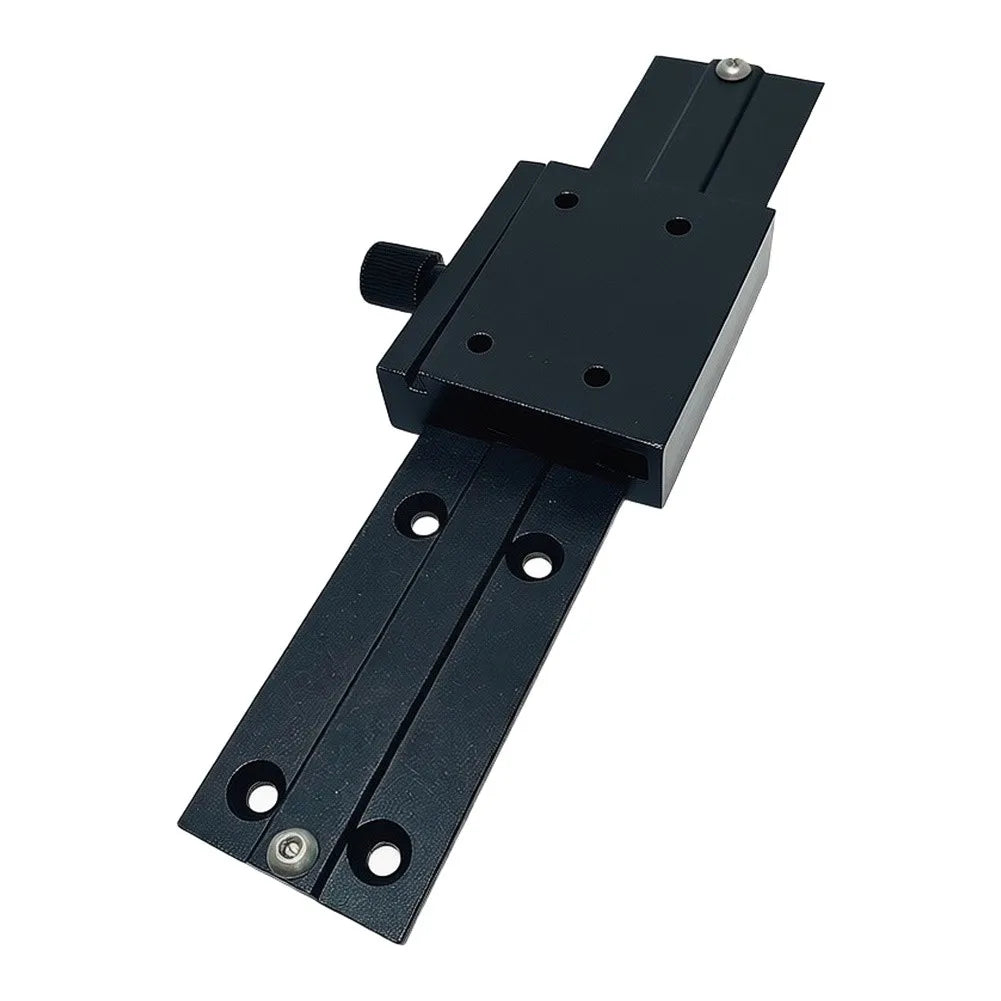

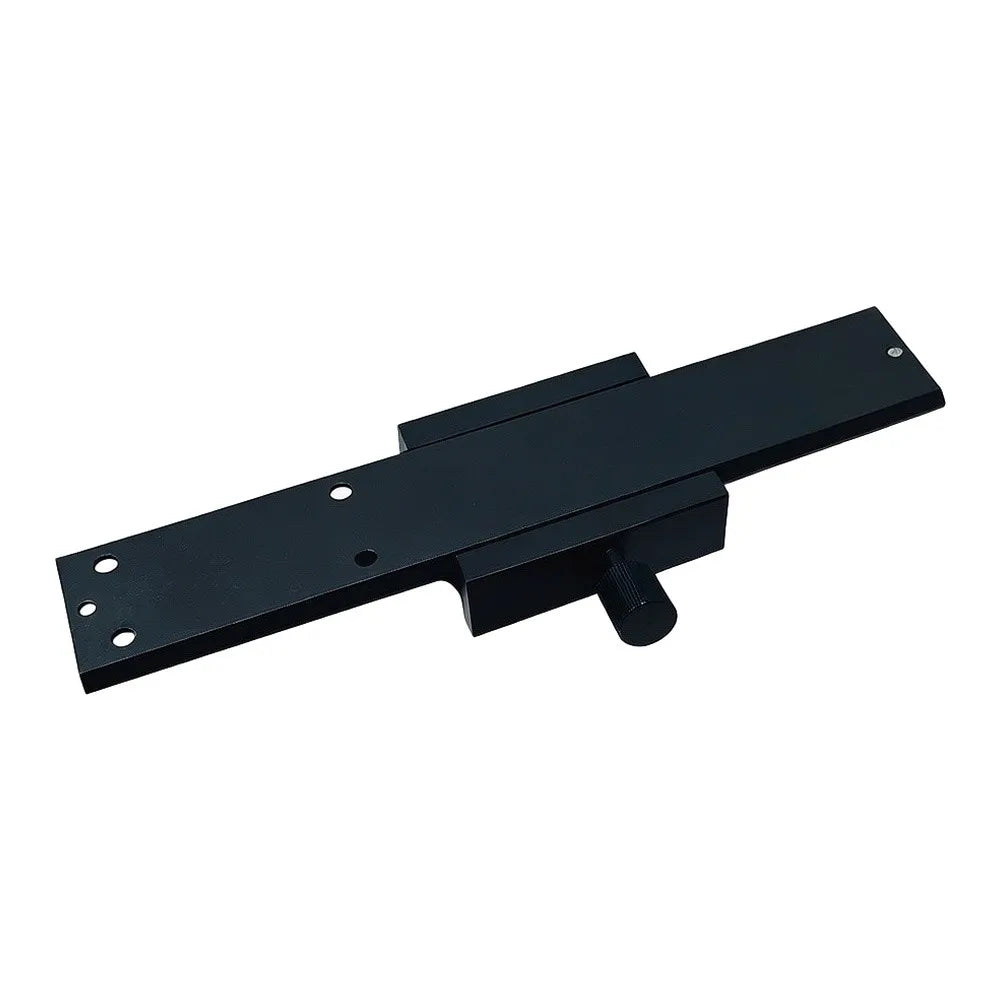

Z-Axis Lifting Mount Bracket for Laser Engraver Heads
Z-Axis Lifting Mount Bracket for Laser Engraver Heads
Z-Axis Lifting Mount Bracket for Laser Engraver Heads
Upgrade your DIY desktop engraving machine with this precision-engineered Z-Axis Lifting Mount Bracket. Designed for high-power engraver modules, this all-metal bracket delivers rock-solid stability, smooth vertical height adjustment, and consistent processing accuracy — making it an essential accessory for hobbyists and makers alike.
Key Features
- Premium All-Metal Construction: Built using an integrated metal molding process with a black anti-rust, wear-resistant surface treatment. Far more rigid than plastic alternatives — zero deformation or wobble during long engraving sessions, effectively eliminating machining errors caused by head vibration.
- Precise Z-Axis Height & Focus Adjustment: Equipped with a smooth sliding rail and fine-tuning screw mechanism, this Z-axis slide module allows accurate vertical height calibration. Freely set the optimal focal distance for different material thicknesses to eliminate blurred engraving, shallow cuts, and uneven carving — maximizing detail and fineness.
- Optimized for High-Power Modules: Features a reinforced bearing and fixed clamping structure that firmly locks high-power engraver heads in place. No slipping or offset during high-energy operation or extended heat dissipation cycles. Compatible with most mainstream small DIY desktop engraving machines.
- Smooth Sliding & Firm Screw Locking: The sliding rail fit combined with a screw locking system ensures effortless height adjustment followed by quick, secure positioning. Maintains zero displacement during high-speed machine operation for consistent batch engraving results.
- Easy Installation & Versatile DIY Use: Compact and lightweight with standard mounting holes and all necessary accessories included. Quick assembly and disassembly — no complex modifications required. Ideal for wood, acrylic, leather, and other material engraving and cutting applications.
Specifications
- Part Name: Mounting Bracket
- Material: Metal
- Size: 65mm × 60mm × 45mm
- Color: Black
- Country of Origin: Made in China
Package Contents
- 1 × Z-Axis Lifting Mounting Bracket
Important Notes
- Actual color may vary slightly from images due to monitor brightness and lighting conditions.
- Please allow slight manual measurement deviation for listed dimensions.
Related Products You May Like
Looking to complete your creative workspace? Check out these related items in our store:
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- B&U 29mm Sinking Minnow Jerkbait Lure – Bass Trout Pike
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What engraving machines is this Z-axis lifting mount bracket compatible with?
A: This Z-axis lifting mount bracket is optimized for high-power laser engraver modules and is compatible with most mainstream small DIY desktop engraving machines. It features standard mounting holes to support quick assembly across a wide range of setups without complex modifications.
Q: How does the Z-axis focus adjustment work on this bracket?
A: The bracket uses a smooth sliding rail combined with a fine-tuning screw adjustment structure. Simply loosen the screw, slide the engraver head to the optimal focal distance for your material thickness, then tighten the screw to lock the position firmly — ensuring consistent, precise engraving results every time.
Q: What materials can I engrave or cut using this mounting bracket?
A: This Z-axis mount bracket supports engraving and cutting across a variety of materials including wood, acrylic, leather, and more. Its firm locking mechanism and zero-displacement design make it suitable for both detailed engraving and cutting tasks on different material thicknesses.
Q: Is this bracket made of metal or plastic?
A: This bracket is constructed from metal using an integrated molding process with a black anti-rust and wear-resistant surface treatment. This gives it superior structural rigidity compared to plastic brackets, preventing deformation or shaking during long-term operation.
