Magnetic Door Hinge Jig – Accurate Mortise Installation Tool

Magnetic Door Hinge Jig – Precision Mortise Template for Home, Garage & Workshop

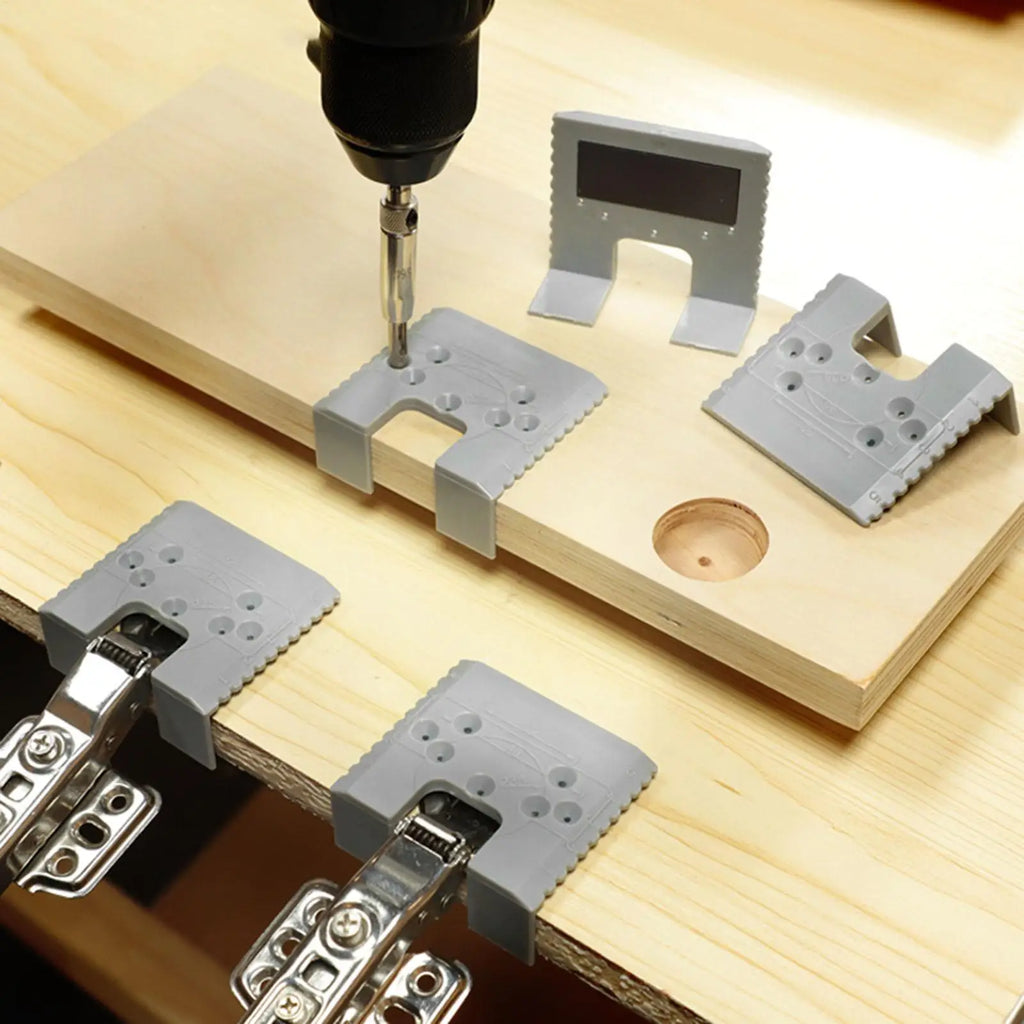

Take the guesswork out of hinge installation with this Magnetic Door Hinge Jig. Whether you're a seasoned carpenter or a weekend DIY enthusiast, this compact ABS template delivers professional-grade accuracy every single time. Simply position, align, and drill — the built-in magnetic base holds everything firmly in place so your bit goes exactly where it needs to go.

Made in Mainland China.

Key Features

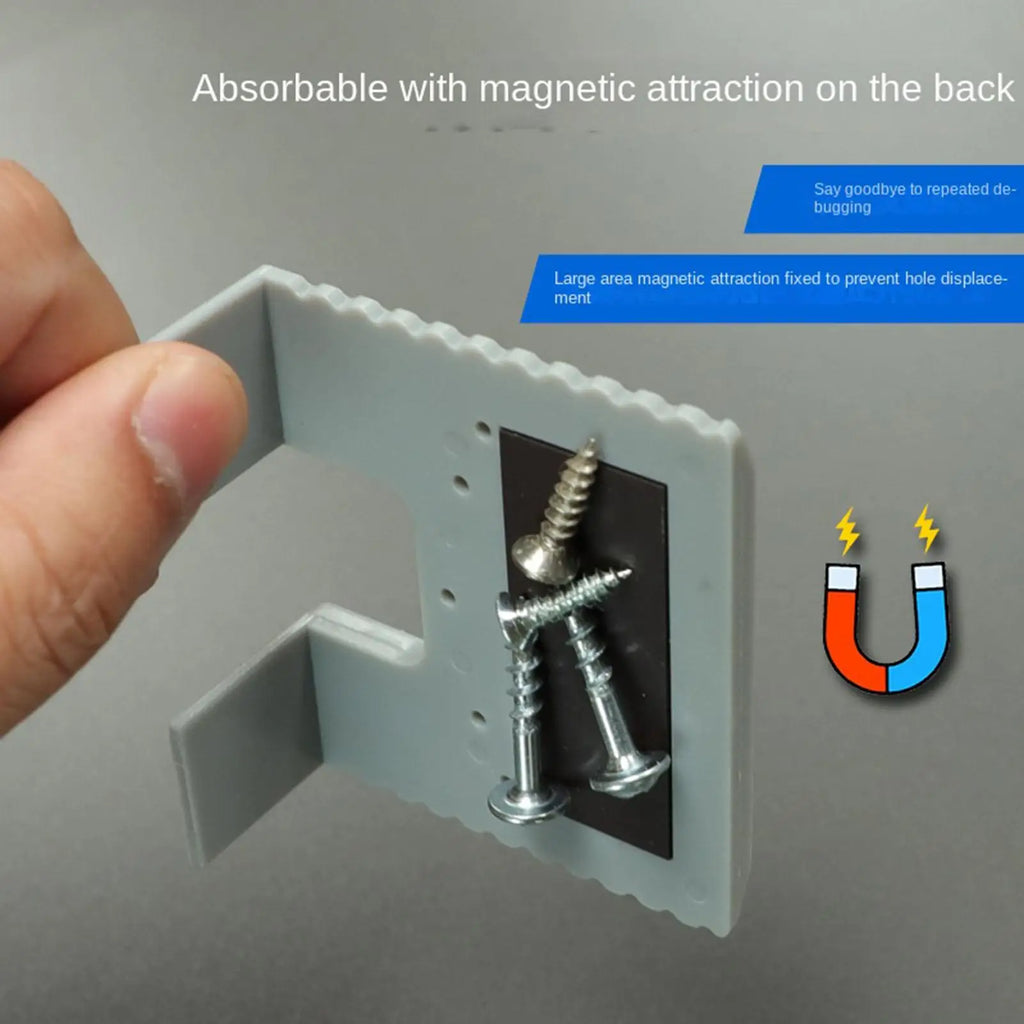

• Large-Area Magnetic Base: Prevents drill bit shifting during operation, ensuring precise alignment and dramatically reducing costly errors — saving you time on every door or cabinet project.

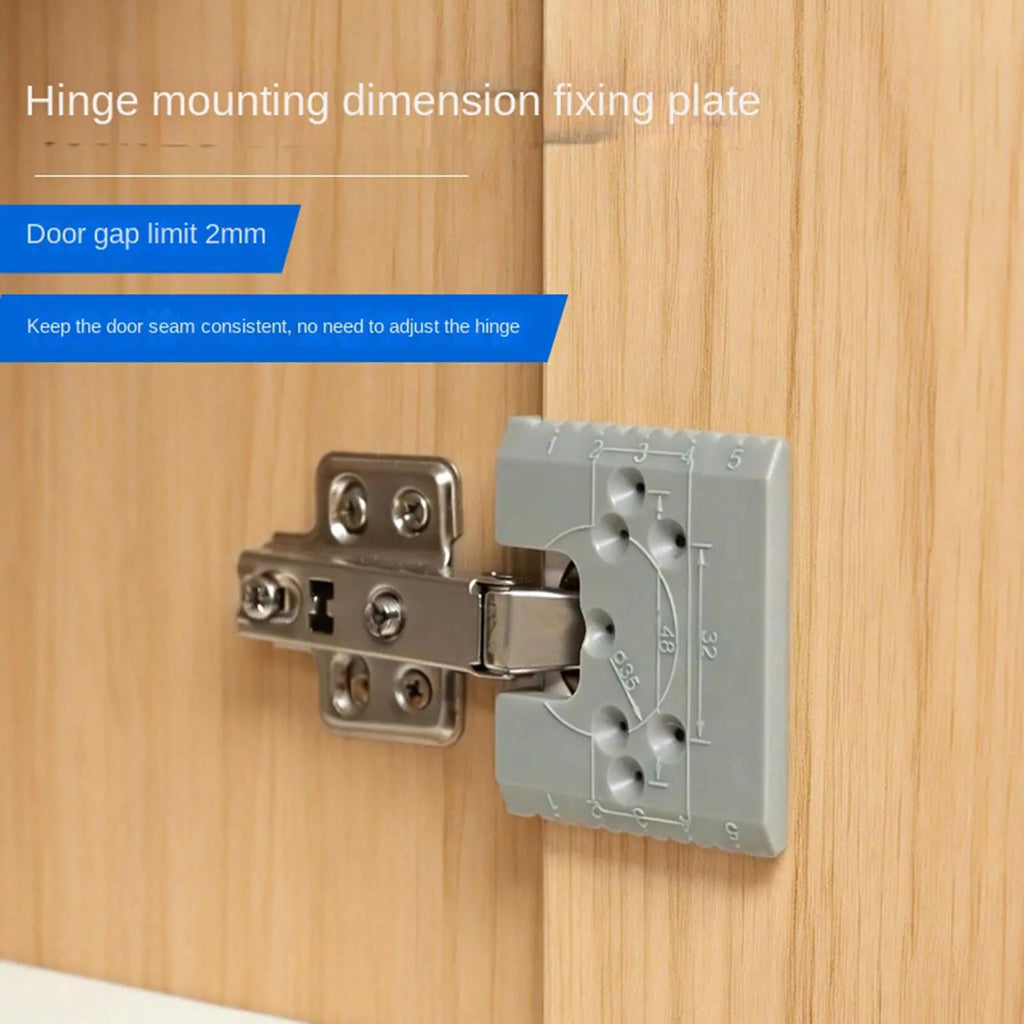

• 2mm Precision Groove Design: Simplifies mechanical alignment standardization so every hinge installation is consistent, clean, and aesthetically perfect — no manual adjustments needed.

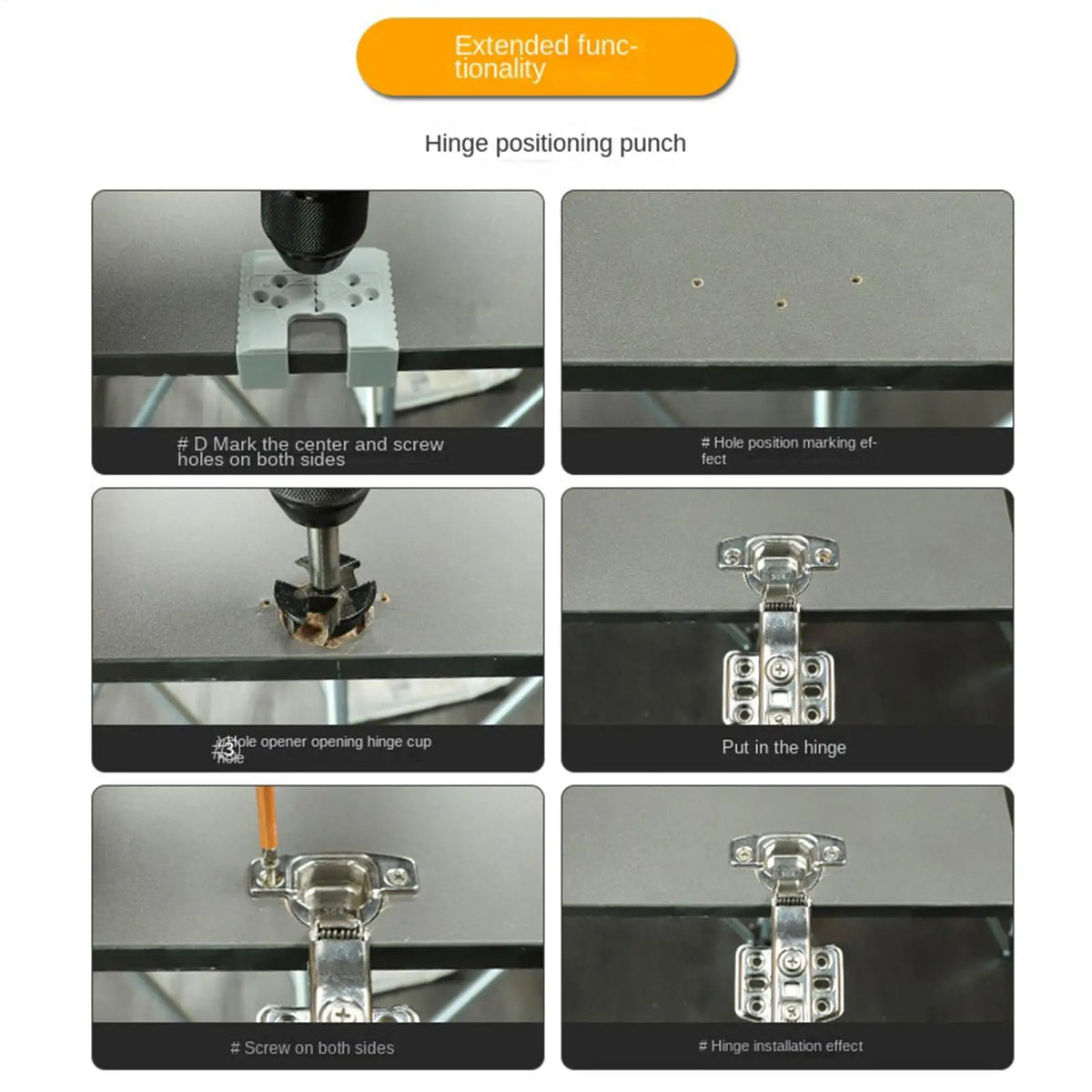

• Accurate Hole Positioning: Reliable drill bit guidance delivers perfect hinge hole placement, boosting efficiency whether you're working on doors, furniture, or custom cabinetry.
• Robust ABS Construction: Impact-resistant material maintains structural integrity under heavy, repeated use — built for extended service life and dependable routing results.

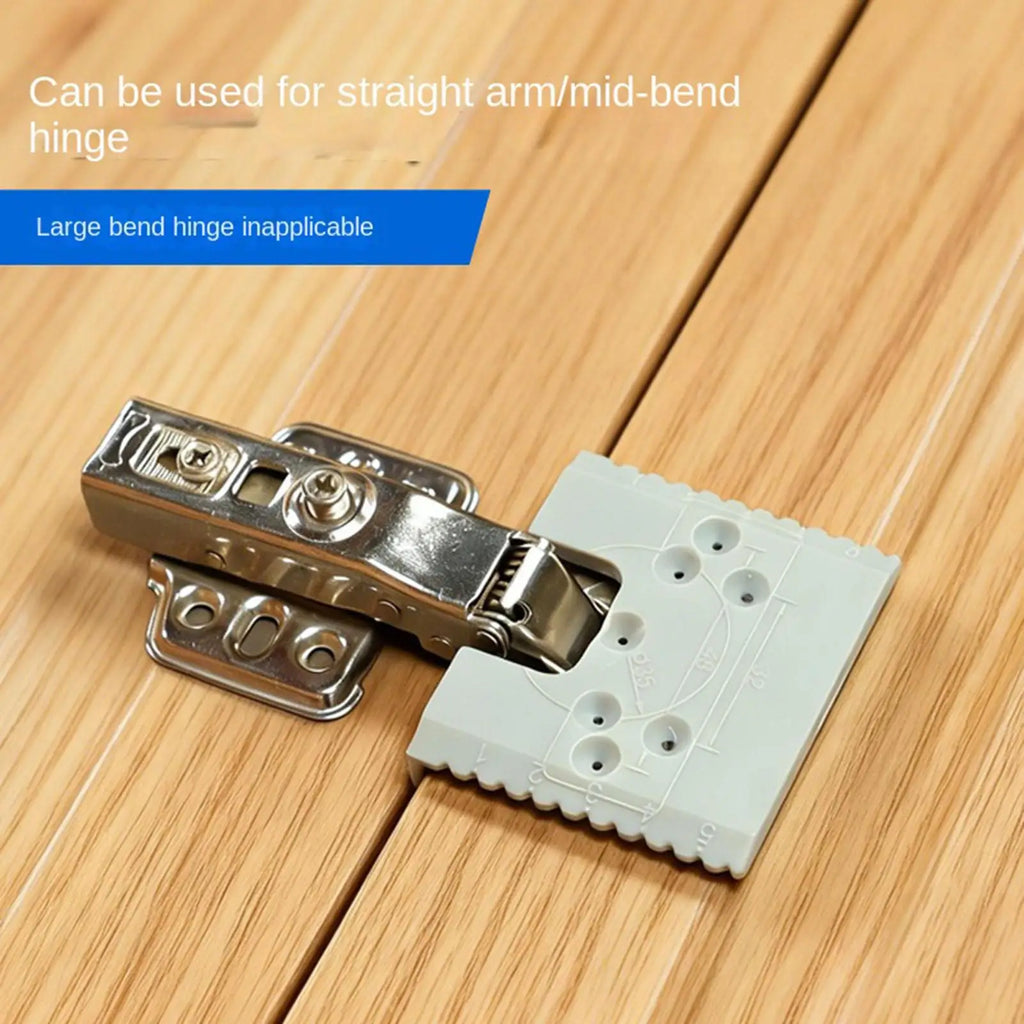

• Multi-Scenario Versatility: Equally at home indoors or outdoors, this jig adapts seamlessly to different surfaces and hinge sizes, making it a must-have in any home, garage, or professional workshop.

Specifications

• Material: ABS (impact-resistant)

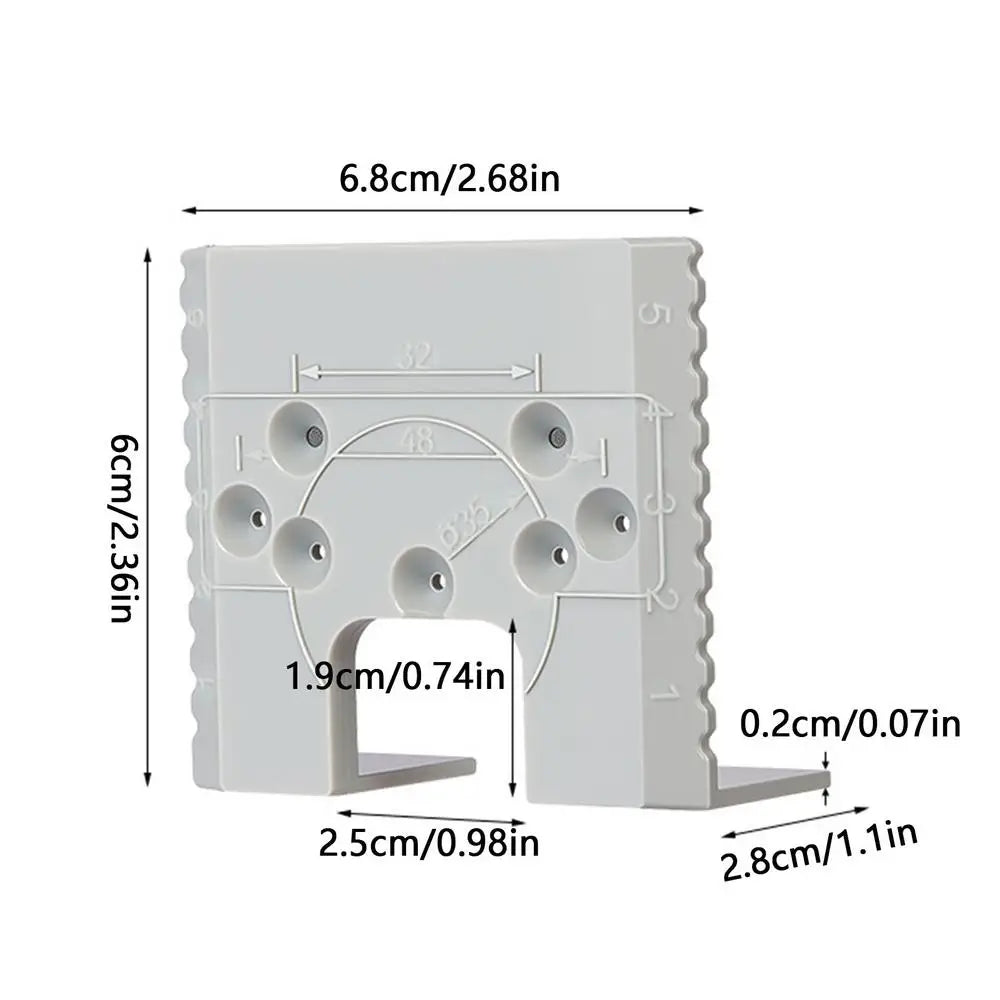

• Dimensions: Approx. 6.8 × 6 × 2.8 cm / 2.68 × 2.36 × 1.1 inches
• Weight: 25 g
• Country of Origin: Made in Mainland China

What's in the Box?

• 1 × Door Hinge Jig

Related Products You May Like

Looking for more tools and workshop essentials? Check out these popular picks:

• B&U 29mm Sinking Minnow Jerkbait Lure – Bass Trout Pike
• Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What materials is the magnetic door hinge jig made from?

A: The hinge jig is crafted from high-quality, impact-resistant ABS plastic. This material ensures the jig holds its shape and structural integrity even under heavy, repeated use, making it suitable for both occasional DIY projects and regular professional woodworking tasks.

Q: Will this door hinge mortise jig work for both indoor and outdoor door installations?

A: Yes — the jig is designed for multi-scenario use and works equally well for indoor and outdoor doors, cabinet hinges, furniture assembly, and garage door frames. Its flexible yet robust build adapts to a variety of surfaces and hinge sizes.

Q: How does the magnetic feature help during hinge installation?

A: The large-area magnetic structure on the base of the jig holds the tool firmly against the door edge or frame, preventing the drill bit from wandering off-position. This means cleaner mortise cuts, more consistent hole placement, and faster installation — especially useful when working alone.

Q: What size is the door hinge jig?

A: The jig measures approximately 6.8 × 6 × 2.8 cm (2.68 × 2.36 × 1.1 inches) and weighs just 25 g, making it lightweight, portable, and easy to handle on any job site or home workshop.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
