TK-20P 10,000W Dual-Pulse Portable Spot Welder – Foot Pedal Kit
TK-20P 10,000W Dual-Pulse Portable Spot Welder – Foot Pedal Kit

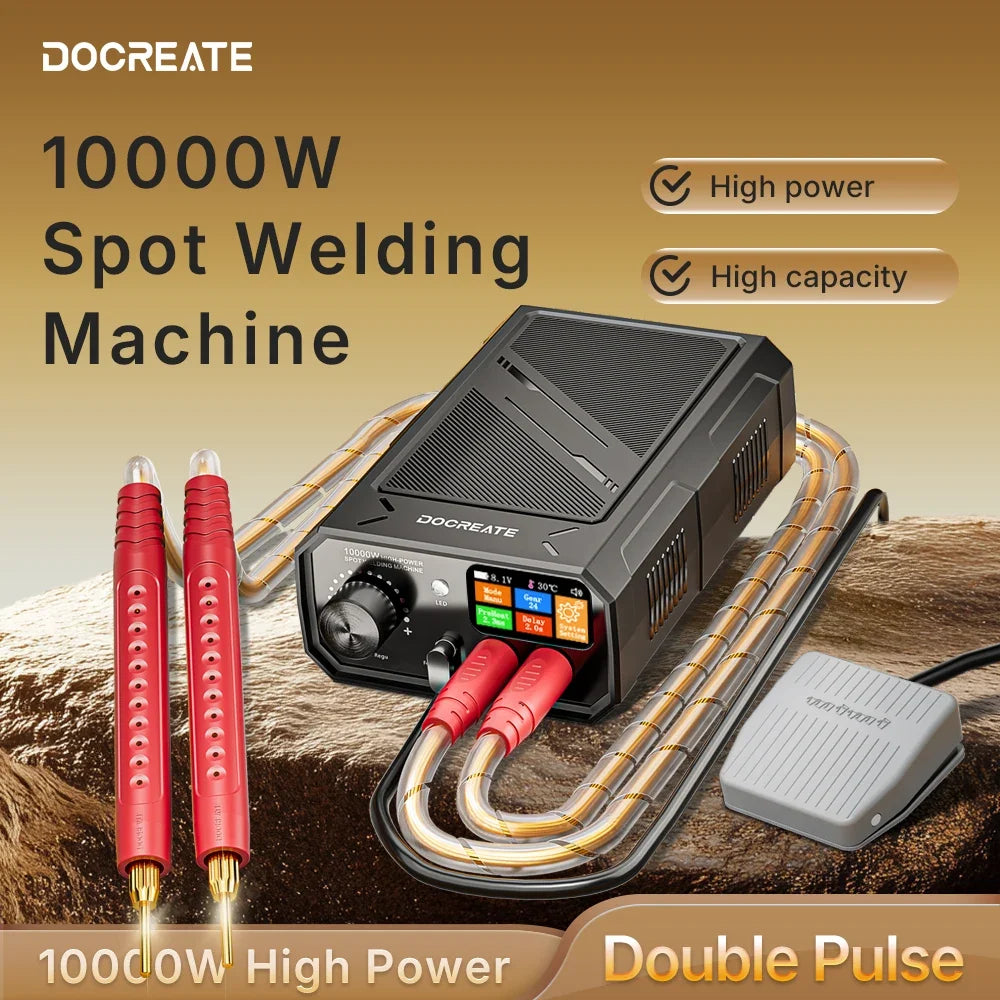

TK-20P Portable 10,000W Dual-Pulse Spot Welder Kit
The TK-20P is a professional-grade, foot-operated portable spot welder delivering up to 10,000W of output power with dual-pulse technology. Housed in a compact 149 × 98 × 52 mm body, this kit is ideal for battery assembly and repairs, mobile phone battery replacement, button cell welding, power tool repairs, and small-to-medium household appliance work. The colour TFT LCD screen and 18 adjustable power levels give you pinpoint control over every weld, whether you're working with pure nickel, nickel-plated strip, steel, iron, or copper.
Made in Mainland China. CE and RoHS certified.
Key Features

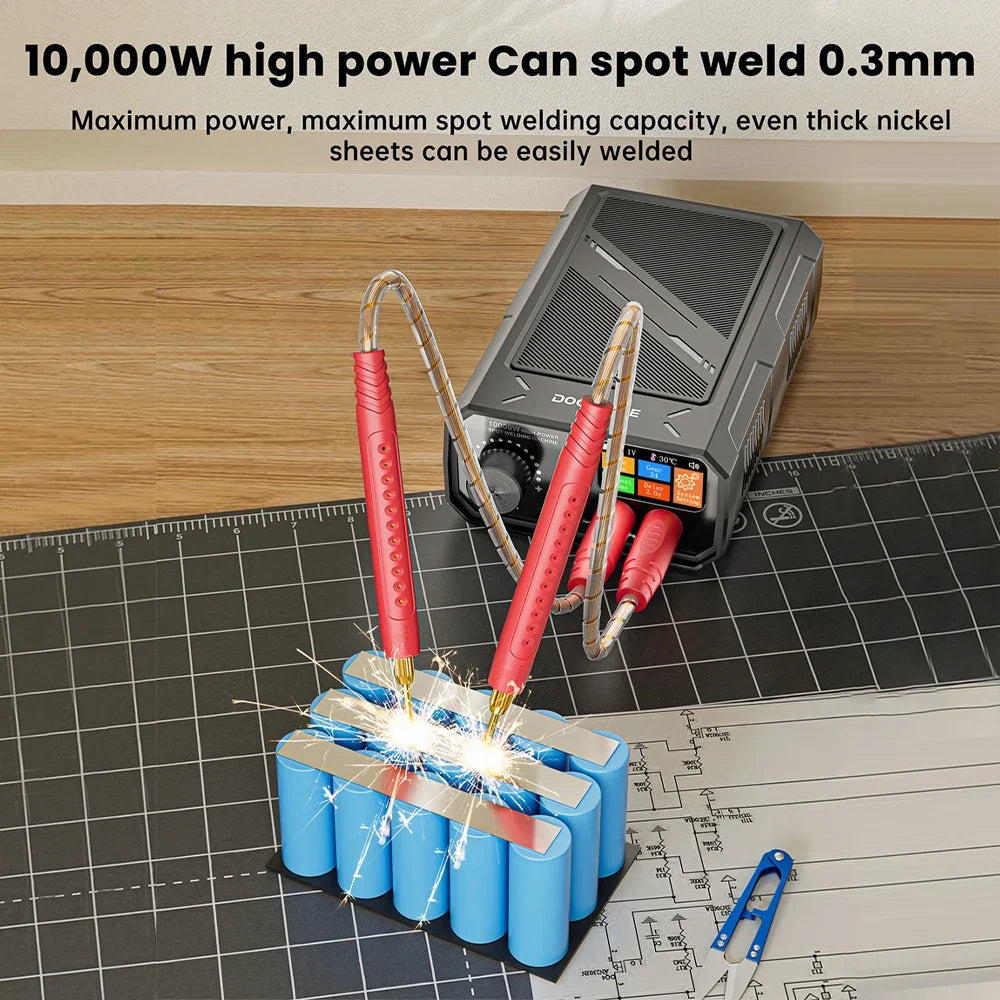

- 10,000W High Power Output: Up to 1,200A output current for rapid, precise welds on materials up to 0.3 mm (nickel-plated) or 0.15 mm (pure nickel).

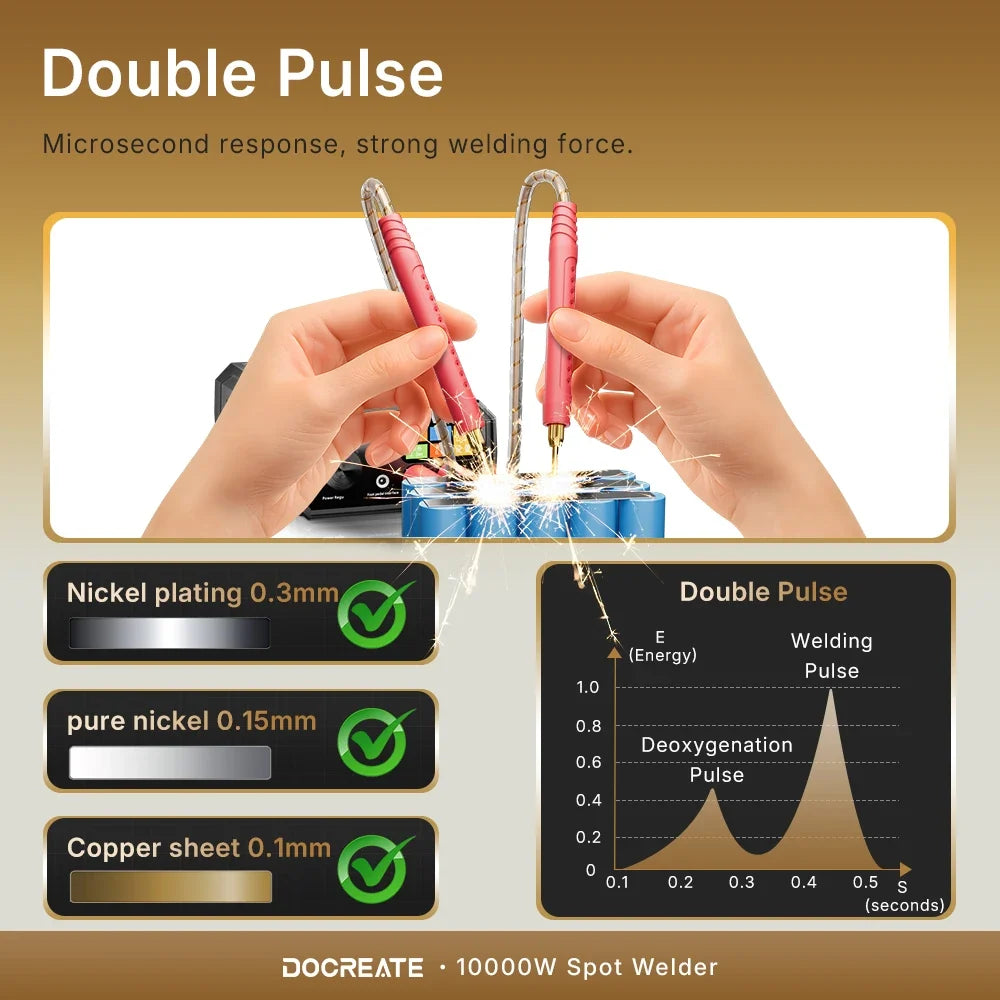

- Dual Welding Modes: Switch seamlessly between Automatic and Manual foot-pedal activation — hands-free triggering for consistent, repeatable results.
- 18 Adjustable Power Levels: Dial in exactly the right energy for every material and thickness using the intuitive rotary knob.
- 4 Welding Methods: Preheating, Intermittent, Power Level, and Trigger Time settings give you full flexibility for specialist welding tasks.

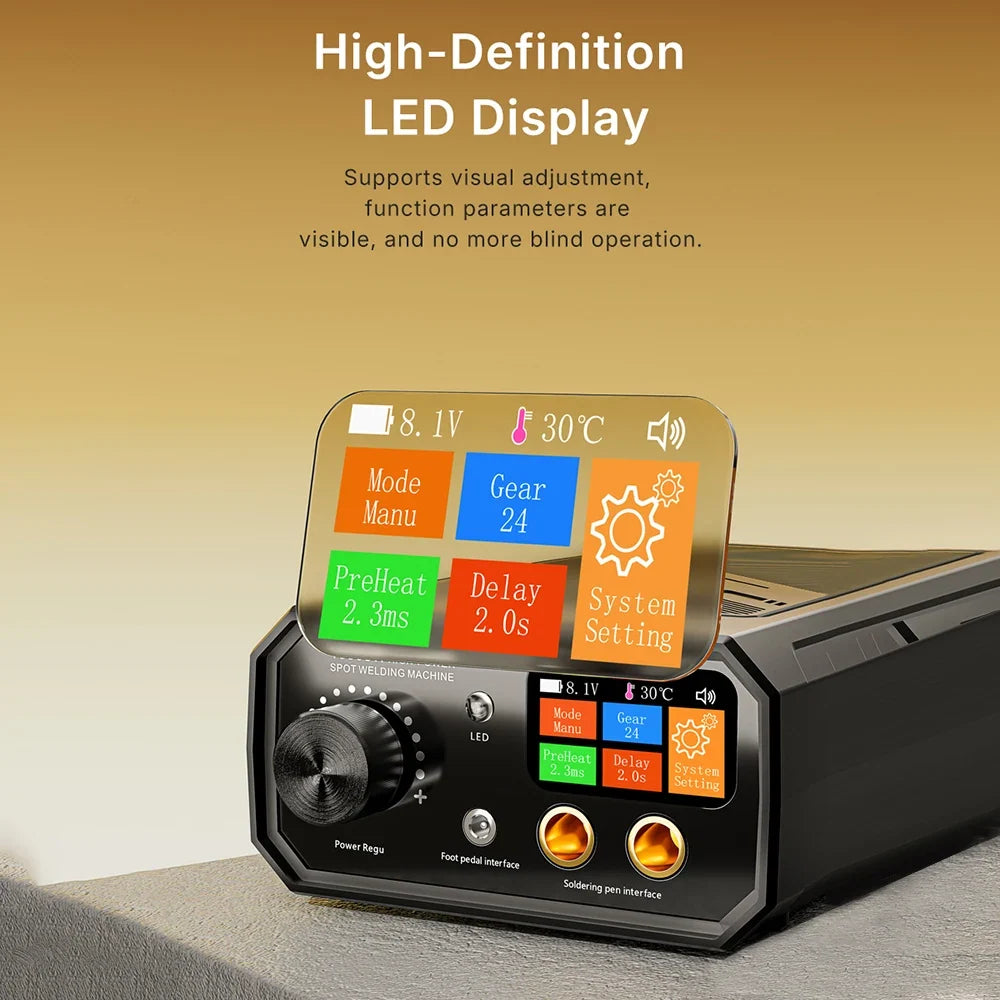

- Colour LCD Display: Clear TFT colour screen shows all parameters at a glance; supports Chinese/English language switching.
- Type-C Fast Charging: Dual 5,000 mAh batteries recharge quickly via the included Type-C cable (5V/1A input) — no proprietary charger needed.

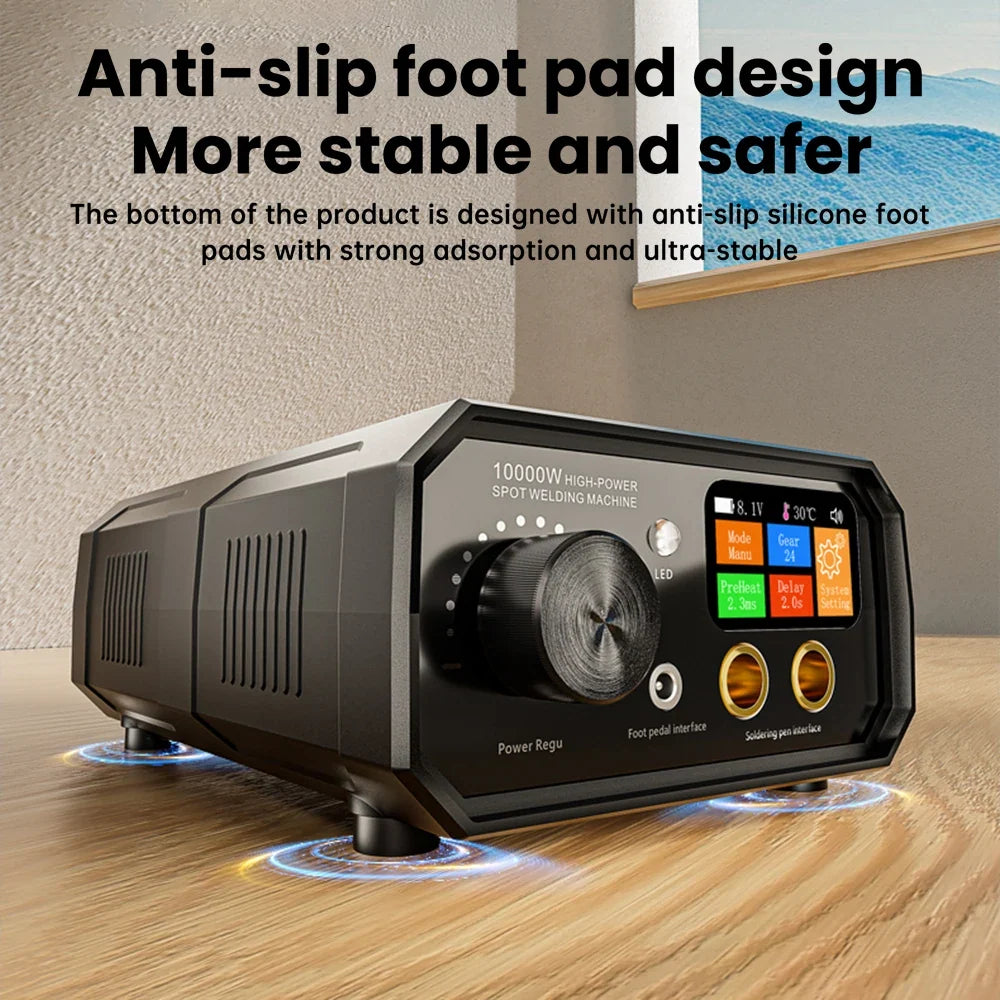

- Compact & Portable: Weighing just 980 g, the TK-20P is easy to carry to the bench or worksite.

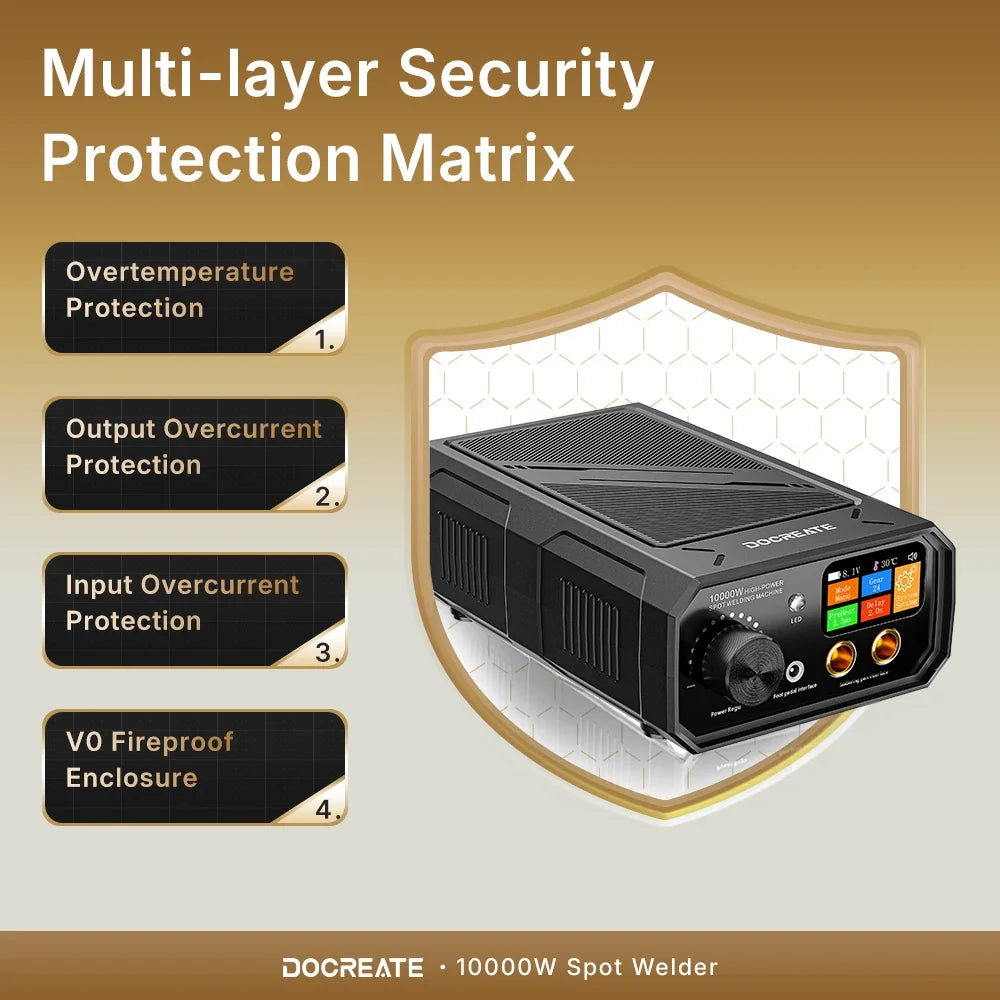

- CE & RoHS Certified: Meets international safety and environmental compliance standards.
Full Specifications
| Model | TK-20P |
| Output Power | 10,000W (MAX) |
| Output Current | 1,200A (MAX) |
| Output Voltage | 8.4V (MAX) |
| Input Voltage | 5V / 1A (Type-C) |
| Battery Capacity | 5,000 mAh × 2 |
| Power Levels | 18 adjustable levels |
| Max Welding Thickness | Nickel-plated: 0.3 mm | Pure nickel: 0.15 mm |
| Welding Modes | Automatic / Manual (foot pedal) |
| Welding Methods | Preheating, Intermittent, Power Level, Trigger Time |
| Display | Colour LCD (TFT) |
| Language | Chinese / English switchable |
| Dimensions | 149 × 98 × 52 mm |
| Weight | 980 g |
| Certifications | CE, RoHS |
| Origin | Made in Mainland China |

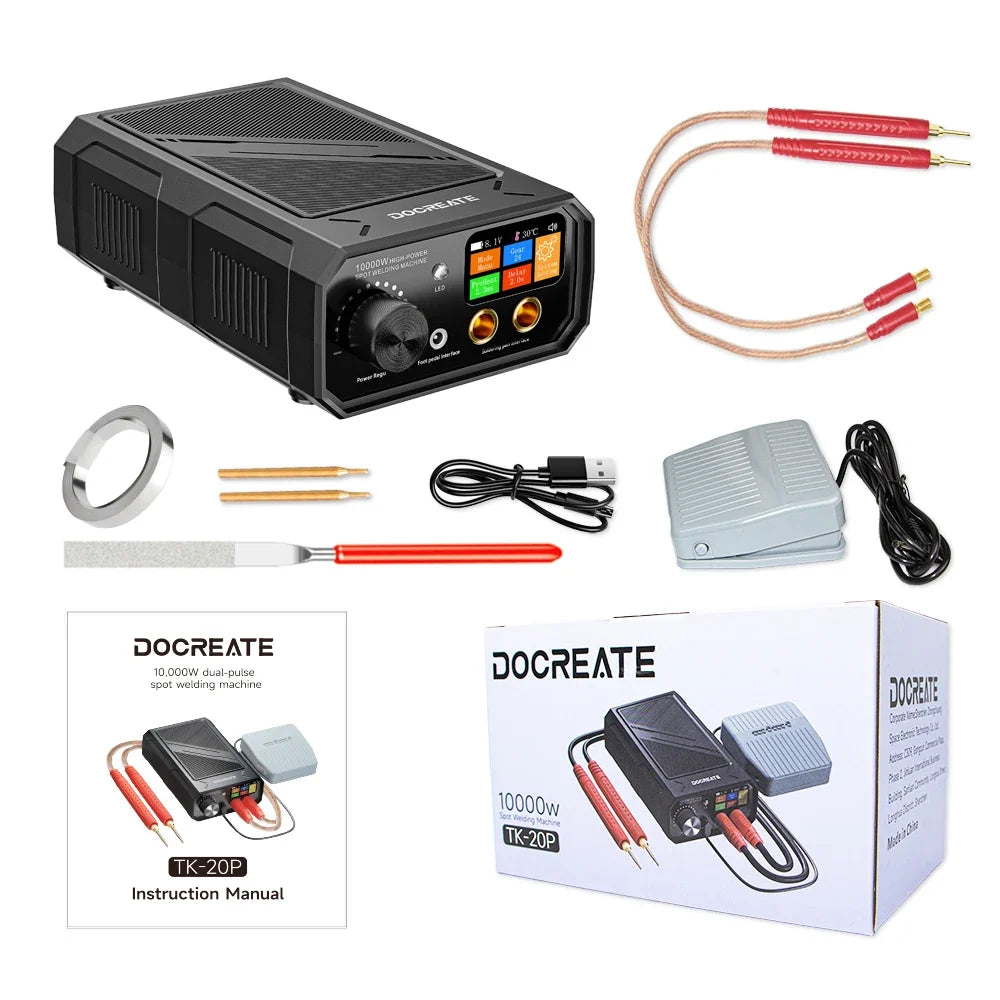

What's in the Box
- TK-20P Main Unit × 1
- Spot Welding Pen (with welding needle) × 2
- Spare Welding Needles × 2
- Nickel Plate × 1
- Type-C Charging Cable × 1
- Sandpaper × 1
- Foot Pedal × 1
Applications
The TK-20P is built for a wide range of professional and DIY tasks:
- Lithium-ion and 18650 battery pack assembly & repair
- Mobile phone battery tab welding & replacement
- Button / coin cell welding
- Power tool battery pack rebuilding
- Small & medium household appliance repair
- Electronics prototyping and workshop fabrication
Looking for other precision tools and accessories for your workshop? Browse our store for more useful finds. You might also enjoy the Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules for post-workshop recovery support, or check out our popular B&U 29mm Sinking Minnow Jerkbait Lure if you enjoy outdoor hobbies alongside your workshop projects.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What materials can the TK-20P spot welder weld?
A: The TK-20P dual-pulse spot welder is capable of welding pure nickel strip (up to 0.15 mm), nickel-plated strip (up to 0.3 mm), as well as steel, iron, and copper materials — making it highly versatile for battery tab welding and general electronics repair.
Q: How is the TK-20P spot welder charged?
A: The TK-20P charges via its built-in Type-C port (5V/1A). Simply connect the included Type-C charging cable to any compatible USB power source. Its dual 5,000 mAh battery configuration ensures extended working sessions between charges.
Q: What is the difference between Automatic and Manual modes on the TK-20P?
A: In Automatic mode, the welder triggers a pulse as soon as the welding pen makes contact with the workpiece. In Manual (foot pedal) mode, the foot pedal controls the firing — ideal for hands-free operation where you need both hands to position the workpiece or hold components steady for precision welding.
Q: Is the TK-20P suitable for beginners?
A: Yes. The colour TFT LCD display, clear parameter readouts, and 18 adjustable power levels make it straightforward to set up. The included sandpaper, nickel plate, spare needles, and welding pens mean beginners have everything needed to start welding right out of the box. Always follow appropriate workshop safety practices when operating high-current equipment.
