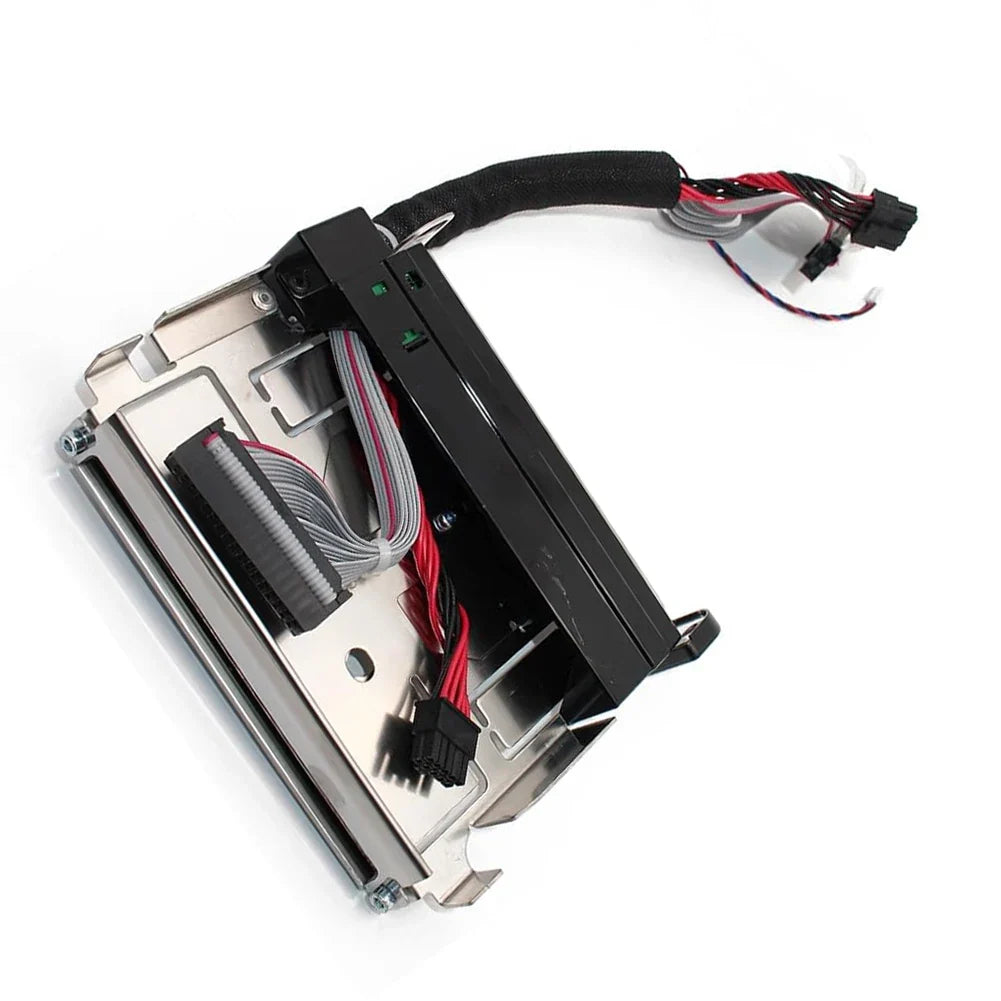

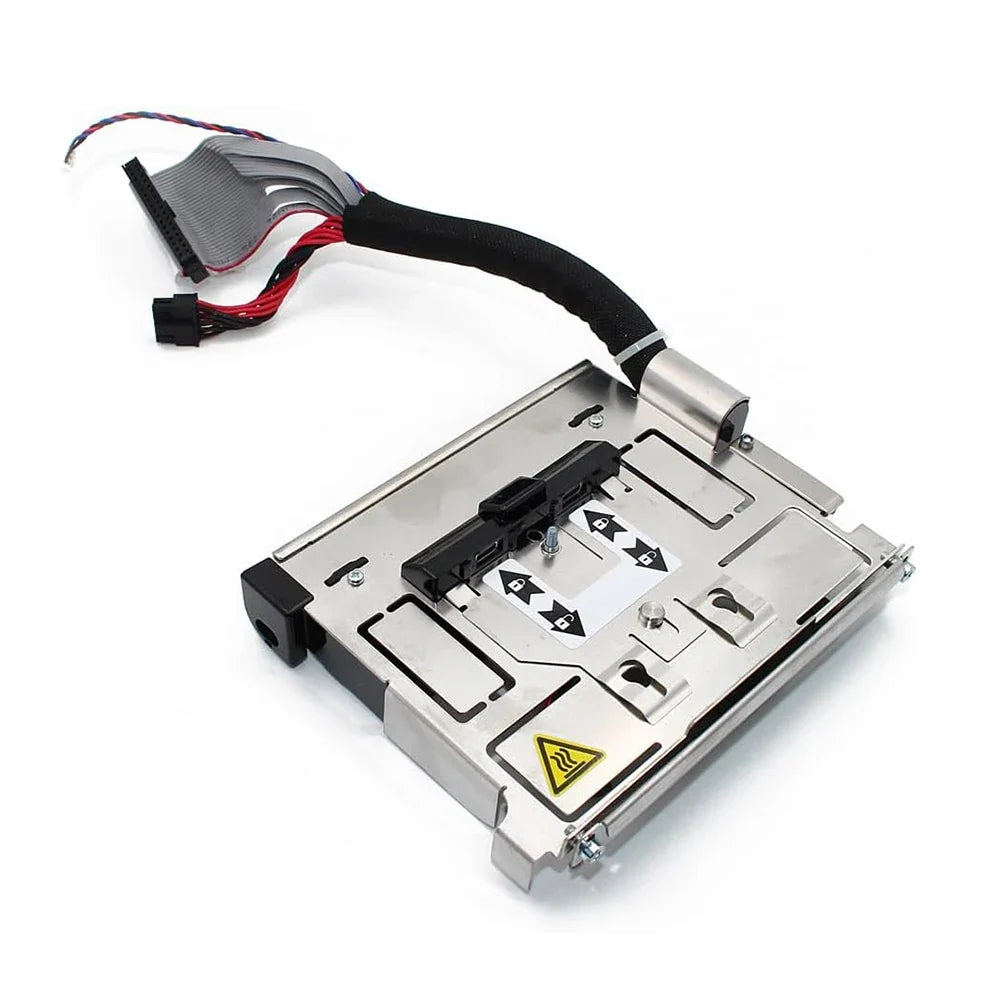

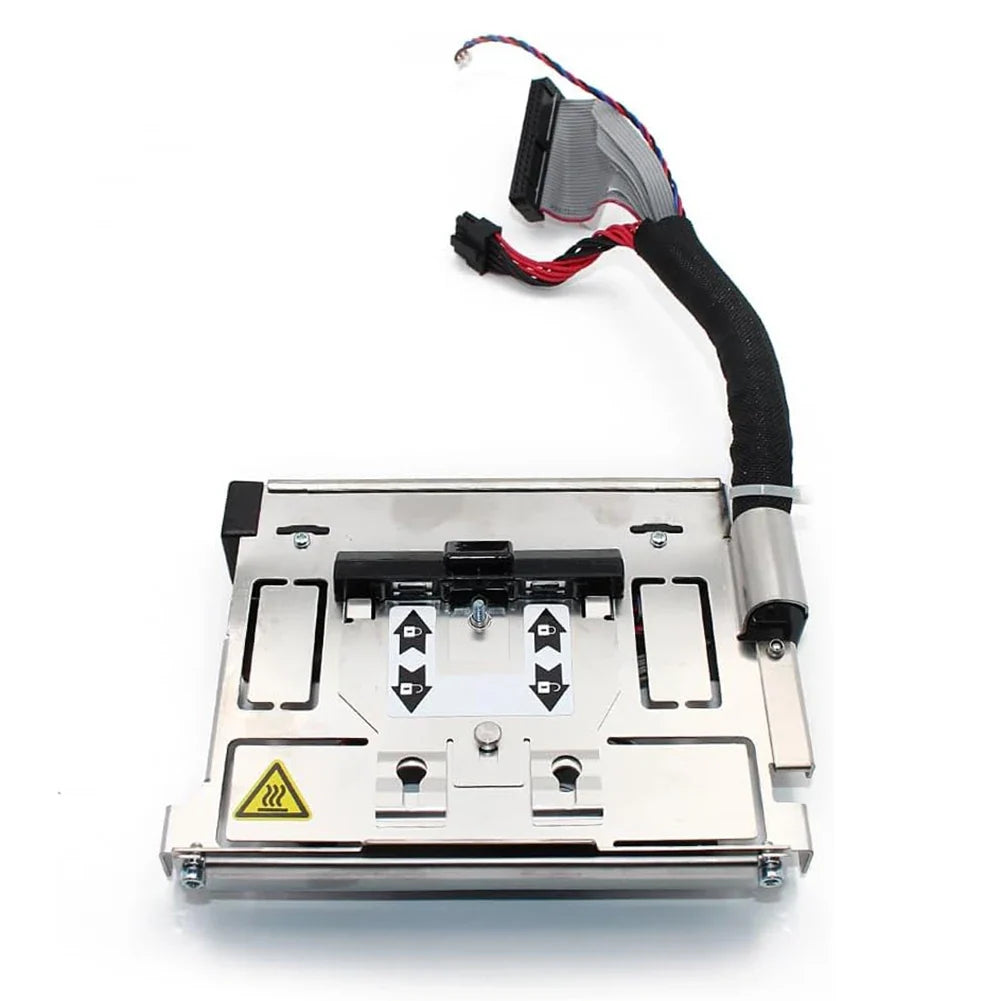

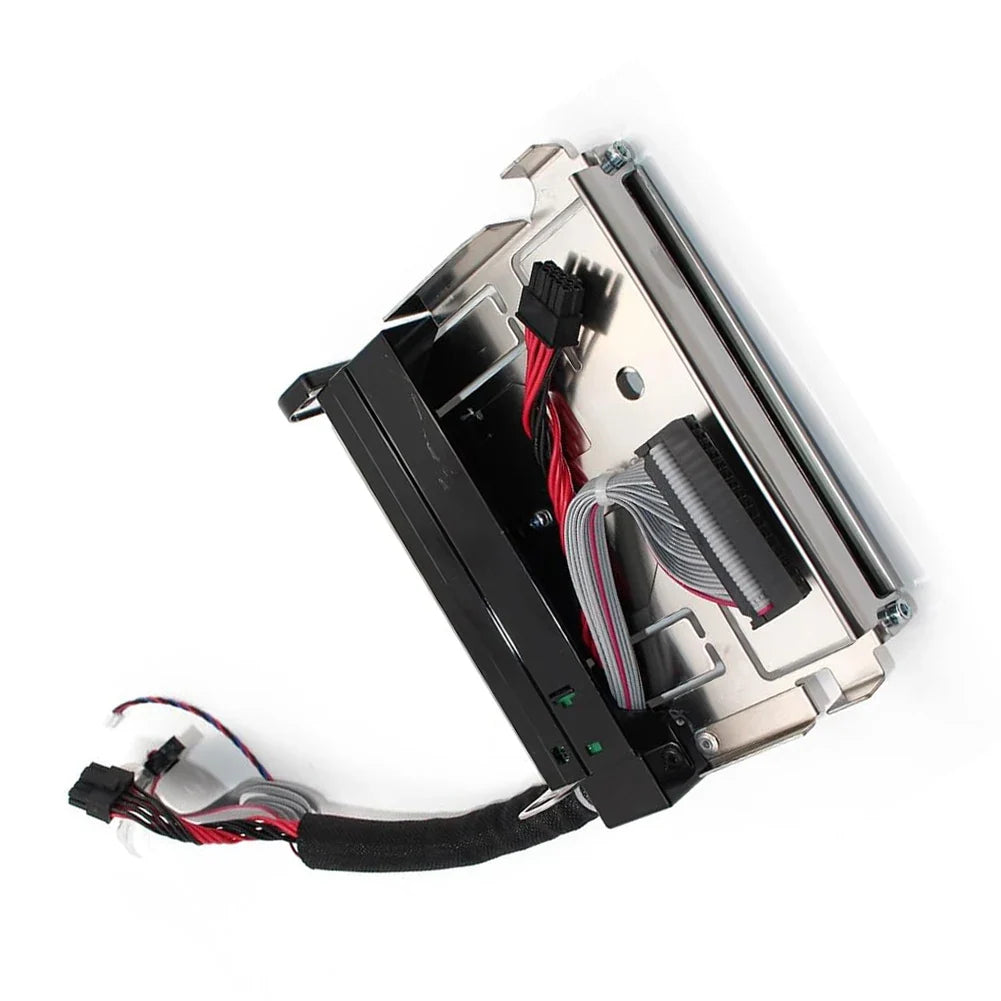

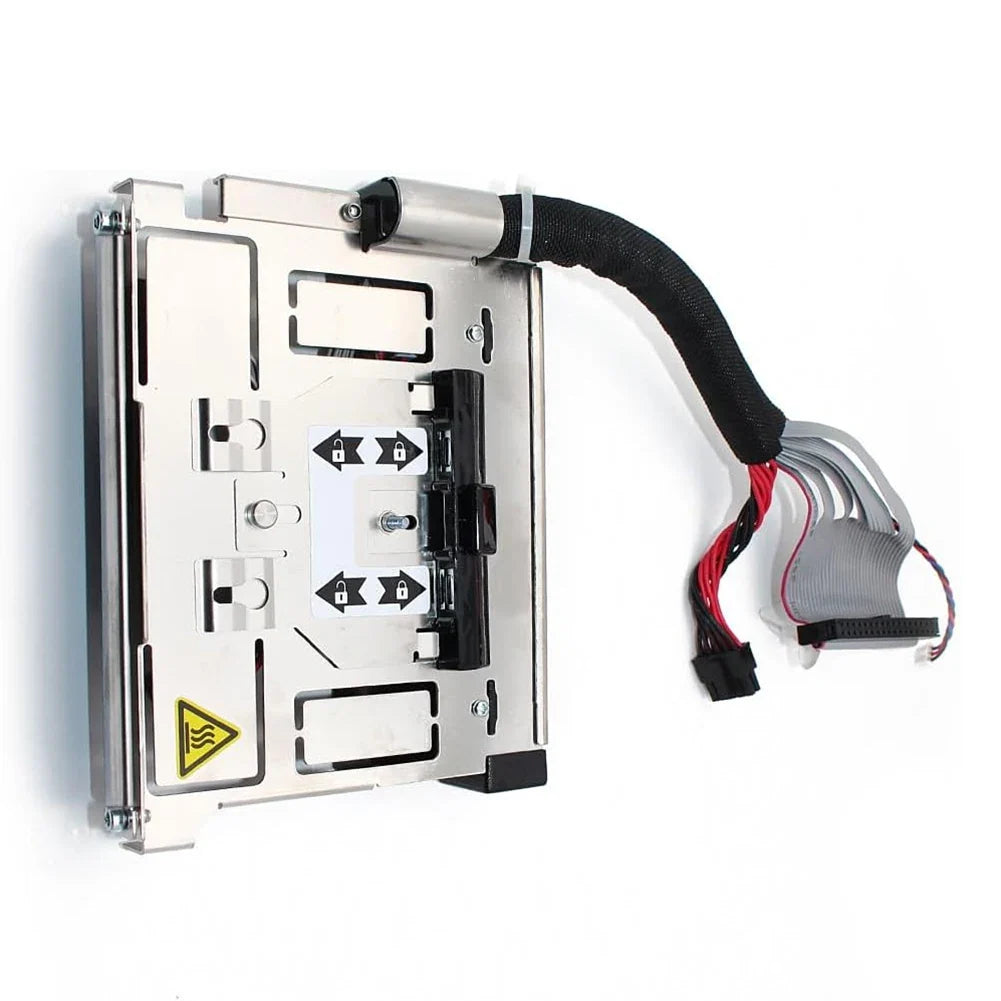

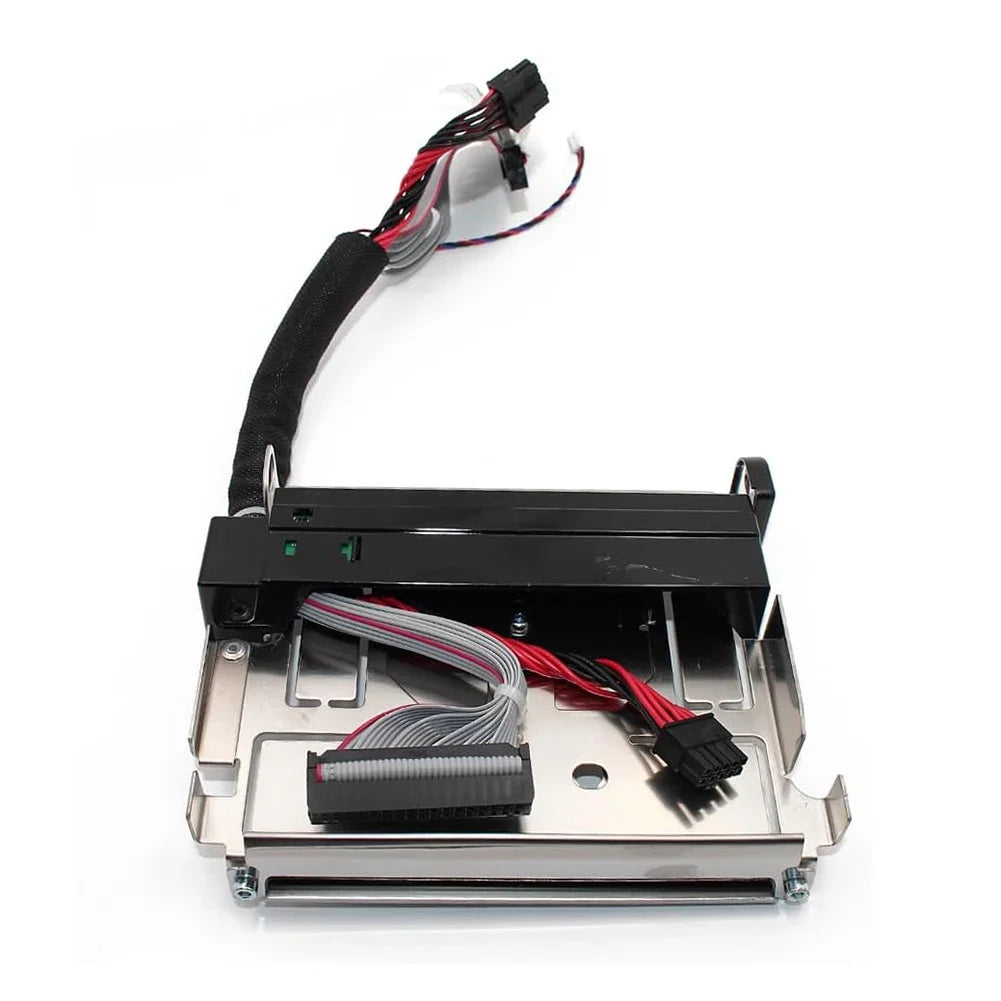

Zebra ZT411 Thermal Transfer Print Mechanism – Complete Assembly (P1105147-005)
Restore your Zebra ZT411 label printer to full working order with this complete thermal transfer print mechanism. Integrating the printhead, metal platen roller, and wiring harness into one ready-to-install assembly, this module is the efficient solution for technicians and maintenance teams dealing with malfunctioning print mechanisms, broken print lines, or damaged cable harnesses.
Key Features
- Complete All-in-One Assembly: Combines the printhead, metal roller, and wiring harness — no need to source individual components separately.
- Drop-In Replacement: Designed specifically for the Zebra ZT411 thermal label printer (Part No. P1105147-005) for a precise, reliable fit.
- Thermal Transfer Technology: Delivers sharp, monochrome label output for text and images on ribbon-compatible label media.
- Smooth Mechanical Operation: All moving parts operate without resistance; cables are intact, fully connected, and maintained at proper tension.
- Durable Construction: Built from metal and ABS plastic for long-lasting performance in demanding printing environments.
Specifications
| Part Number | P1105147-005 |
| Compatible Model | Zebra ZT411 Thermal Label Printer |
| Printing Technology | Thermal Transfer |
| Print Output | Monochrome |
| Media Type | Labels |
| Connectivity | USB |
| Material | Metal, ABS Plastic |
| Country of Origin | Made in Mainland China |
Installation Guidelines
- Power Off & Cool Down: Always disconnect printer power and allow the unit to cool completely before starting — the thermal printhead retains high heat during operation.
- Open the Casing: Follow the manufacturer's repair procedures to safely open the printer housing.
- Remove Old Mechanism: Carefully disconnect cables and remove the existing print mechanism assembly.
- Install New Module: Seat the replacement mechanism securely, reconnect all cables, and close the printer casing.
- Calibrate & Test: Load label stock and ribbon, close the cover, run a printer calibration, and print a test label to verify output quality (check for missing or broken lines).
Package Contents
- 1 × Thermal Transfer Print Mechanism (P1105147-005)
Notes
- Actual product color may vary slightly from on-screen images due to monitor settings and lighting conditions.
- Please allow minor measurement tolerances in listed dimensions.
You May Also Like
- Ancient Nutrition Multi Collagen Advanced Muscle 60 Capsules
- Women's High-Waist Elastic Skinny Jeans | Slim Stretch Denim
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Which printer models is the P1105147-005 thermal transfer print mechanism compatible with?
A: This print mechanism (Part No. P1105147-005) is specifically designed and compatible with the Zebra ZT411 thermal label printer. Always verify your printer's model and part number before purchasing to ensure a correct fit.
Q: Does this assembly include everything needed for a full mechanism replacement?
A: Yes. This is a complete all-in-one assembly that includes the printhead, metal platen roller, and wiring harness. You do not need to purchase these components separately — simply remove the old mechanism and install this module following the correct service procedure.
Q: What safety precautions should I take before replacing the print mechanism?
A: Before beginning any disassembly, disconnect the printer from its power source and allow it to cool completely. The thermal printhead retains significant heat after use — avoid touching it directly. Always follow the Zebra ZT411 service manual procedures for opening the printer casing safely.
Q: How do I verify the new print mechanism is working correctly after installation?
A: After installing the mechanism, load the appropriate label media and ribbon, then close the printer cover. Run a printer calibration and print a test label. Inspect the output for any broken lines, missing segments, or misalignment. A clean, complete test label confirms successful installation.
